Legend
1 Mounting brackets inserted into the slide rail
2 Slide rail release buon
3 Slide rail lock
4 Simultaneously push and hold the slide rail release buons on each
mounting bracket while y
ou push the Pilot into the rack. Continue pushing
the Pilot into the rack until the slide rail locks (on the front of the mounting
brackets) engage the slide rail assemblies until you hear an audible click.

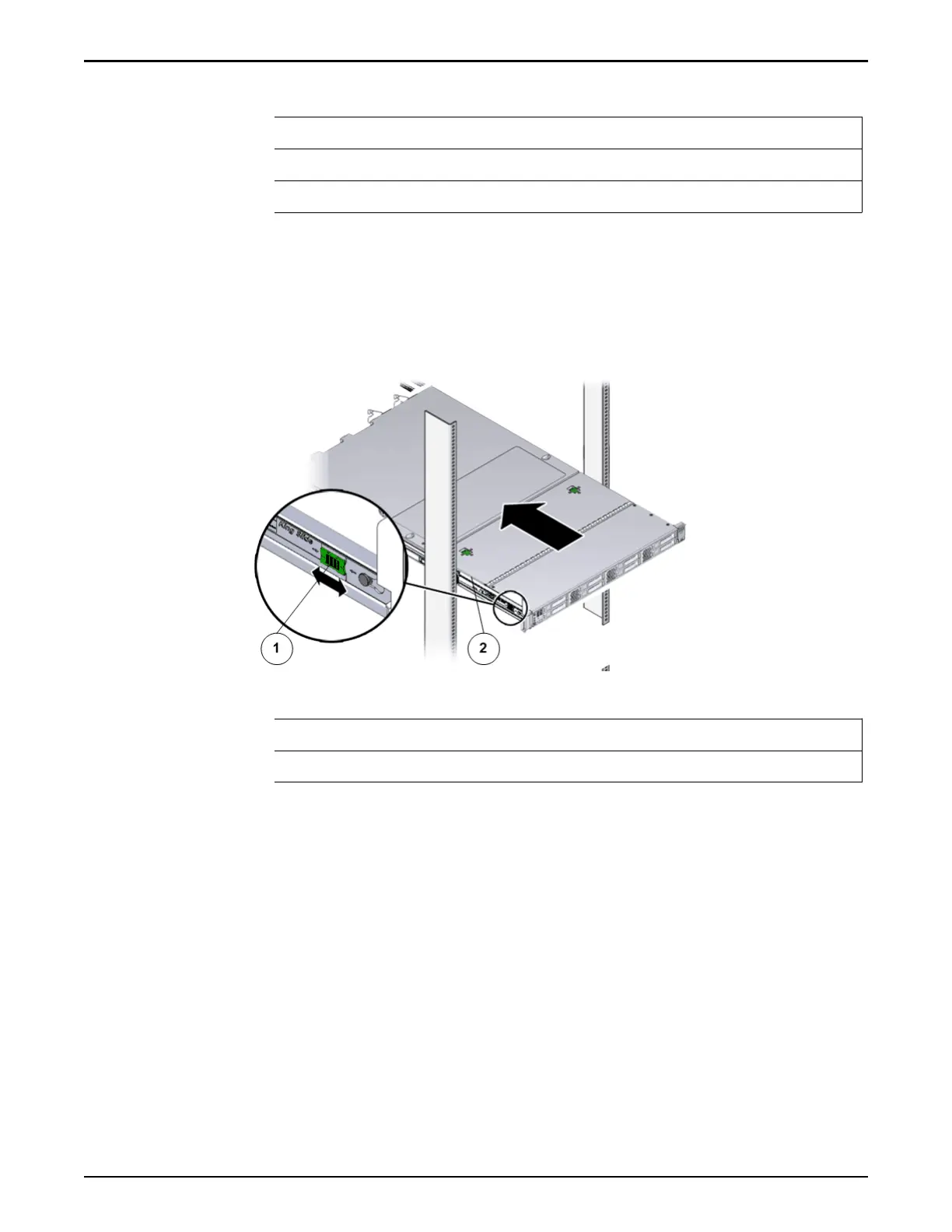

Figure 58: Pilot inserted into the rack
Legend
1 Slide rail buon
2 Mounting bracket
Caution: V
erify that the Pilot is securely mounted in the rack and that the
slide rail locks are engaged with the mounting brackets before you install
the cable management arm.
Verify Operation of the Slide Rails and the CMA
Prerequisites:
•
Two people are needed to verify the operation of the slide rails and the cable
management arm (CMA): one to move the Pilot in and out of the rack and
one to observe the cables and CMA.
• To reduce the risk of personal injury, stabilize the expansion rack cabinet and
extend all anti-tilt devices before extending the Pilot from the rack.
Oracle FS1–2 Global Procedures
88
