Oracle FS1-2 - Figure 62: Remove Air Filter; Figure 63: Insert Air Filter; Insert an Air Filter

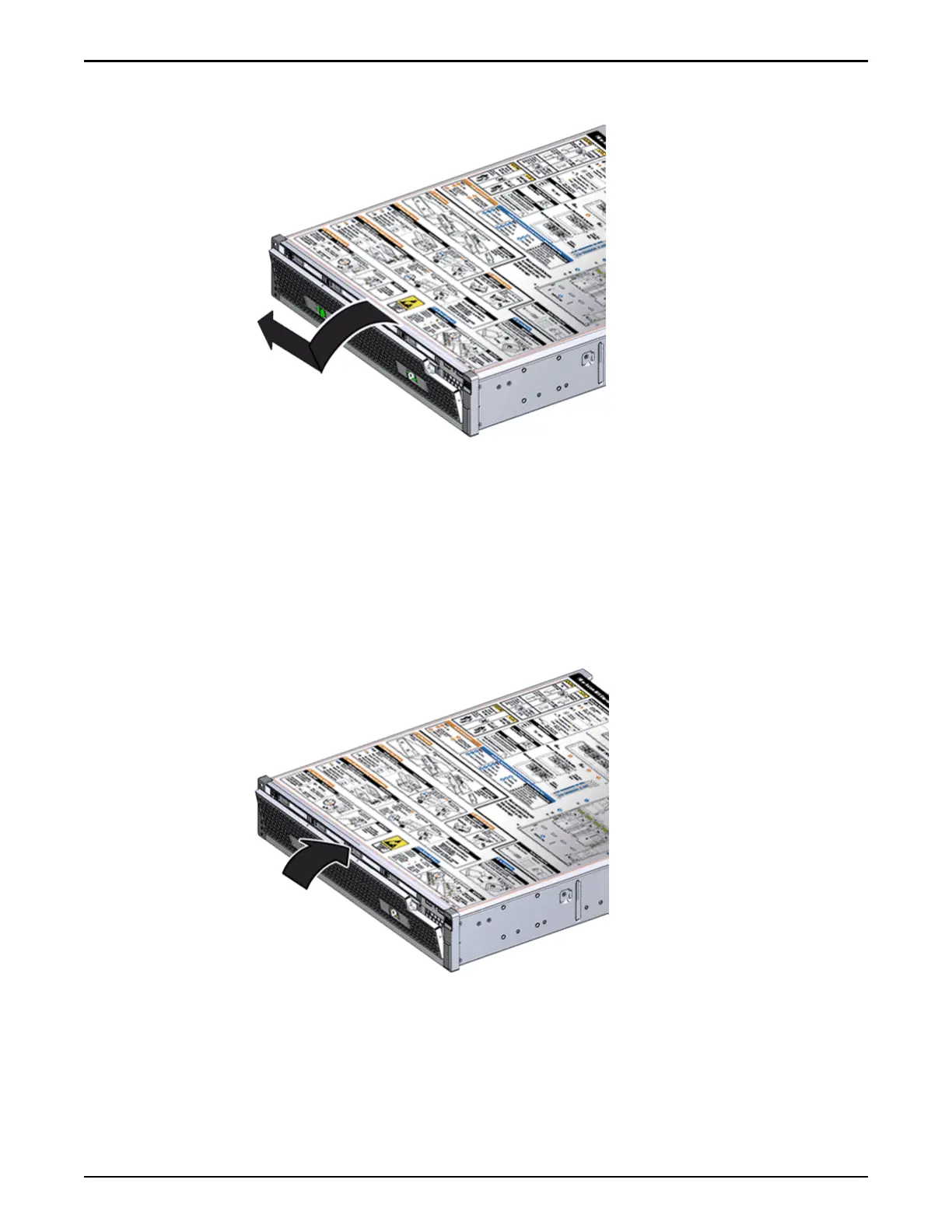

Figure 62: Remove air filter
4 Set the air lter aside.
Insert an Air Filter
1 Tilt the top of the air lter slightly tow
ards you and insert the boom two
hooks into the mounting tabs.
Figure 63: Insert air filter
Important: Ensure that nothing interferes with the edges of the air lter and
that the air lter seats properly
.
2 Press the top corners of the air lter to engage the top two air lter hooks
with the top rail tabs.
3 Press both air lter release tabs until they lock in place.
Controller Replacement Procedures
92
