Oracle FS1-2 User Manual

Legend
1 Fan module tab
2 Fan modules
3 Fan door
Note: When removing a fan module, do not rock it back and forth. Rocking
the fan module can cause damage to the motherboard connectors.
2
Set the fan module aside on an antistatic mat.
Note: When replacing a fan module, do not service any other components
unless the system is shut down and the power cords are removed.
Insert a Fan Module
1 Unpack the component from its shipping carton.
Note: Place the component on an antistatic mat if it must be set aside for
any reason.
2 Grasp the fan module tabs and press the fan down rmly into the fan
module compartment.

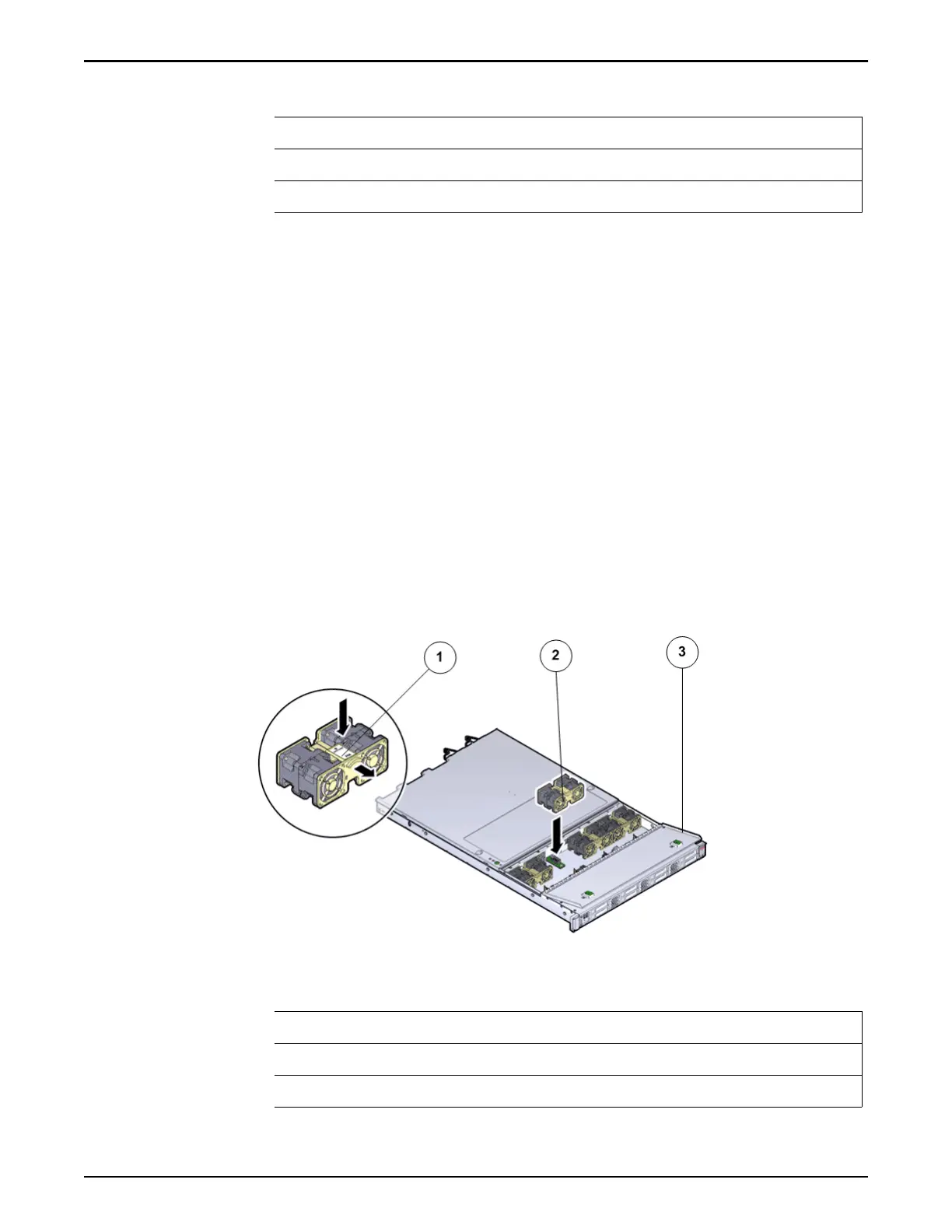

Figure 184: Fan module insertion
Legend
1 Fan module tab
2 Fan modules
3 Fan door
Pilot Replacement Procedures
219
