Table 2: Controller components and descriptions (continued)
Controller component Type Hot
serviceable
HBA [Sun Storage: 16 Gb/s FC optics] CRU No
HBA [Sun Storage: 10 Gb/s FCoE optics][iSCSI] CRU No
HBA [dual-port 10 GbE PCIe 2.0 Copper and Fiber SFP+] CRU No
HBA [8 Gb/s Dual-Port FC PCI-e] CRU No
Heat sink FRU No
LED alarm board assembly FRU No
Motherboard cable kit FRU No
Power distribution board (PDB) FRU No
Power supply CRU Yes
Rail kit assembly FRU No
Riser board assembly CRU No
SAS HBA (PCIe-3, 6 Gb/s, 4x4 port) CRU No
Some FRUs and CRUs can be accessed from the front or back of the Controller.
For replacing other FRUs and CRUs, y
ou must open the top cover of the
Controller. The following gure shows the components located at the back of the
Controller.

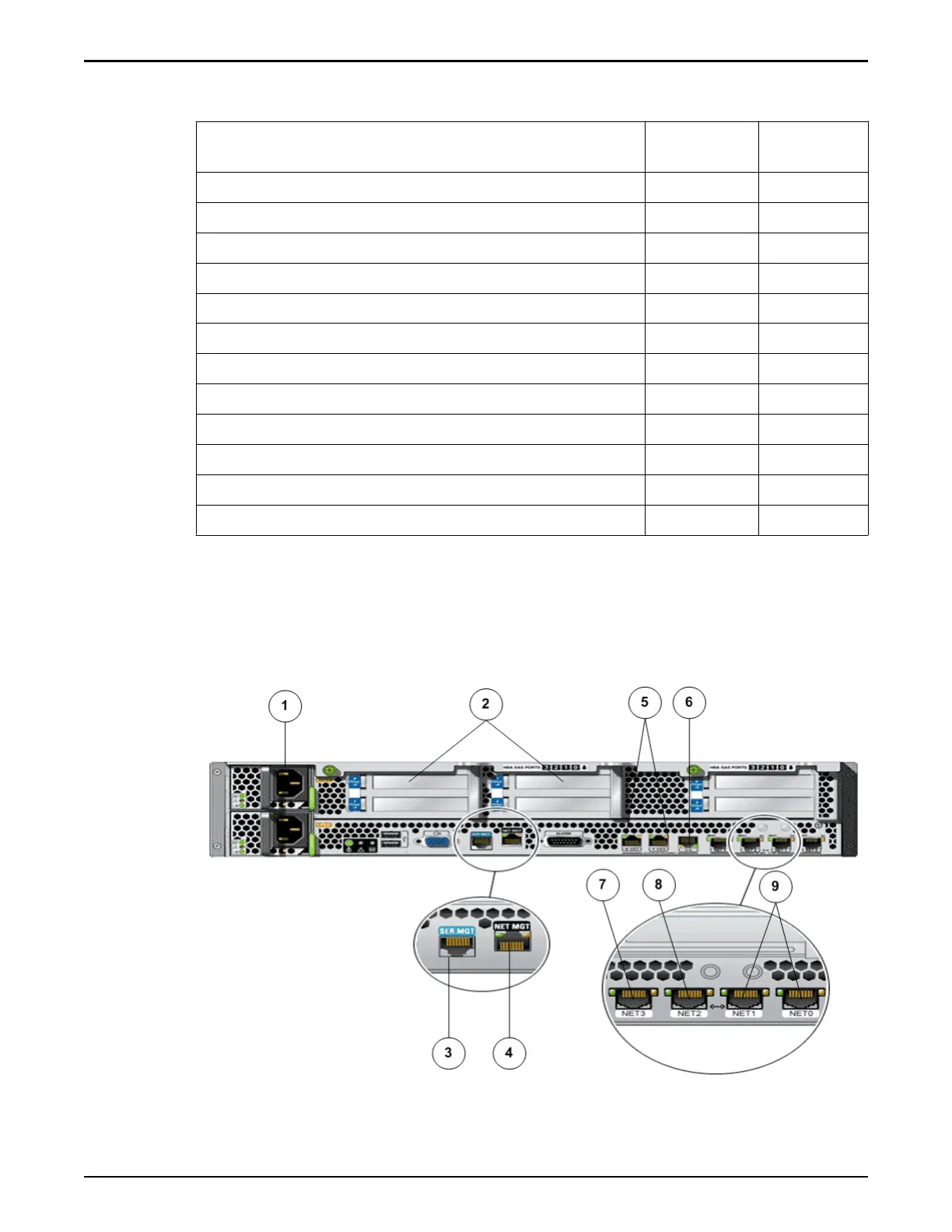

Figure 1: Controller back view
