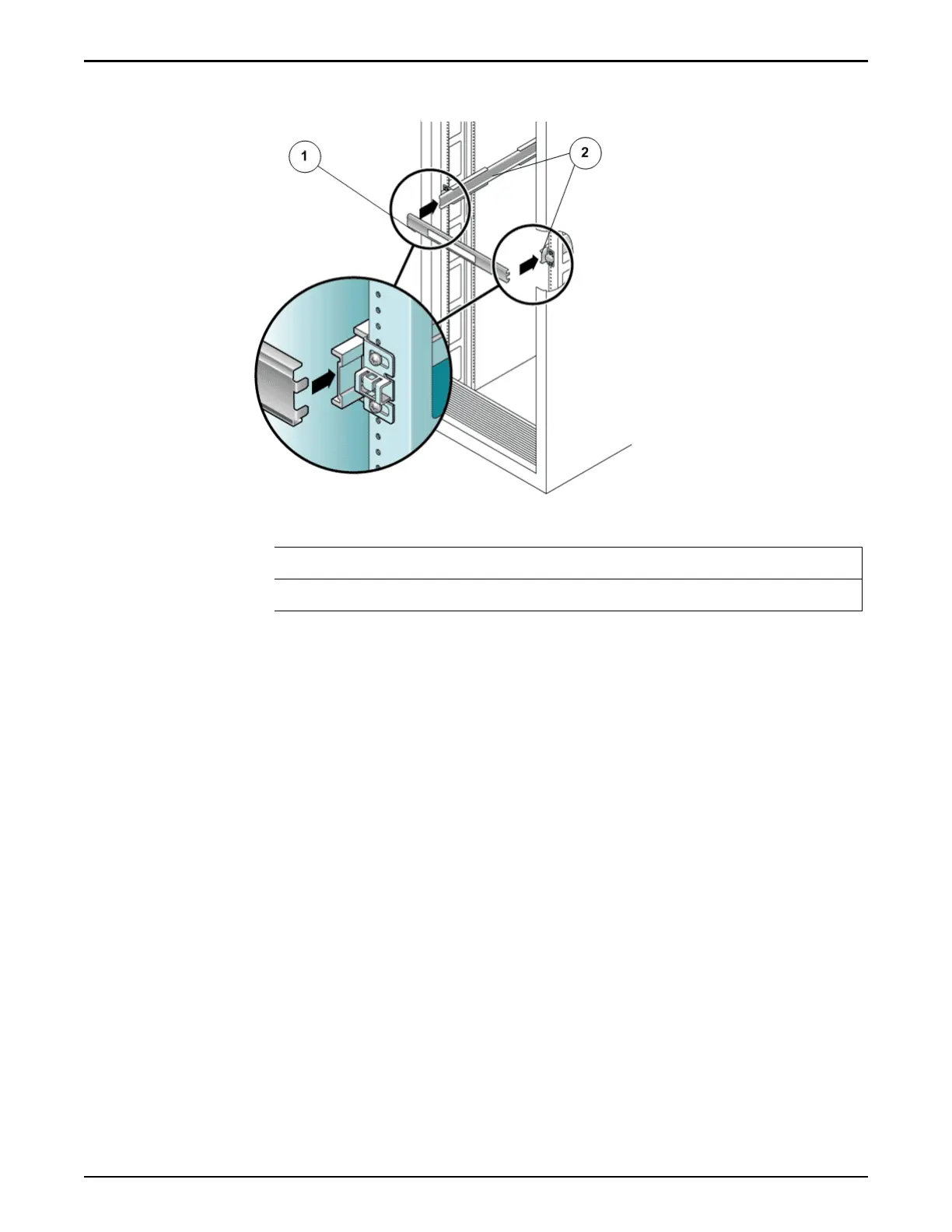

Figure 20: Slide rail spacing tool
Legend
1 Spacing tool
2 Slide rails
Tip: At the front of the rack, plug the left side of the tool into slots at the
end of the left rail. Insert the right side of the tool into the front end of the
right rail, while sliding the end of the rail to the right or left as needed to
allow the ends of the tool to enter the ends of both rails. The distance
betw
een the rails is now equal to the width of the Controller with
mounting brackets.
10 Tighten the screws to lock the front ends of the rails in place.
11 Repeat the steps for the back ends of the rails.
12 Deploy the anti-tilt mechanism on the rack, if any.
Caution: The weight of the Controller on extended slide rails can be
enough to overturn a rack.
13 Insert the ends of the mounting brackets into the sliding rails.
Oracle FS1–2 Global Procedures
53
