Legend
1 Push buon to release top cover
2 Grooves to slide out top cover
2 Lift the cover o the Pilot chassis and set it aside.
Remove a Pilot DIMM
1 Remove the DIMM by pressing down on the tabs on both sides of the
DIMM to unlock it from the slot.

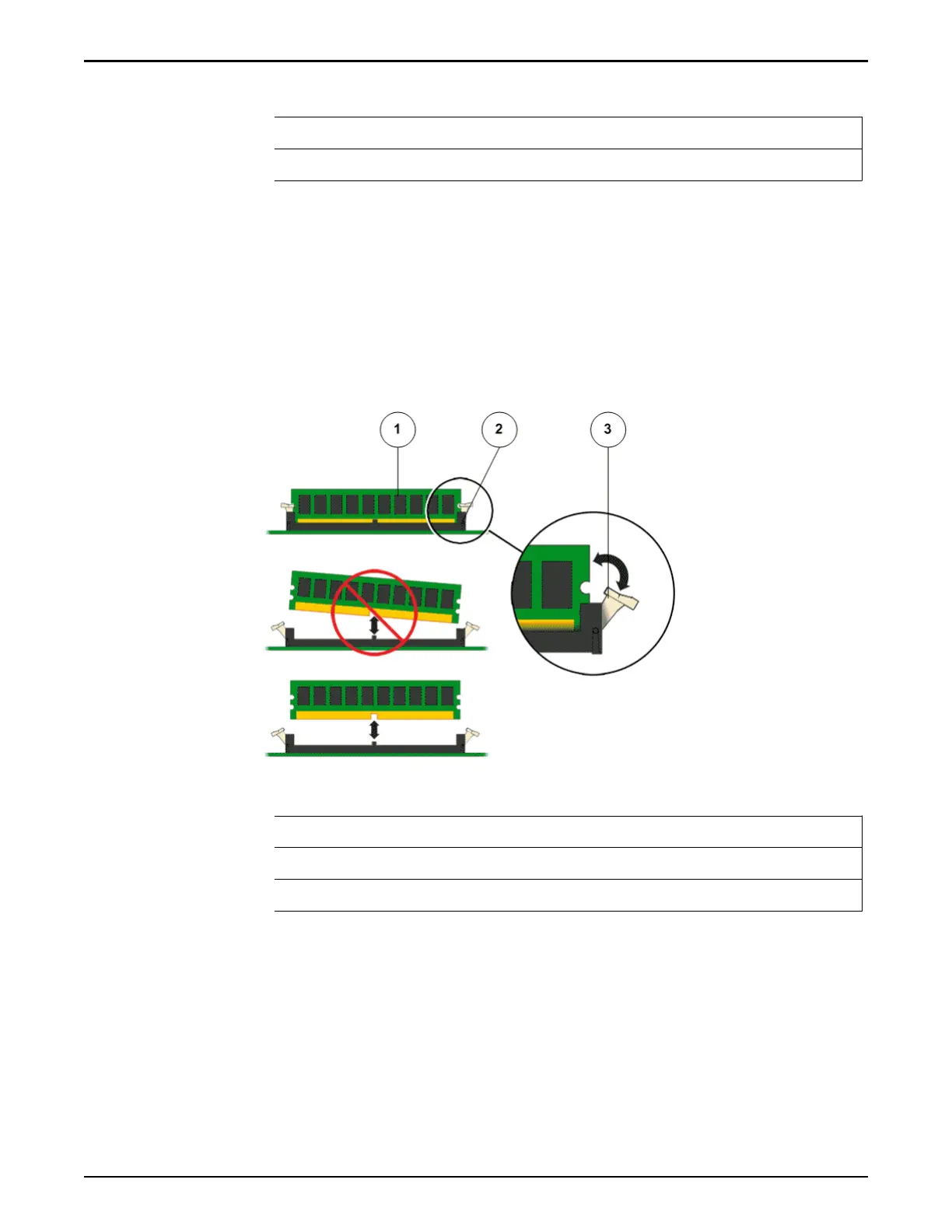

Figure 191: Pilot DIMM removal
Legend
1 DIMM
2 DIMM slot
3 DIMM tab
Note: While inserting or removing DIMMs, ensure that there is no
interference with the cables. Pulling or pressing down on the cables might
cause damage to the cables during the replacement procedure.
2
Lift out the DIMM and set aside on an antistatic mat.
Note: Visually inspect the DIMM slots, and the DIMM, for physical
damage by checking for cracked or broken plastic in the slot.
Note: Sometimes DIMMs might fault because of dust or improper
alignment or damaged slots. Use only compressed air to dust DIMMs.
Pilot Replacement Procedures
227
