Caution: Close the Pilot fan door within 60 seconds to maintain adequate
airow to properly cool the serv
er.
Open Pilot Top Cover
1 Press down on the push buon on the Pilot top cover to release the top
cover and use the recessed areas to slide the top cover toward the back of
the Pilot about 0.5 inches (12.7 mm).
Caution: Before removing the top cover of the Pilot, power o the Pilot
using Guided Maintenance. Removing the Pilot top cover before powering
o the Pilot might cause damage to the operating system on the Pilot.
Tip: Slide out the Pilot top cover by pressing down on the grooves located
on both sides of the cover.

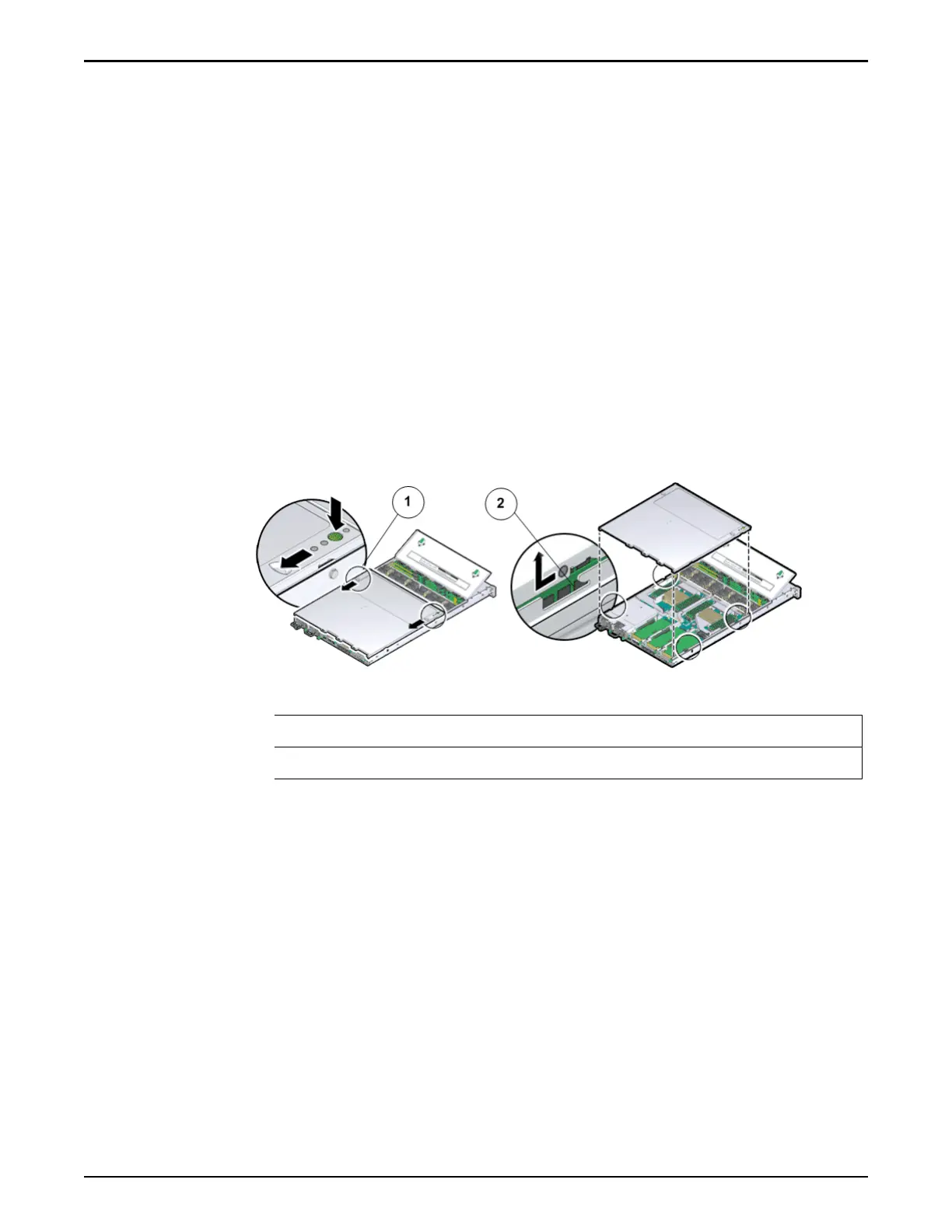

Figure 170: Pilot top cover removal
Legend
1 Push buon to release top cover
2 Grooves to slide out top cover
2 Lift the cov
er o the Pilot chassis and set it aside.
Remove a Riser
1 Press on the retention clip that secures faceplate of the riser and release the
riser from the Pilot motherboard.
Note: There are three riser board assemblies inside the Pilot chassis. The
SAS HBA is located on the third riser and the other risers are empty.
Caution: Do not disconnect the SAS cable from the internal SAS HBA until
after you have removed the riser from the Pilot.
2 Carefully pull up the PCIe riser lever on the riser to release the riser and
HBA card (if any).
Pilot Replacement Procedures
203
