Table 36: Drive Enclosure LED status and description (operator panel)
LED LED color Status
System power indicator Green The status is normal.
Module fault indicator Amber A module fault is present.
Locate indicator White The DE is located.
LED display Green number between 01
and 30
The numeric identier of a
DE is display
ed.
Related Links
Oracle FS System LEDs
Power Cooling Module LED Indicators
The LED indicators on the pow
er cooling modules provide power activity status,
fan and temperature fault conditions, and rmware upgrade status.

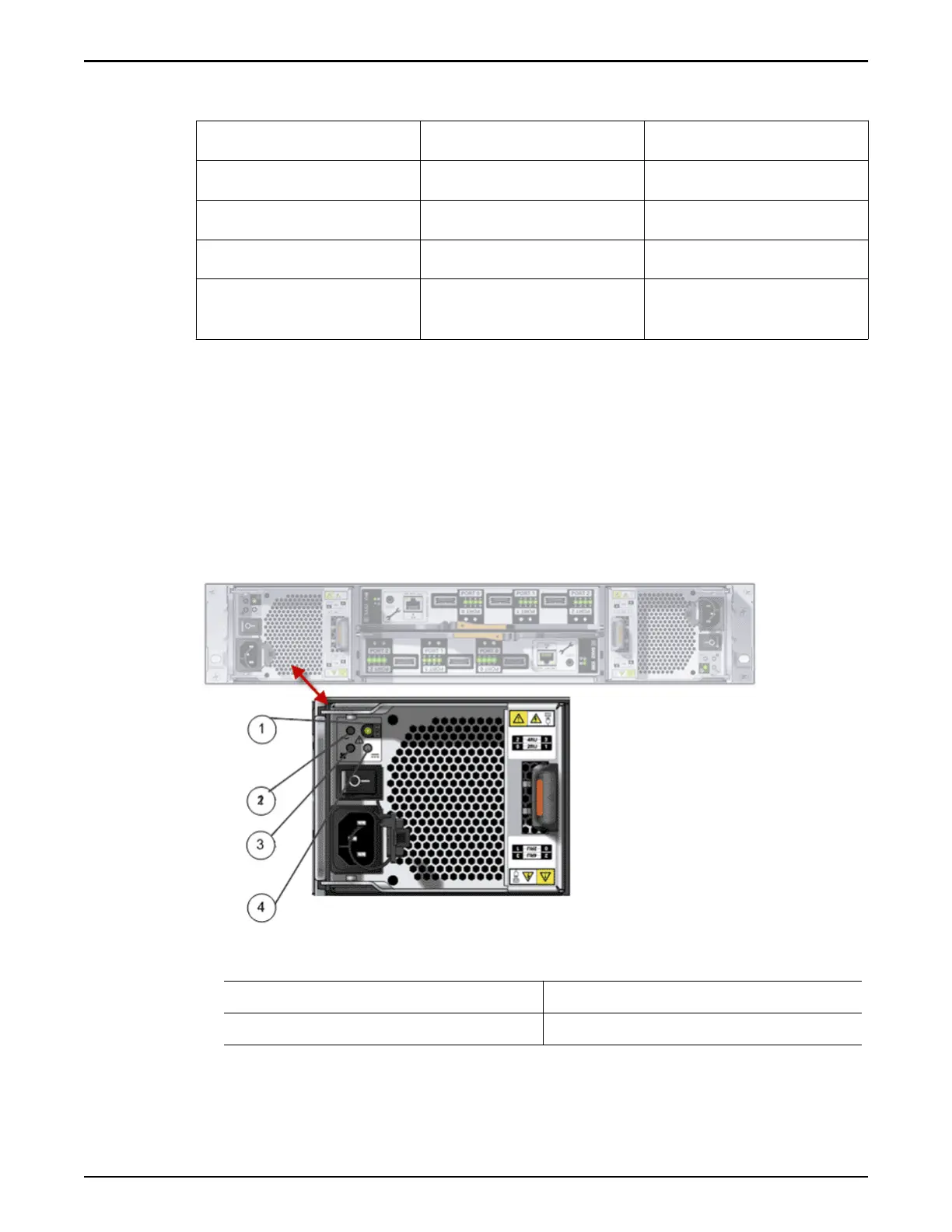

The following gure shows the power cooling module LEDs.
Figure 199: Power cooling module LEDs
Legend
1 Status indicator 3 Fan fail indicator
2 AC fail indicator 4 DC output fail indicator
The following table provides status information on the power cooling module
LEDs.
Oracle FS System LED Status
252
