Oracle FS1-2

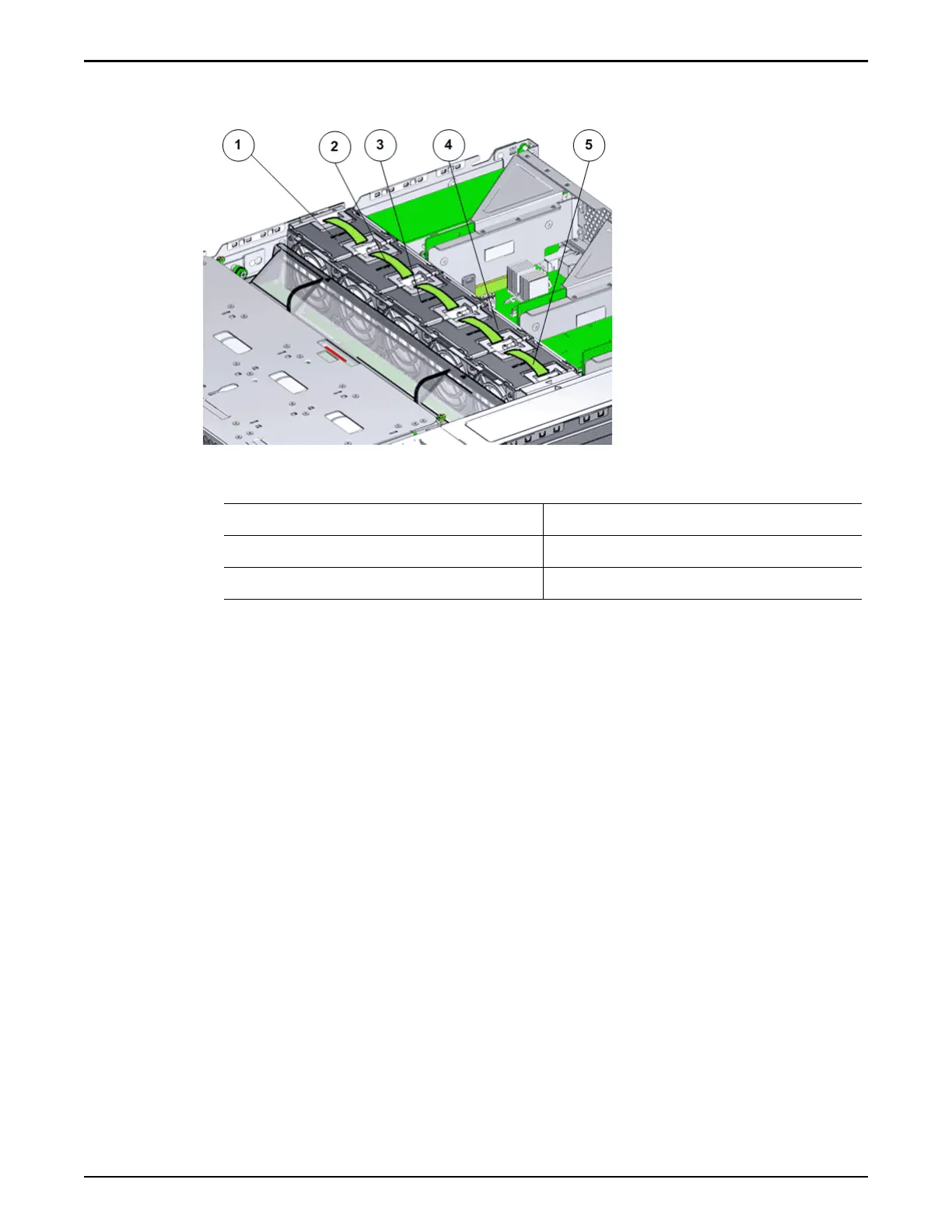

Figure 65: Fan module location
Legend
1 Fan module-0 2 Fan module-1
3 Fan module-2 4 Fan module-3
5 Fan module-4
Note: The fan modules can be accessed only after removing the top cov
er over
the Controller chassis.
Note: To replace a fan module, you do not need to remove the Controller from
the rack but extend it along the Controller rails using the cable management arm
(CMA).
Note: Ensure that all power is removed from the Controller before replacing the
fan module. Disconnect the power cables before performing the fan module
replacement procedure.
Note: For fan replacement, the Replaceable Unit list displays the names of each
fan. Each power supply contains one fan, and each fan module contains two fans.
If a fan fails in a power supply, replace the power supply. If a fan fails in a fan
module, replace the fan module. The following list identies the names of the
fans and the corresponding customer replaceable unit (CRU).
If the following fan fails Replace the following CRU
Fan 0
Power supply 0
Fan 1
Power supply 1
Fans 2, 3
Fan module 0
Controller Replacement Procedures
94
