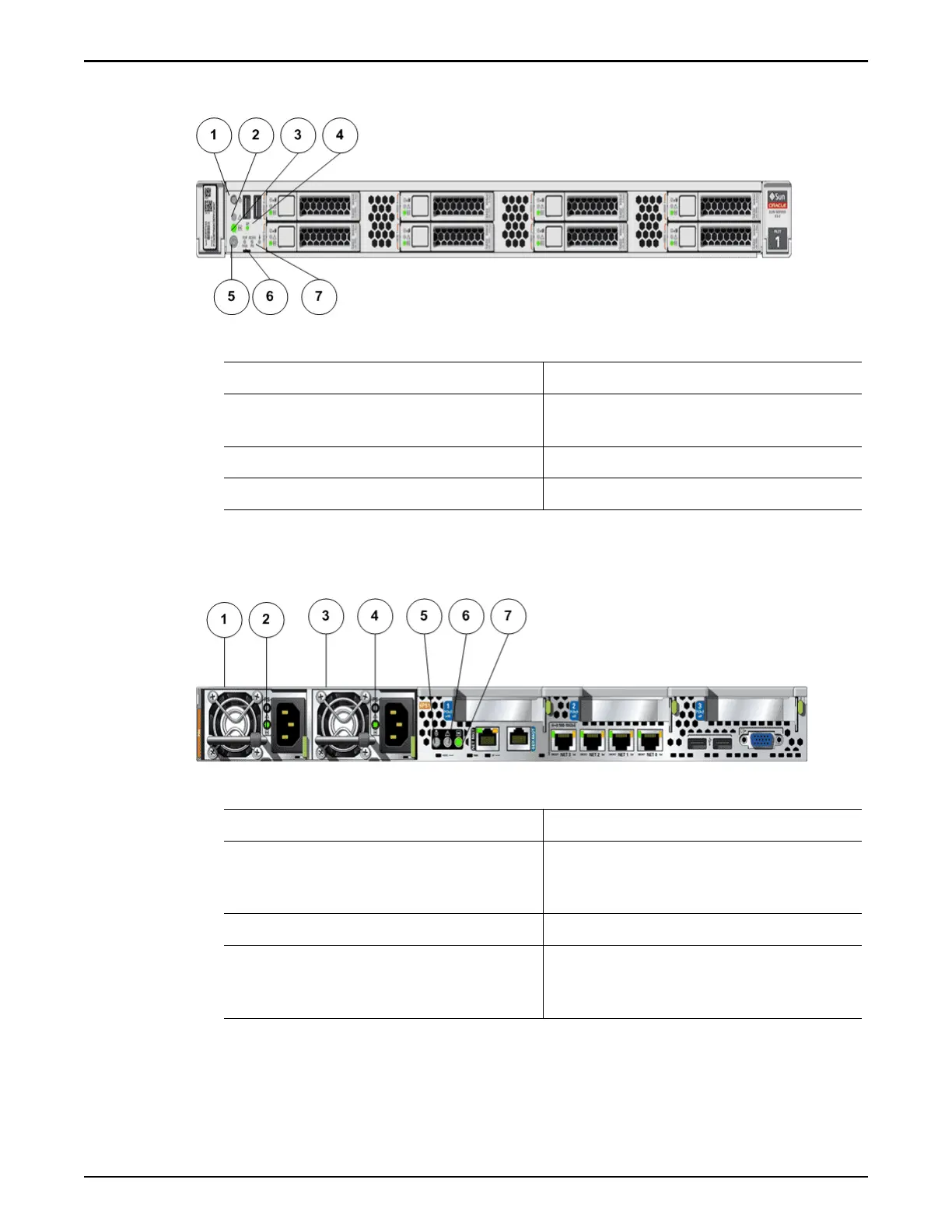

Figure 203: LEDs at the front of the Pilot
Legend
1 Locator LED / Locator buon: white 5 Power buon
2 Service Action Required LED or
Caution or Fault LED:
Amber
6 Fan fault LED: amber
3 OK LED: green 7 Power supply fault LED: amber
4 Service processor LED: green
The following gure shows the LEDs at the back of the Pilot:
Figure 204: LEDs at the back of the Pilot
Legend
1 Poser supply 0 (PS0) 5 Locator LED: white
2 Power supply LEDs: Service
Required LED (amber) and
AC OK
LED (green)
6 Service Required LED: amber
3 Power supply 1 (PS1) 7 Power or OK LED: green
4 Power supply LEDs: Service
Required LED (amber) and AC OK
LED (green)
There are six, system-level status indicators (LEDs), that are on the Pilot front
panel and the Pilot back panel. The following table provides status information
on these Pilot LEDs:
