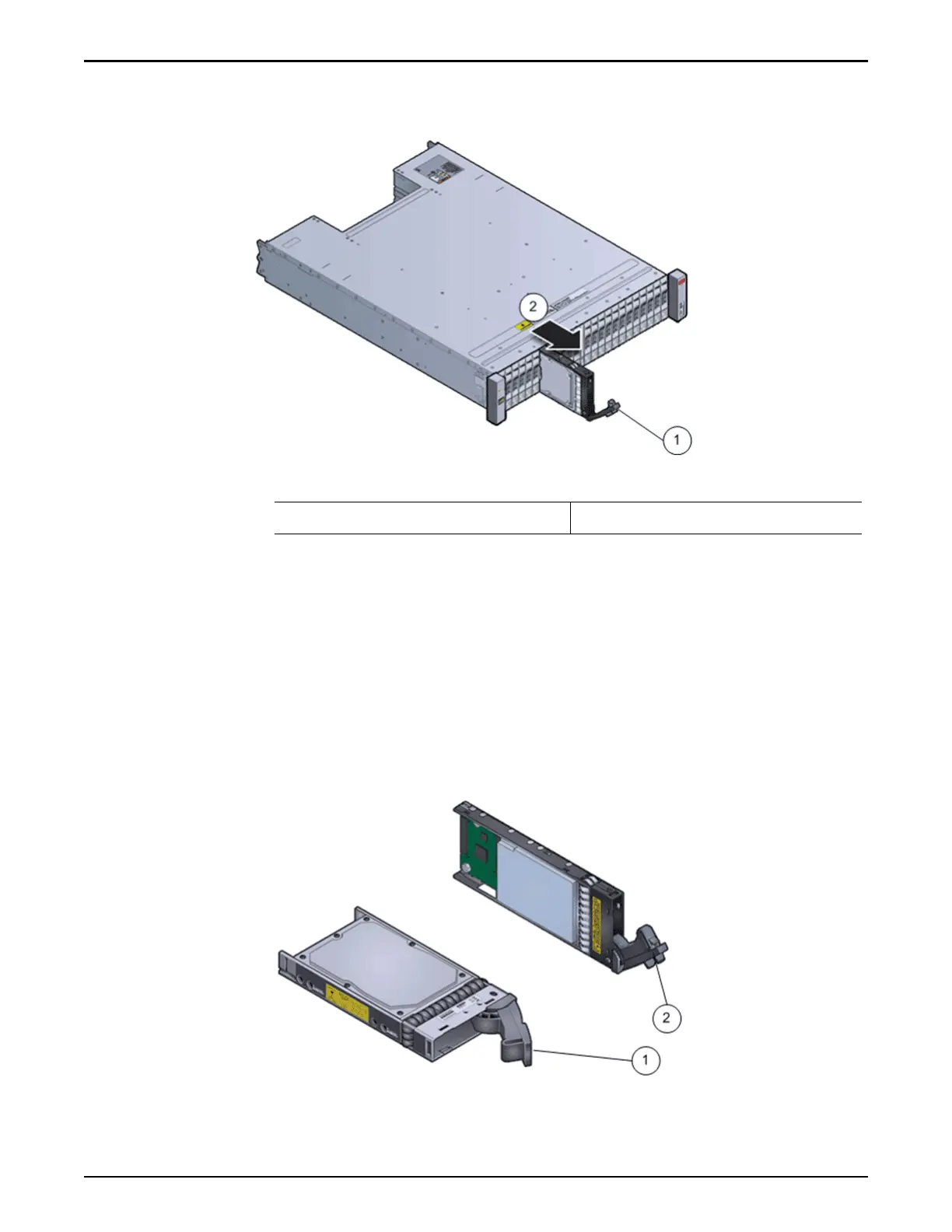

Figure 129: A drive removed from a DE2-24P Drive Enclosure
Legend
1 Drive carrier handle 2 Removing the drive
3 Grasp the middle of the drive body and pull the drive completely out of
the Driv
e Enclosurechassis.
Place the drive into an antistatic bag or on an ESD-qualied surface .
Insert a Drive
1 Make sure that the drive carrier handle on the drive is in the fully extended
position.
Figure 130: Extended drive carrier handles
Drive Enclosure Replacement Procedures
160
