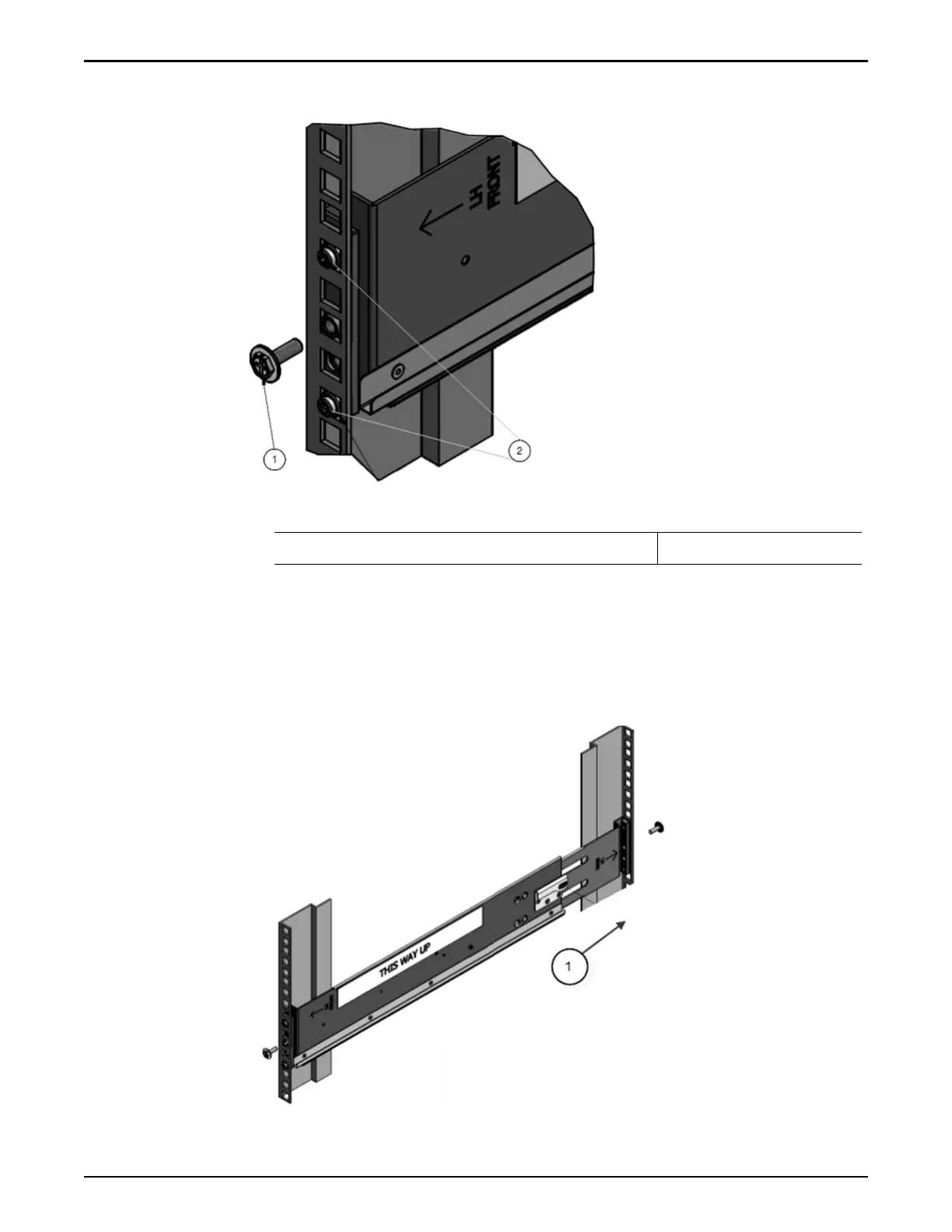

Figure 36: A Phillips 13mm head hex flange screw and the front of a rack
Legend
1 Phillips 13mm head hex ange screw 2 Rail-location pegs
5 From the back of the rack, position the pegs fully into the corresponding
rack holes.
T
o position the pegs, extend the length of the rail to the back of the rack
and position the pegs through the appropriate rack holes.
Figure 37: Extended rail to the back of the rack
