Pilot Replacement Procedures
Pilot Overview
The Pilot is an out-of-band management controller (1U) that directs and manages
all system activity
.
Each Oracle FS System has one active Pilot and one standby Pilot.
The Pilot provides access to the following:
•
All management functions for the Oracle FS System
•
System monitoring, alerts, log collection, and automatic log transmission
•
Management for restarting, replacing, updating, and recovering Controller
and Drive Enclosure resources
The two models available for the Pilot are X4–2 and X5–2. The following gure is
an isometric illustration of the Pilot.
Note: The X4-2 and X5-2 Pilot models cannot coexist in the same Oracle FS
System. Both Pilots must be X4 or both Pilots must be X5.

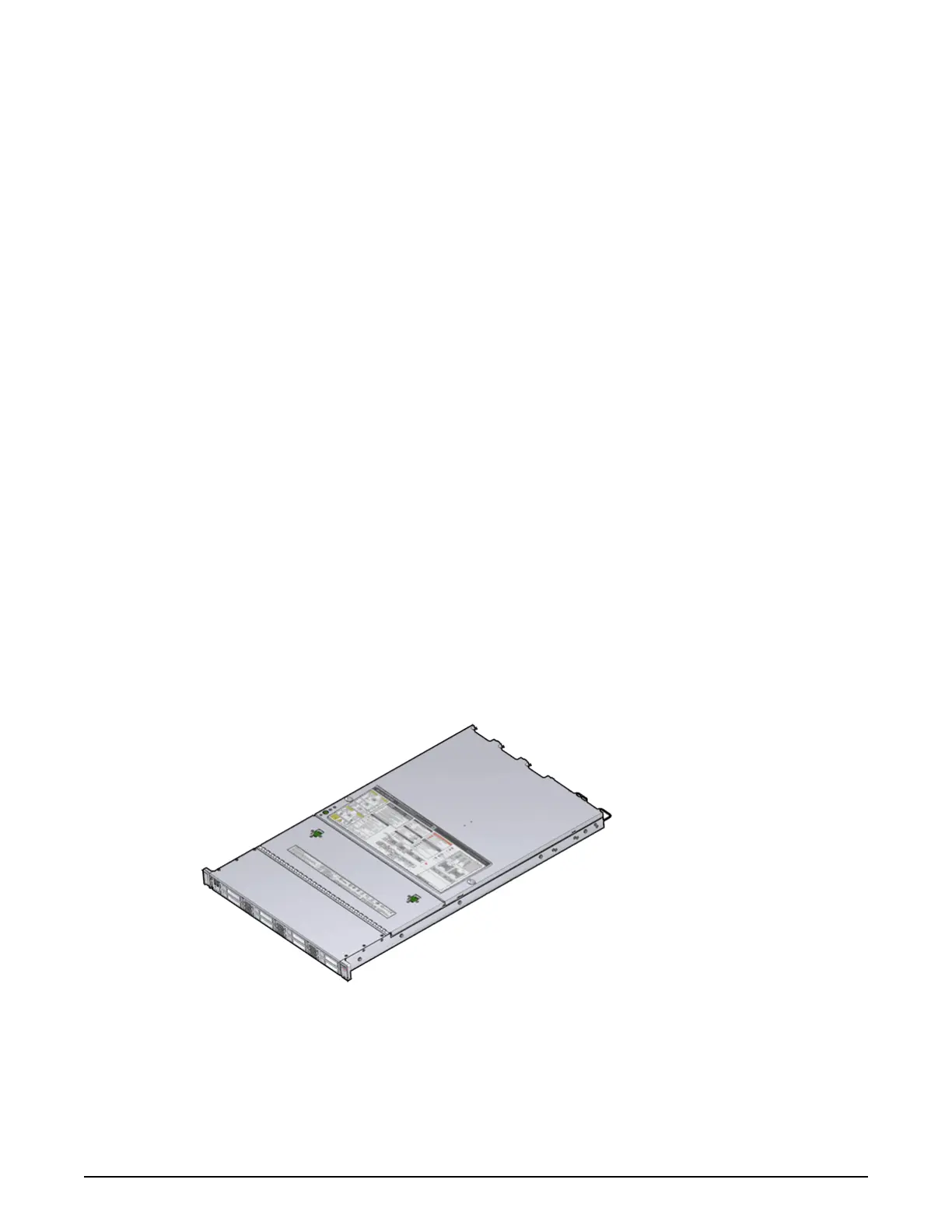

Figure 143: Pilot
You can distinguish between the X4–2 and X5–2 models of the Pilot by using the
Oracle FS System Manager (GUI) or identifying the visual dierences on the Pilot
chassis.
The drive slot spacing on the front panel of the Pilot is dierent for the X4–2 and
the X5–2 models. The X4–2 Pilot has eight drive bays that are evenly spaced
