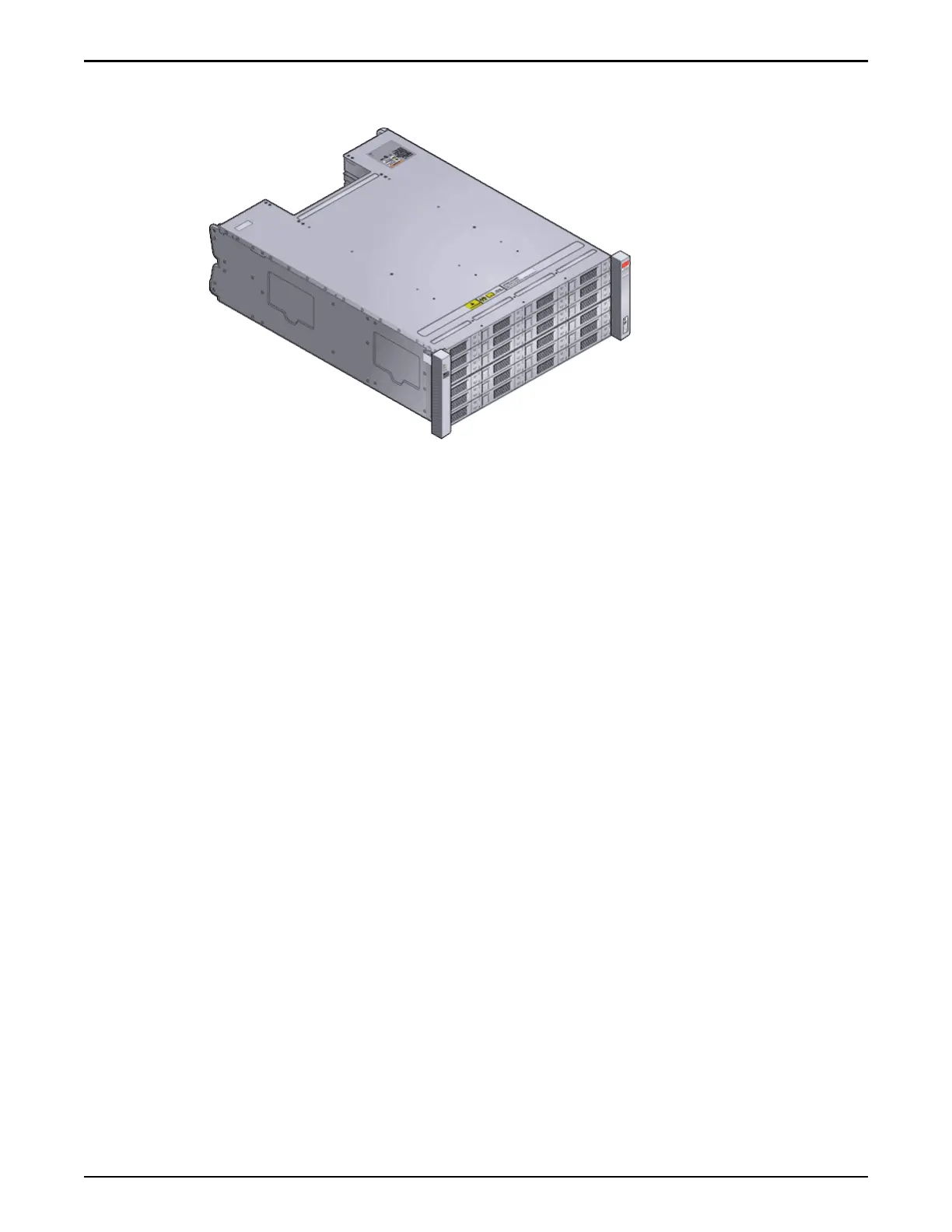

Figure 121: DE2-24C Drive Enclosure (front view)
Both types of Drive Enclosures hav
e the following physical conguration:
•
Two hot-serviceable I/O modules with two interface slots that comply with
the Storage Bridge Bay (SBB) standard
•
Two hot-serviceable 580W power cooling modules with dual load-sharing
power supplies and integrated fans
•
19-inch rack‑compatible enclosure
•
Front access to all drives
•
Back access to the I/O modules and the power cooling modules
•
LEDs with status information for the I/O modules, the drives, and the
power cooling modules
The following gures show the back of the DE2-24P Drive Enclosure and the
DE2-24C Drive Enclosure.
Drive Enclosure Replacement Procedures
154
