Oracle FS1-2 - Drive Enclosure Drive Replacement

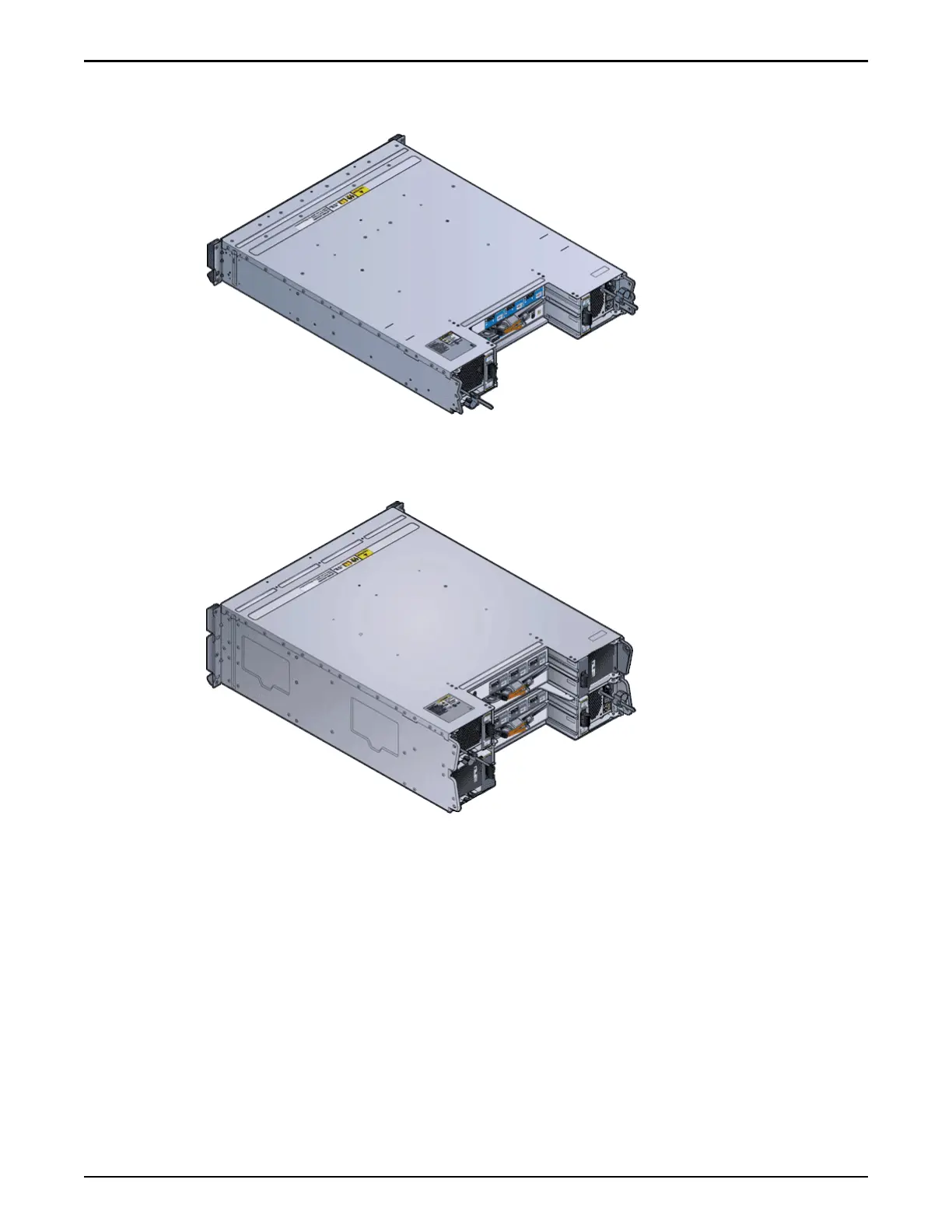

Figure 122: DE2-24P Drive Enclosure (back view)
Figure 123: DE2-24C Drive Enclosure (back view)
Drive Enclosure Drive Replacement
Each Driv
e Enclosure has drives located on the front of the chassis. Drives are
customer replaceable units (CRUs). Replacing a drive is a hot-serviceable
process.
The DE2-24P Drive Enclosure supports the following drive conguration
options:
•
300GB hard disk drives (HDDs) fully populated with 24 drives
•
900GB HDDs fully populated with 24 drives
•
400GB solid state drives (SSDs) in the following congurations:
•
Six drives and one spare
Drive Enclosure Replacement Procedures
155
