Oracle FS1-2 - Table 5: Pilot Components and Descriptions; Figure 7: Pilot Back View

the Oracle FS1 Flash Storage System components list. P
art numbers are listed in
the components list.
The Pilot is a one rack-unit (1U) server and consists of several replaceable
components. Many Pilot components are customer replaceable (CRUs), while
others are eld replaceable units (FRUs) that require Oracle Customer Support to
perform the replacement. Also, some components are hot-serviceable, meaning
that they can be replaced, while the Pilot is powered on. The following table
provides a summary of the Pilot FRUs and CRUs.
Table 5: Pilot components and descriptions
Pilot component Type Hot-serviceable
Baery CRU No
USB Oracle System Assistant (OSA)
ash driv
e
CRU No
Disk backplane FRU No
8 GB DIMM module CRU No
Cable kit FRU No
CPU FRU No
300 GB SAS HDD FRU No
Fan module CRU No
Note: GM support is
required to ensure
that failover has
occurred.
Riser CRU No
SAS HBA [6 Gb/s] CRU No
Heat sink FRU No
Power supply CRU Yes

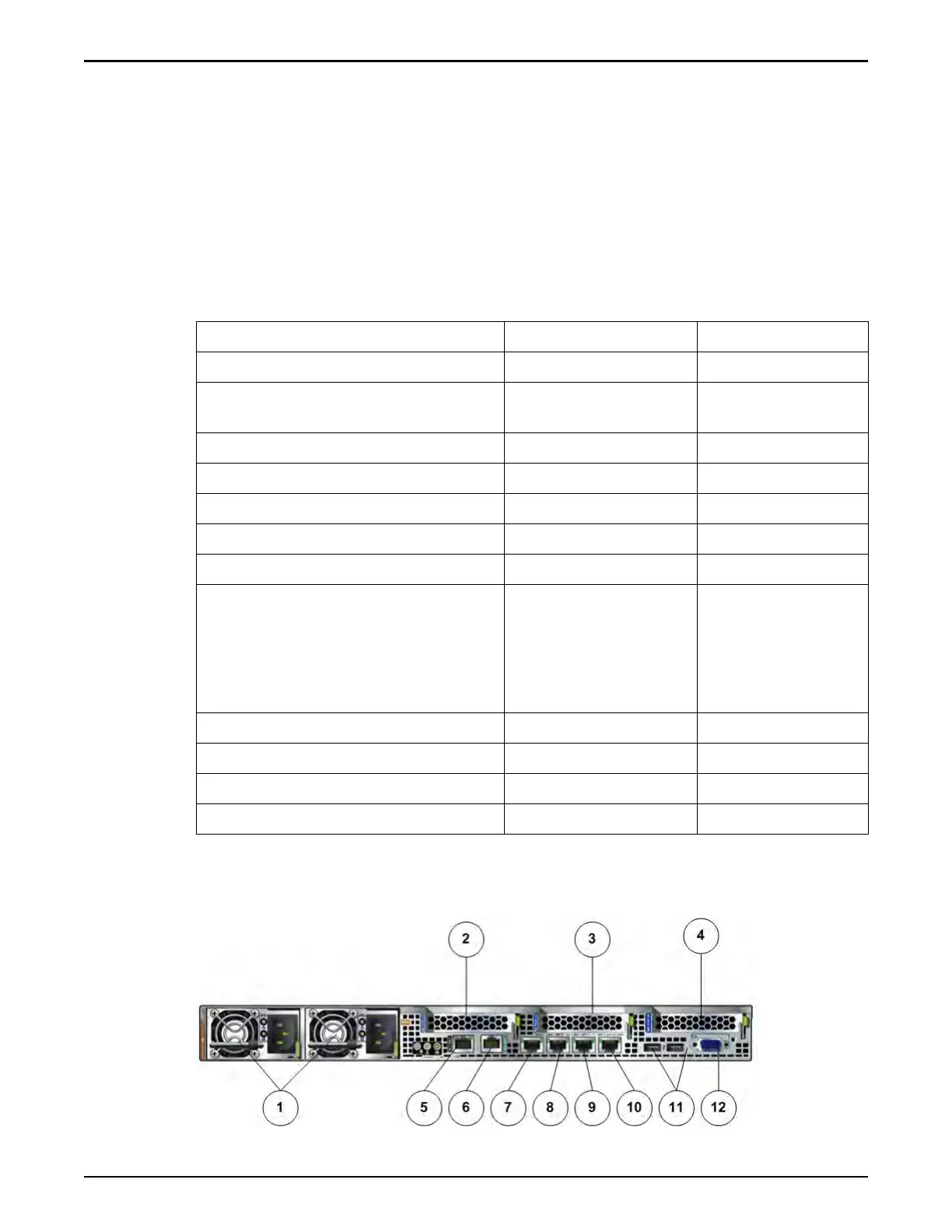

The following gure shows the components located at the back of the Pilot.
Figure 7: Pilot back view
