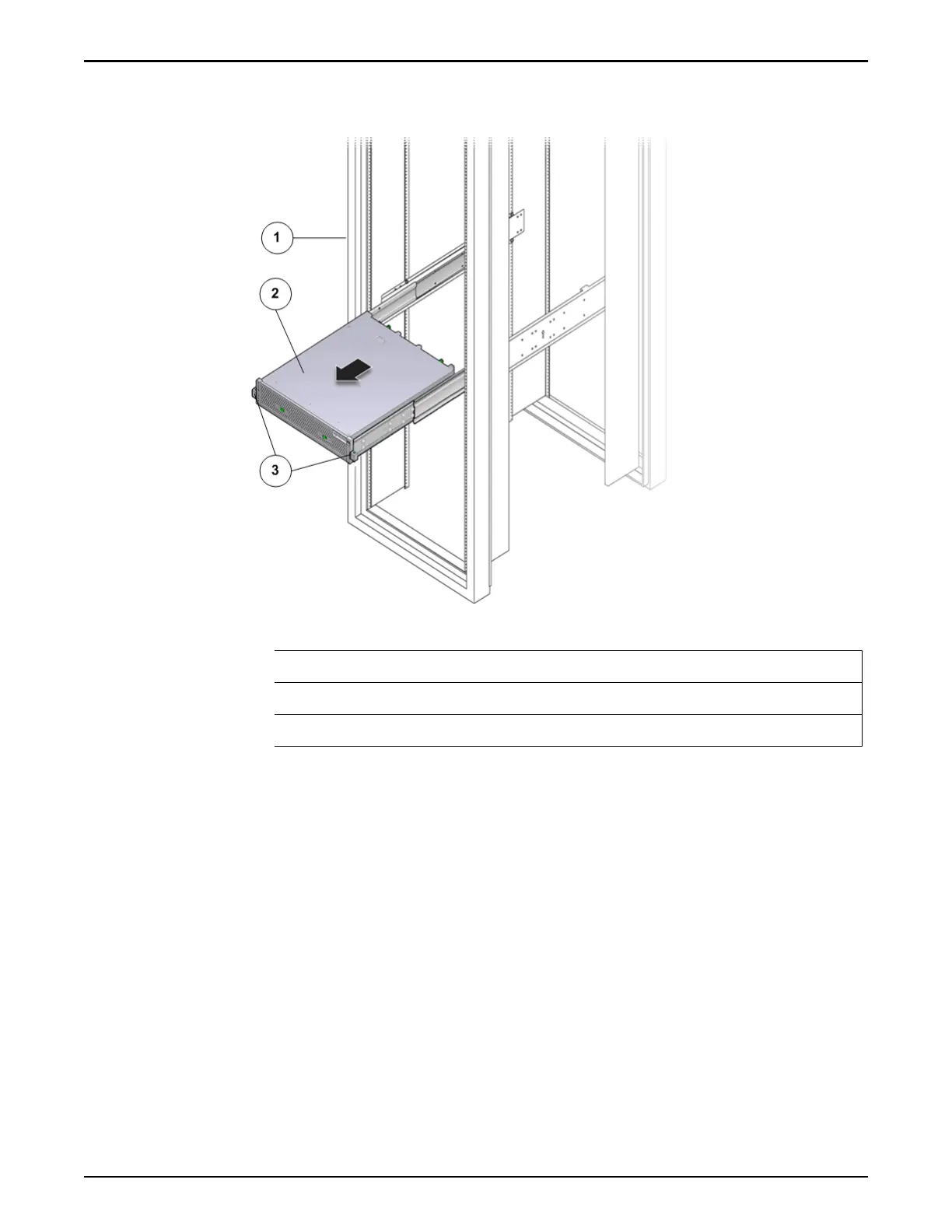

Figure 104: Slide the Controller to service position
Legend
1 Rack
2 Controller chassis
3 Release buons
Important: Before you slide the Controller chassis out, ensure that the
cables do not interfere with the movement of the Controller chassis.
Although the cable management arm (CMA) is hinged so that you can
extend the Controller chassis, all cables and cords must be out of the way
when you service the Controller components.
Remove the Controller Power Supply Cords
Disconnect the power cords from both power supplies.
Controller Replacement Procedures
140
