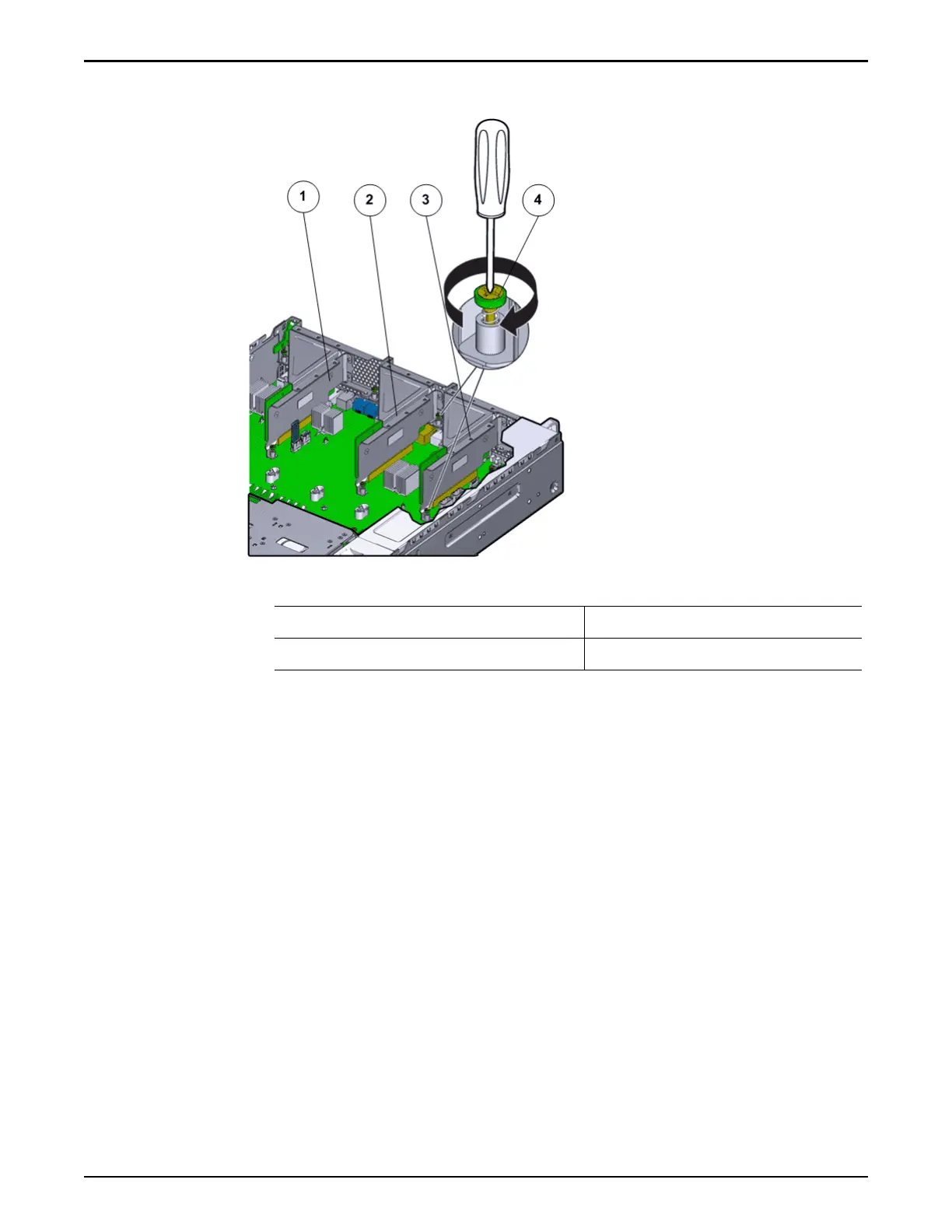

Figure 85: Captive screws to secure risers to the motherboard
Legend
1 Riser 3 with latch 3 Riser 1
2 Riser 2 4 Captive screws
To install riser 3, lock the latch to secure the riser to the Controller
motherboard.
Controller Replacement Procedures
118
