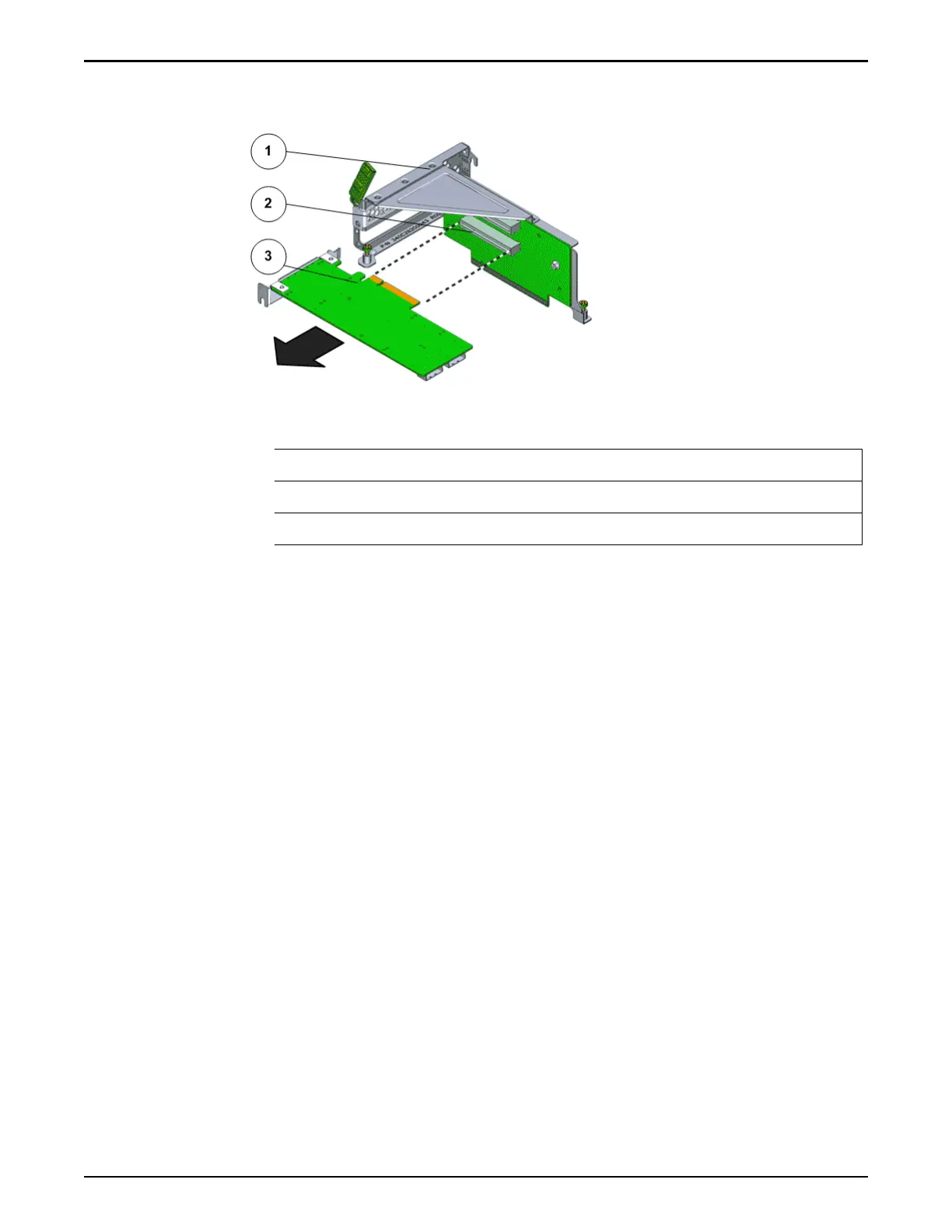

Figure 95: Remove HBA from riser slots
Legend
1 Riser
2 Riser slots
3 HBA
Insert an HBA
1 Unscrew the ller panels on the riser (if any), so that the HBAs can be
inserted into the PCIe slots of the replacement riser
.
Note: If you are replacing an HBA from the riser with the retainer latch,
swing the retainer latch to its fully open (180 degrees) position.
2 Orient the HBA so that the brackets of the HBA align with the alignment
pin in the PCIe slot of the riser.
Important: Hold the HBA by the edges. Do not touch the metal contacts on
the boom of the card.
3 Push the connectors on the edge of the HBA into the PCIe slot by pushing
rmly to seat the card.
Controller Replacement Procedures
130
