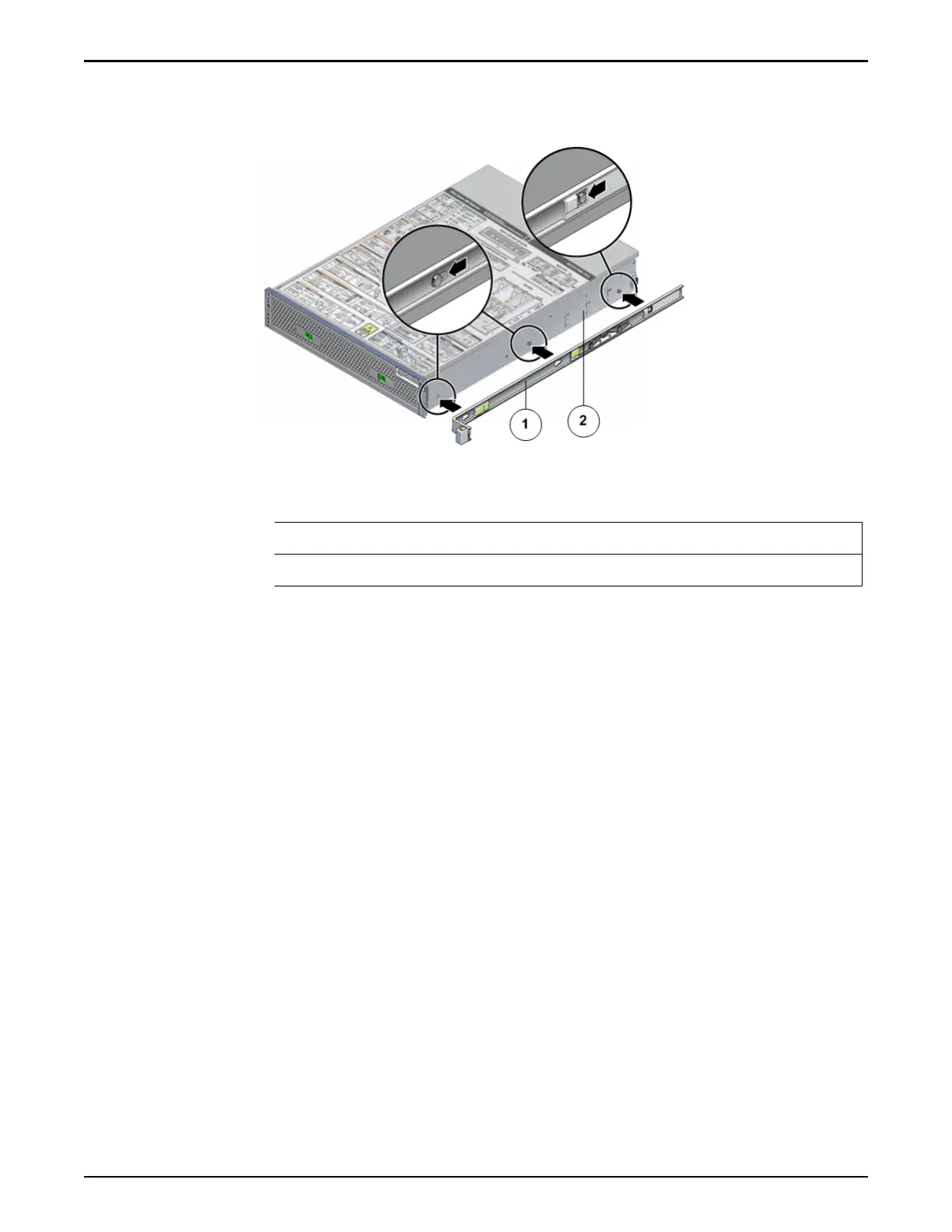

Figure 18: Mounting bracket attached to the chassis
Legend
1 Mounting bracket
2 Controller chassis
Tip: P
osition the mounting bracket against the Controller chassis so that
the mounting bracket are aligned with screw holes and then install the
screws.
4 Aach the second mounting bracket to the left side of the Controller
chassis.
5 Determine which rack hole numbers to use when aaching the slide rails
to the rack posts.
Note: The Controller is two rack units tall (2U). The slide rails will occupy
the lower half of the 2U space.
6 Determine which screws you will use to mount the slide rails.
Tip: If your rack has threaded mounting holes in the rack posts, determine
whether the threads are metric or standard. Select the appropriate screws
from the package included in the mounting kit. If your rack does not have
threaded mounting holes, the mounting screws are secured with a caged
nut.
7 Aach a slide rail to the right front rack post.
Oracle FS1–2 Global Procedures
51
