Oracle FS1-2 - Figure 39: Cage Nut Installed in a Square-Hole Rack

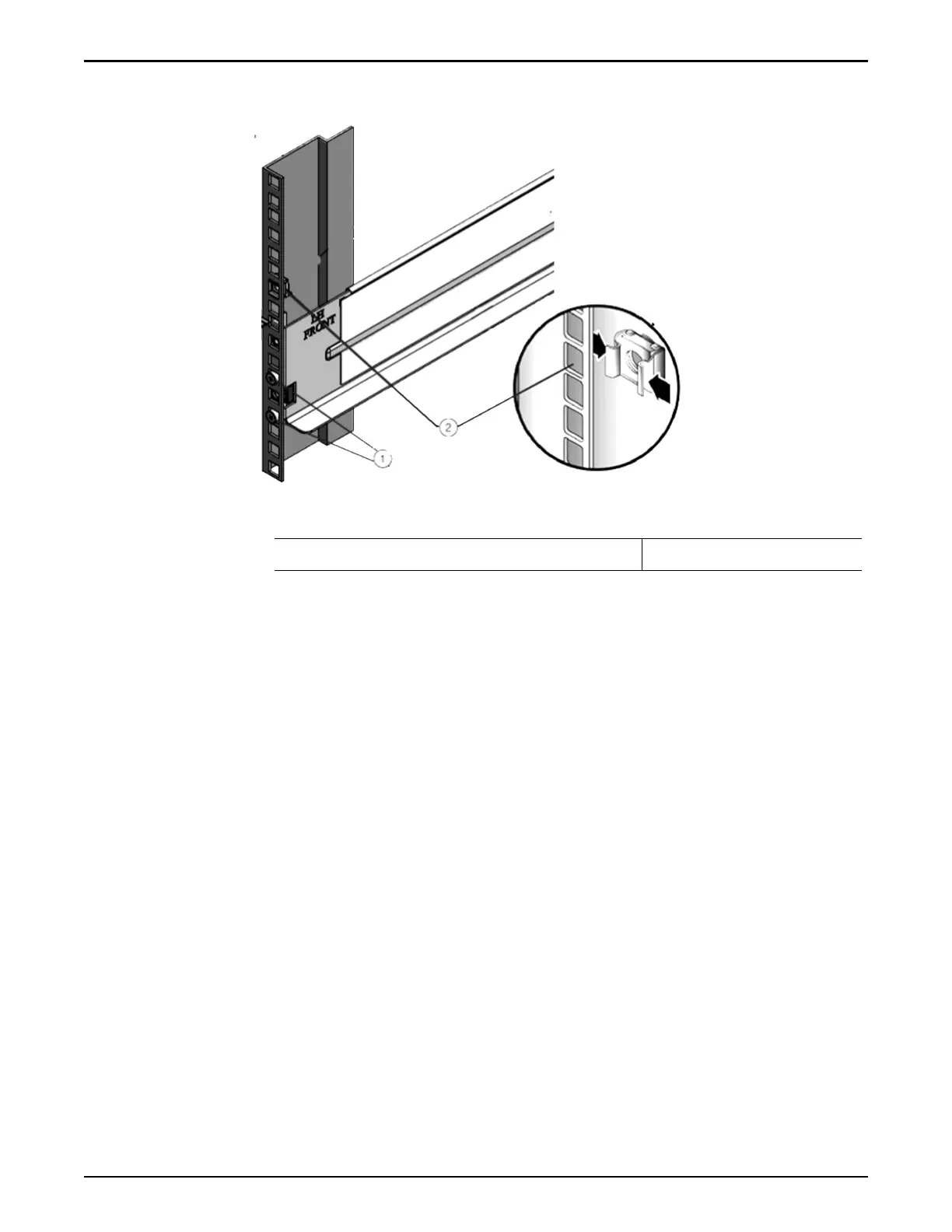

Figure 39: Cage nut installed in a square-hole rack
Legend
1 Rail-location pegs 2 Cage nut
4 Prepare the screws in each rail end.
Square-hole racks
No preparation is required.
Round-hole racks
Remov
e the two rail-location pegs from each rail end and replace them with
the special screws from the rail kit. The special screws are part number
0093340-02.
Threaded-hole rack
Remove the two rail-location pegs from each rail end and replace them in the
opposite direction from inside of the rail ange. Remove and discard the clip
nut from the front rail.
