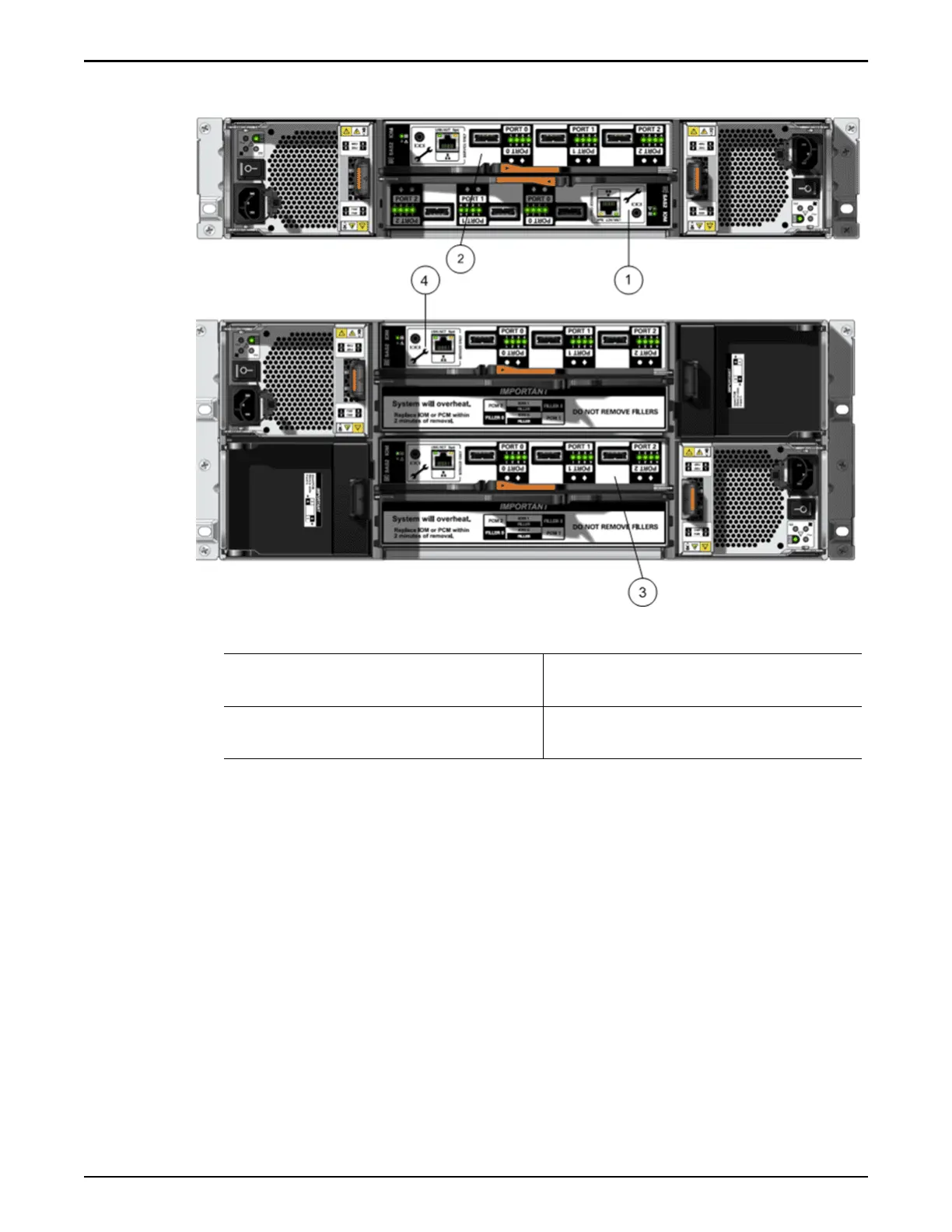

Figure 133: I/O modules on DE2-24P and DE2-24C Drive Enclosure types
Legend
1 I/O module 0 (DE2-24P Drive
Enclosure)
3 I/O module 0 (DE2-24C Drive
Enclosure)
2 I/O module 1 (DE2-24P Drive
Enclosure)
4 I/O module 1 (DE2-24C Drive
Enclosure)
Caution: Make sure y
ou can replace the FRU or CRU within 10 minutes of
removing the FRU or CRU. Do not remove a FRU or CRU if you cannot replace it
within 10 minutes with a FRU or CRU or with a ller panel. If a FRU or CRU slot
is left empty, the system can overheat due to improper airow.
Note: Prior to replacement, ensure that only one I/O module has failed and that
the other I/O module shows a status of Normal.
Procedure Overview
1 Prepare a Drive Enclosure for Component Replacement
2 Remove an I/O Module
3 Insert an I/O Module
4 Verify the Status of a Drive Enclosure Component
Drive Enclosure Replacement Procedures
163
