Oracle FS1-2

Slide Pilot to Service Position
1
Extend the rack’s anti-tilt legs.

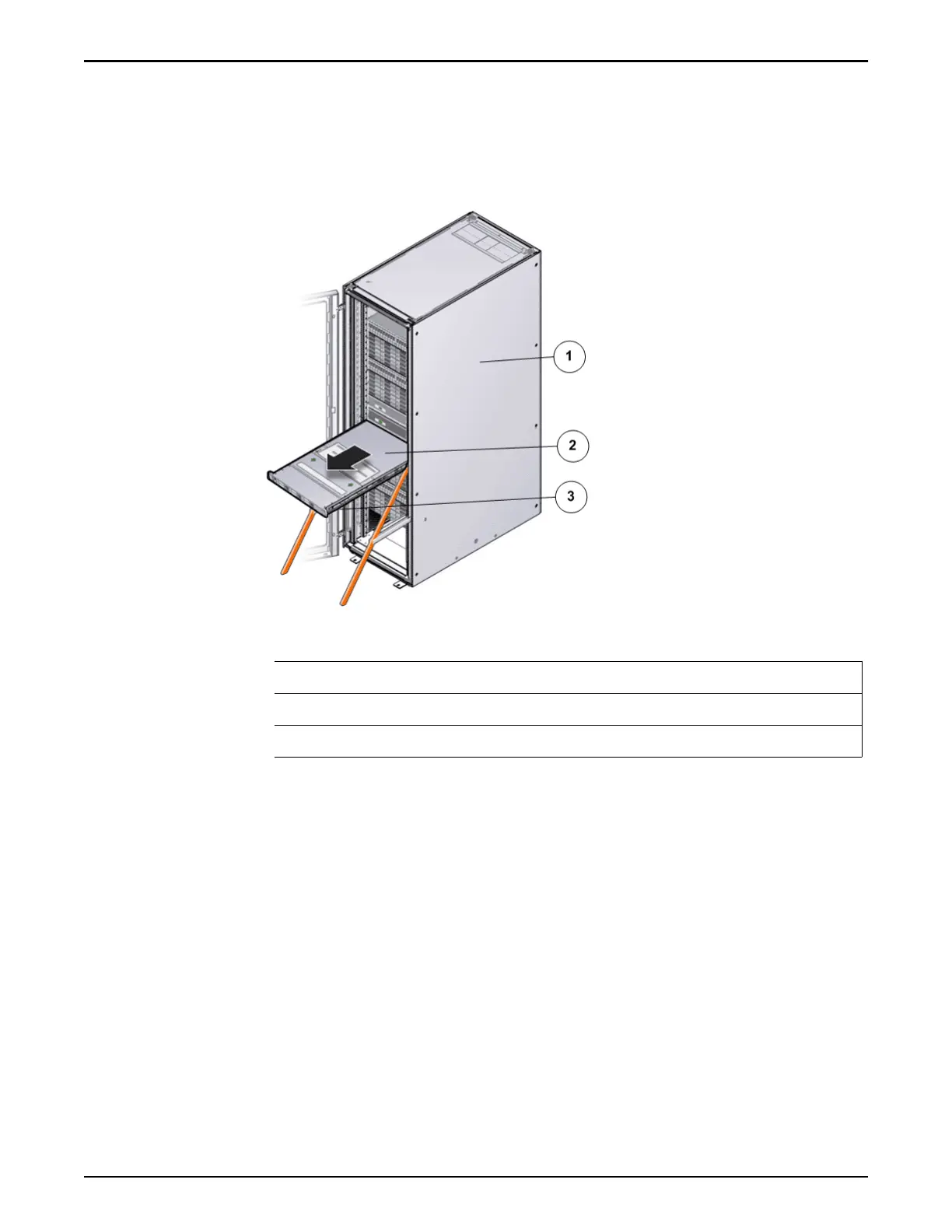

Figure 187: Pilot position during component replacement
Legend
1 Rack
2 Pilot chassis
3 Pilot rails
2 Slide the Pilot chassis fully forward until the slide lockout release tabs lock
into position.
Pilot Replacement Procedures
