Controller Rails
Adding Controllers in the rack requires y
ou to install rack rails in the rack and
slide rails on the chassis for each Controller that you plan to add.
Controller rail kits can be installed in the Sun
â„¢
Rack 900, the Sun Rack 1000, and
third-party ANSI/EIA 310-D-1992 or IEC 60927 compliant racks with the
following types of holes:
•
Square
•
Round
•
Threaded

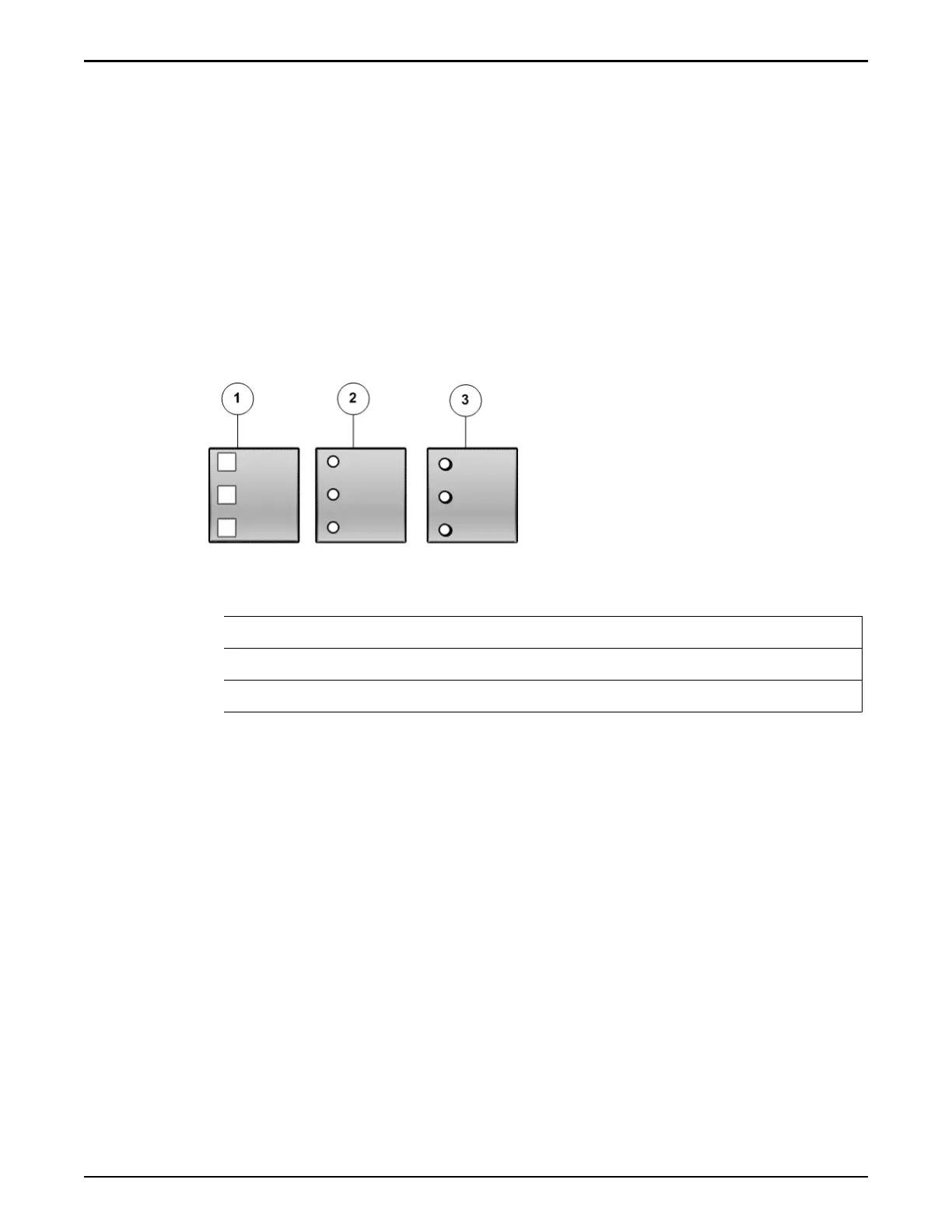

Figure 11: Examples of supported rack holes
Legend
1 Square holes
2 Round holes
3 Threaded holes
Caution: Oracle recommends that you install each Controller after you install the
rail kit before installing the next combination of rail kit and Controller. Installing
all of the rail kits and then inserting the Controllers is not always possible
because of potential space limitations at some data centers. Also, you run the risk
of not placing the Controllers in the correct rack position and causing possible
cabling issues.
Note: Controller rails are packaged within the Pilot shipping carton (not the
Controller shipping carton). Ensure that the Controller rails are not misplaced
during unpacking.
Related Links
Controller Rail Kits
Controller Rail Kits
The Controller rail kit contains the following items:
Oracle FS1–2 Global Procedures
44
