168User Manual 1335.9090.02 ─ 09
6. To save the mask for later use, tap "Save".
To load a mask
1.
Press the [Apps Selection] key.
2. Tap "Mask".
3. Tap "Load".
4. Select the mask file.
5. Tap "Load".
To perform a mask testing
1. Set up the waveform that you want to test.
2. Create or load a mask. See:
● "To create and set up a mask" on page 167
● "To load a mask" on page 168
3. If necessary, tap "Setup" and adjust the y-position of the mask.
4. Set the "Actions" to be performed on violation.
5. In the mask window, tap "Run".

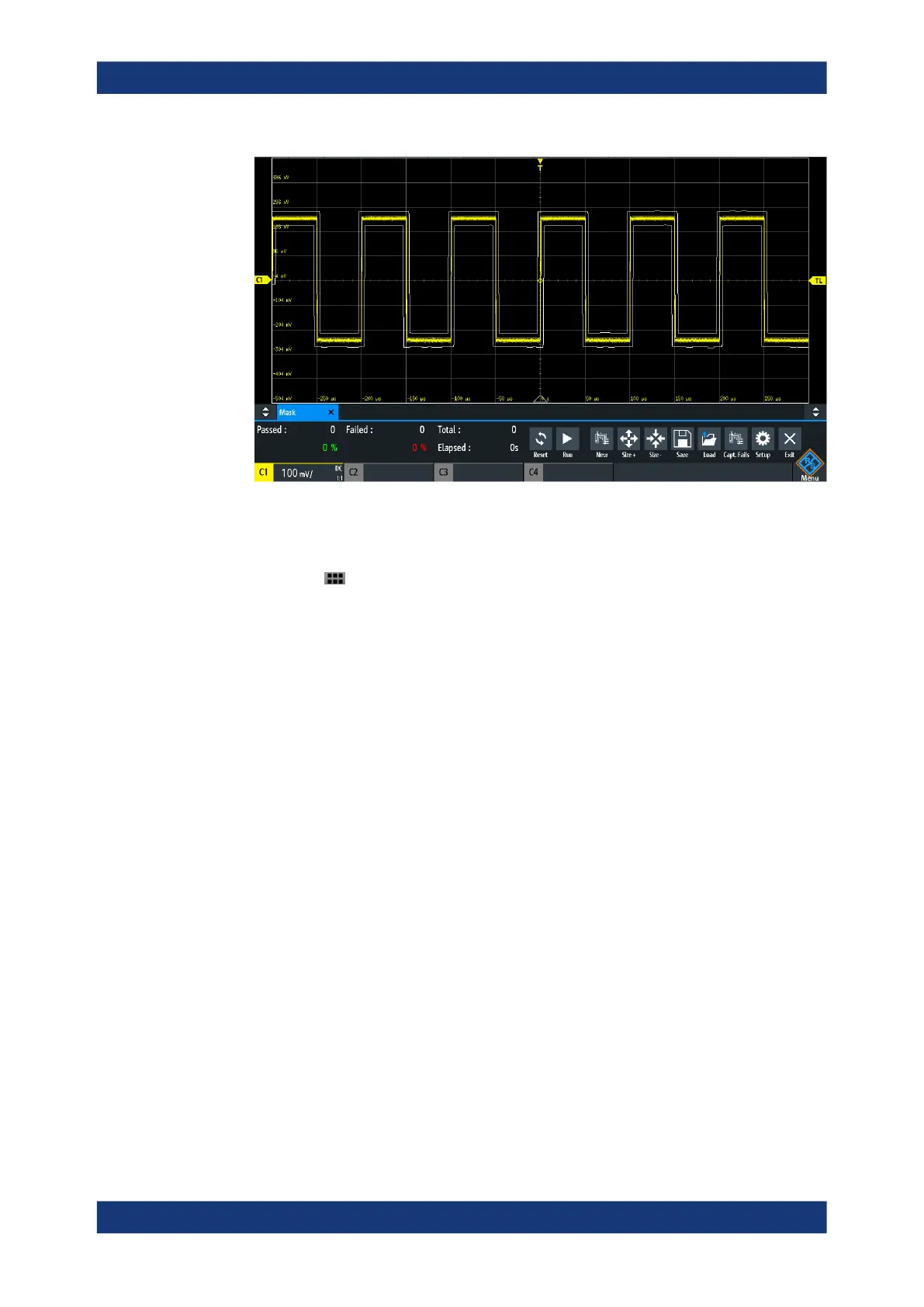

If the mask limits are violated, the specified action is taken. The overall result is
shown in the mask window.
