b) For a more detailed peak detection, enable the "Advanced Peak Setup".
Set the "Excursion", "Max. Width" and "Distance".
7. If necessary, set a reference marker:
a) Select the type of the "R-Marker".
b) If "R-Marker" = "Indicated", set the "Index".
c) If "R-Marker" ="Range", set the "Frequency" and "Span".

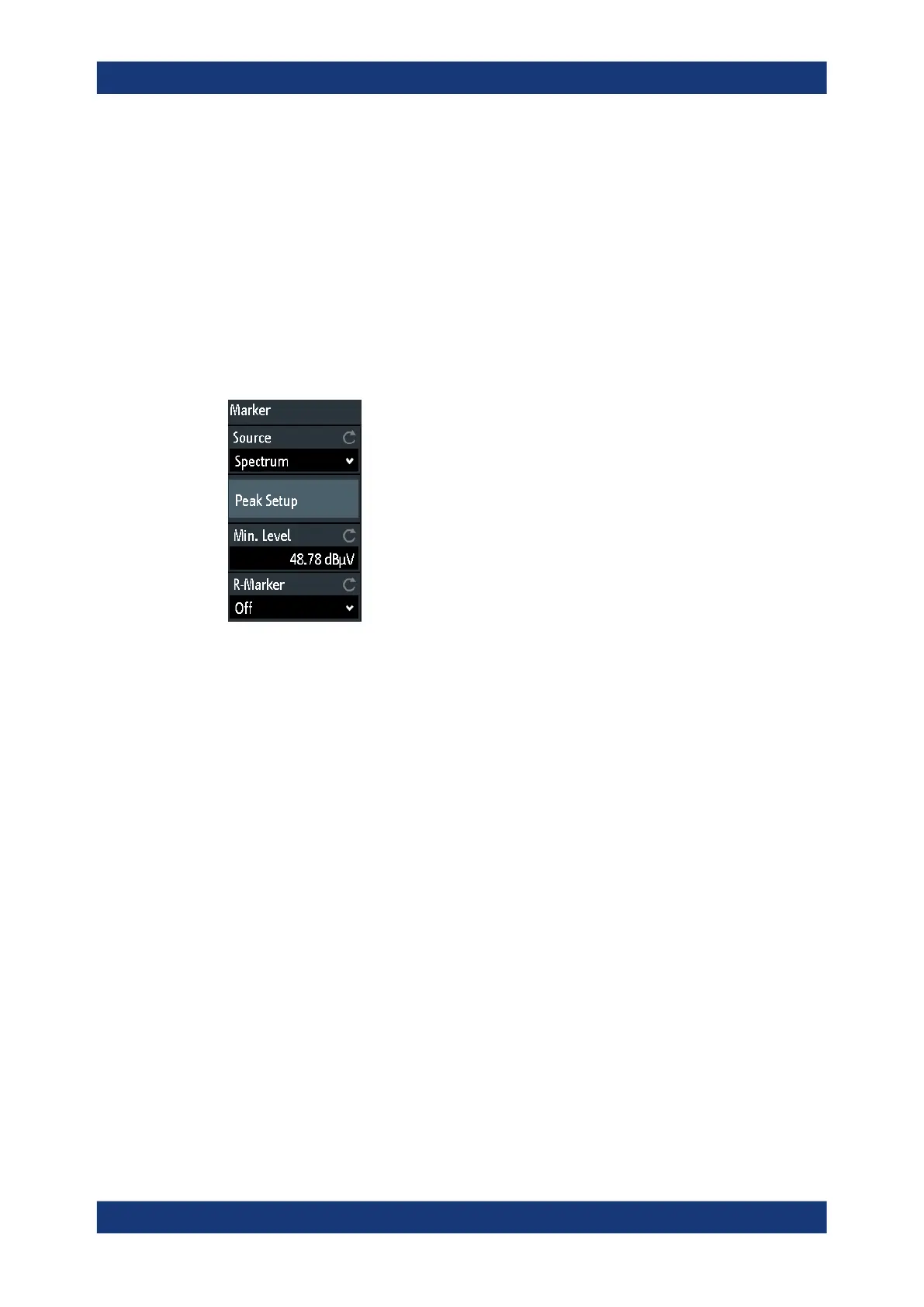

9.3.3.1 Marker menu
Access: "FFT" menu > enable "Peak List" > "Marker"
Source
Defines the waveform type that is searched for peaks.
Remote command:
SPECtrum:MARKer:SOURce on page 551
Peak Setup
See Chapter 9.3.3.2, "Peak setup", on page 186.
Min. Level
Defines the minimum absolute level for peak detection. See "Min. Level" on page 187.
R-Marker
See Chapter 9.3.3.3, "R-Marker settings", on page 188.
9.3.3.2 Peak setup
Access: "FFT" menu > enable "Peak List" > "Marker" > "Peak Setup"
The simple peak setup needs only the setting of the minimum level for peak detection.
More complex criteria can be defined in the advanced setup.
Spectrum analysis and spectrogram (option R&S
RTM-K18)
