Serial bus analysis
R&S
®
RTM3000
326User Manual 1335.9090.02 ─ 09
MIL-STD-1553 Trigger Settings

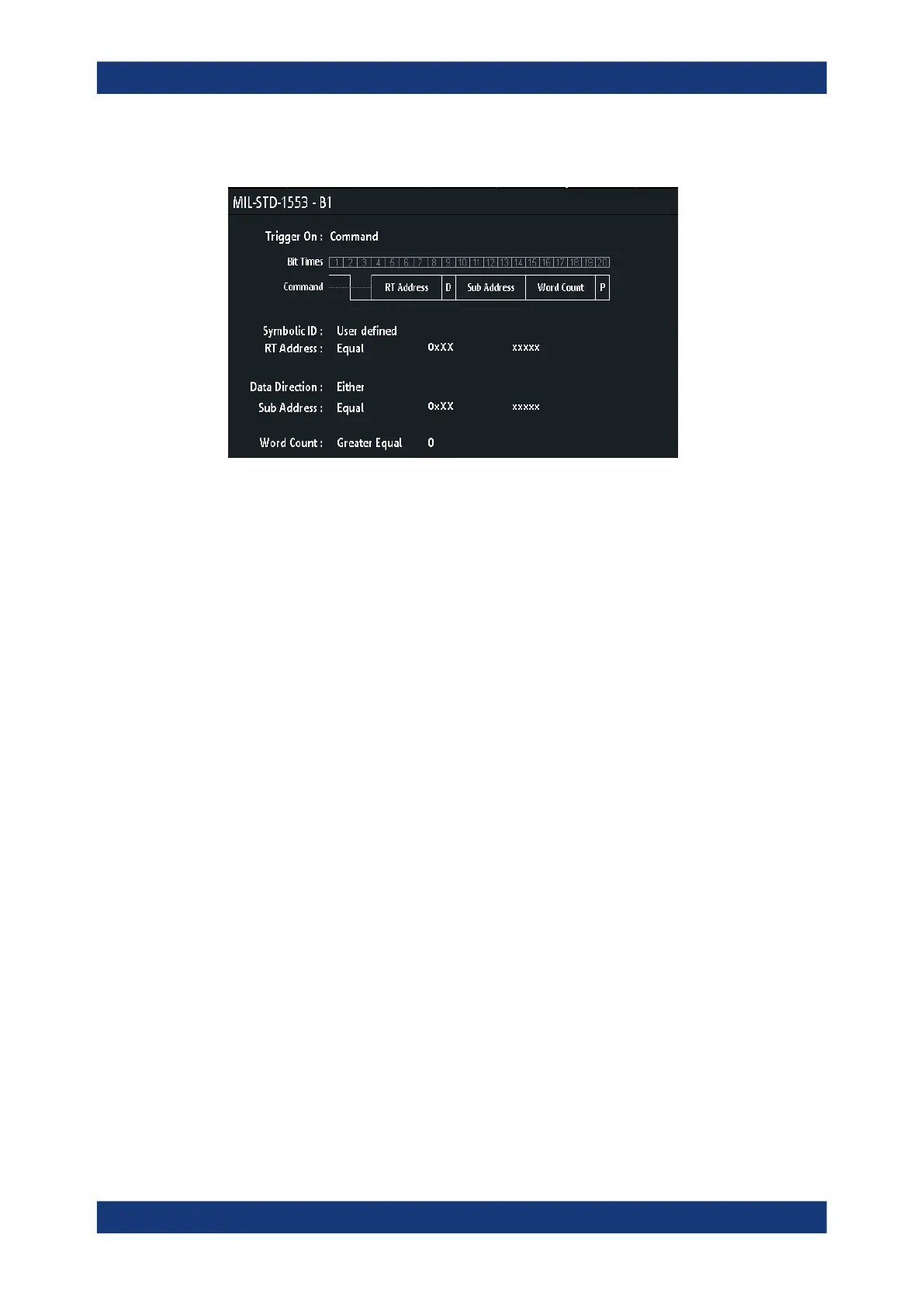

Figure 13-45: Trigger setup to trigger on identifier and data patterns
Synchronization
Triggers on a sync impulse. You can select to trigger on "C/S" (Commando/Status), on
"Data" or on "All" sync pulses.
Remote command:
TRIGger:A:MILStd:SYNC on page 688
Word
Selects the word type to be triggered on. The selected word type is indicated in the
softkey name.
Remote command:
TRIGger:A:MILStd:WORD on page 689
Error
Triggers on any combination of protocol errors. You can enable triggering on a specific
type of error in the submenu.
Synchronization ← Error
Triggers if a sync impulse does not fulfill the technical requirements or when the trans-
mission is not valid.
Remote command:
TRIGger:A:MILStd:ERRor:SYNC on page 684
Parity ← Error
Checks the parity of every word and triggers if the parity is even.
Remote command:
TRIGger:A:MILStd:ERRor:PARity on page 684
Manchester ← Error
Triggers if there is an error in the Manchester coding of the signal.
MIL-STD-1553 (option R&S
RTM-K6)
