Serial bus analysis
R&S
®
RTM3000
340User Manual 1335.9090.02 ─ 09
"Coding Error"
Searches for a coding error.
Remote command:
SEARch:PROTocol:ARINc:ERRor on page 712

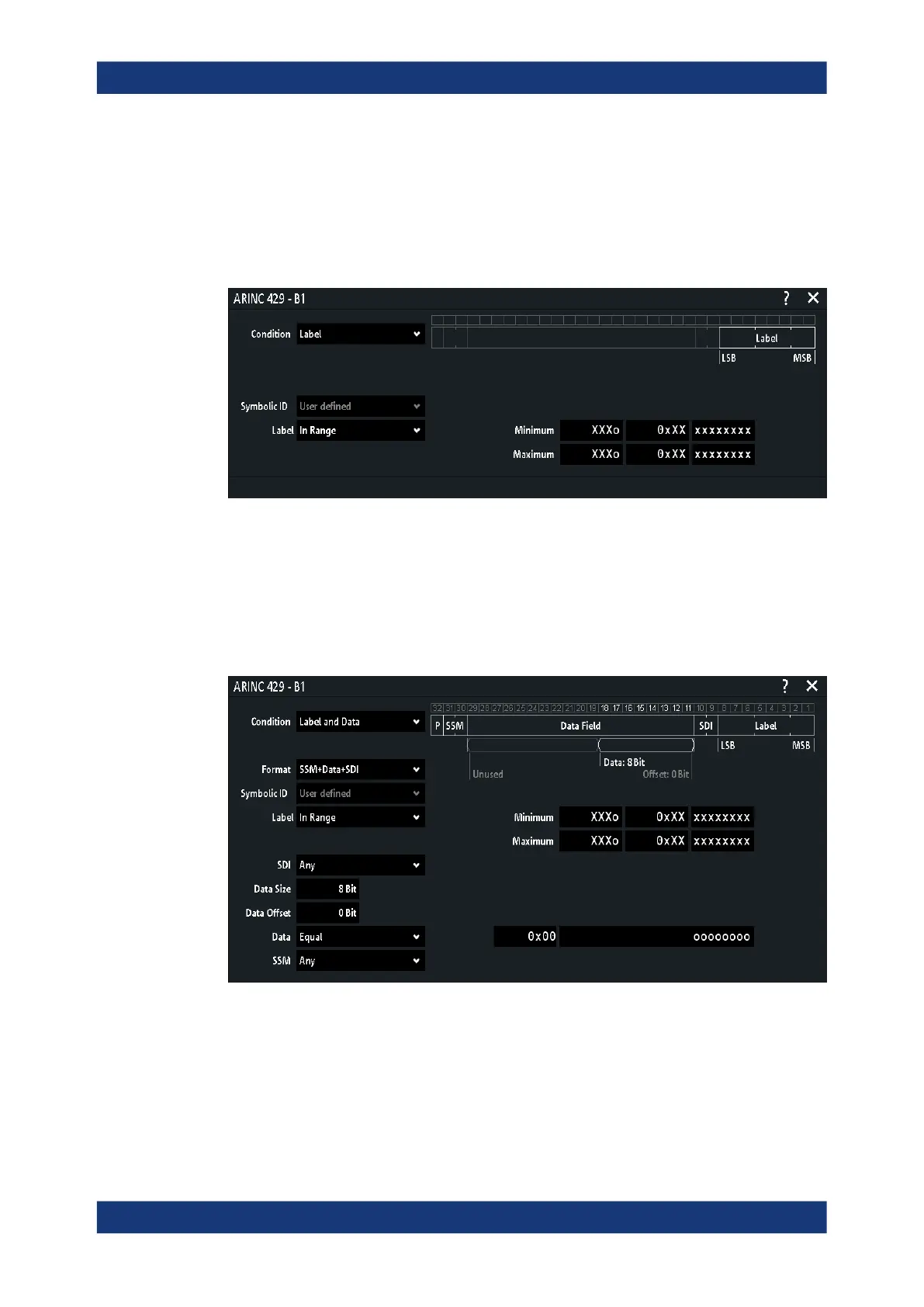

Label
Set the label settings to be searched for.
Symbolic ID ← Label
If a label list with node names was loaded and applied in the bus configuration, you
can select simply the node name from the list instead of entering the numeric identifier.
The instrument searches for the identifier of the selected node.
Label and Data
Set the label and data settings to be searched for. See also: Symbolic ID
SSM ← Label and Data
Sets the values for the sign/status matrix (SSM) bits.
Remote command:
SEARch:PROTocol:ARINc:SSM on page 713
ARINC 429 (option R&S
RTM-K7)
