Symbolic ID ← Label
If a label list with node names was loaded and applied in the bus configuration, you
can select simply the node name from the list instead of entering the numeric identifier.
The instrument triggers on the identifier of the selected node.
Label and Data

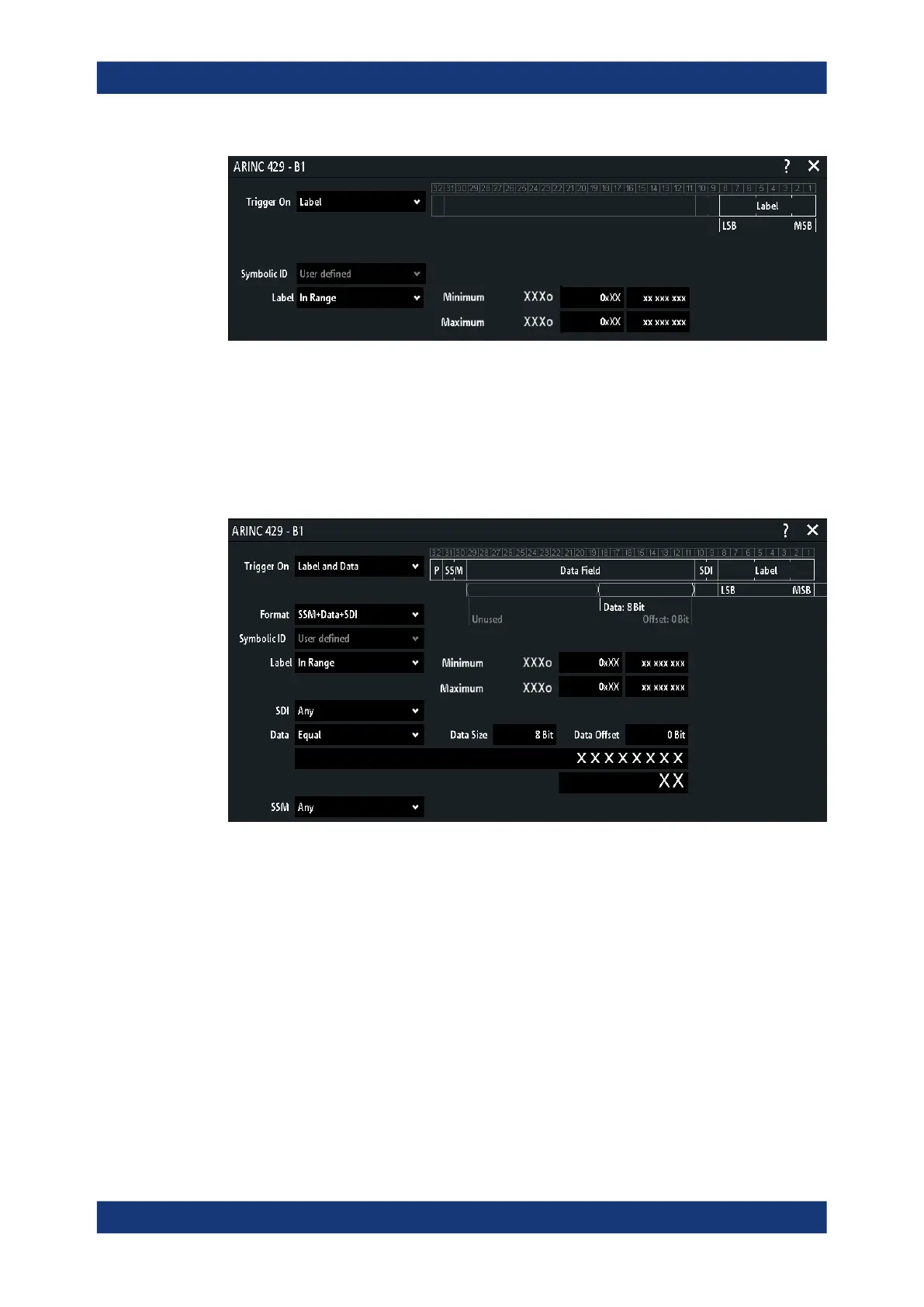

Set the label and data settings to be triggered on. See also: Symbolic ID
SSM ← Label and Data
Sets the values for the sign/status matrix (SSM) bits.
Remote command:
TRIGger:A:ARINc:SSM on page 706
SDI ← Label and Data
Sets the values for the source/destination identifier (SDI) bits.
Remote command:
TRIGger:A:ARINc:SDI on page 706
Data ← Label and Data
Triggers on a data, that is specified in the submenu.
ARINC 429 (option R&S
RTM-K7)
