Data Offset ← Data ← Label and Data
Sets a data offset.
Remote command:
TRIGger:A:ARINc:DATA:OFFSet on page 704
Data Size ← Data ← Label and Data
Sets the data size.
Remote command:
TRIGger:A:ARINc:DATA:SIZE on page 704
Compare ← Data ← Label and Data
Sets the condition how the decoded value is compared with the defined range.
Remote command:
TRIGger:A:ARINc:DATA:CONDition on page 703
Data ← Data ← Label and Data
After setting the "Compare" condition, you can enter the value bit-by-bit by setting the
state high, low, or don't care for each single bit. Alternatively, you can enter a hexadeci-
mal value for each byte.
Remote command:
TRIGger:A:ARINc:DATA:MAXimum on page 704
TRIGger:A:ARINc:DATA:MINimum on page 704

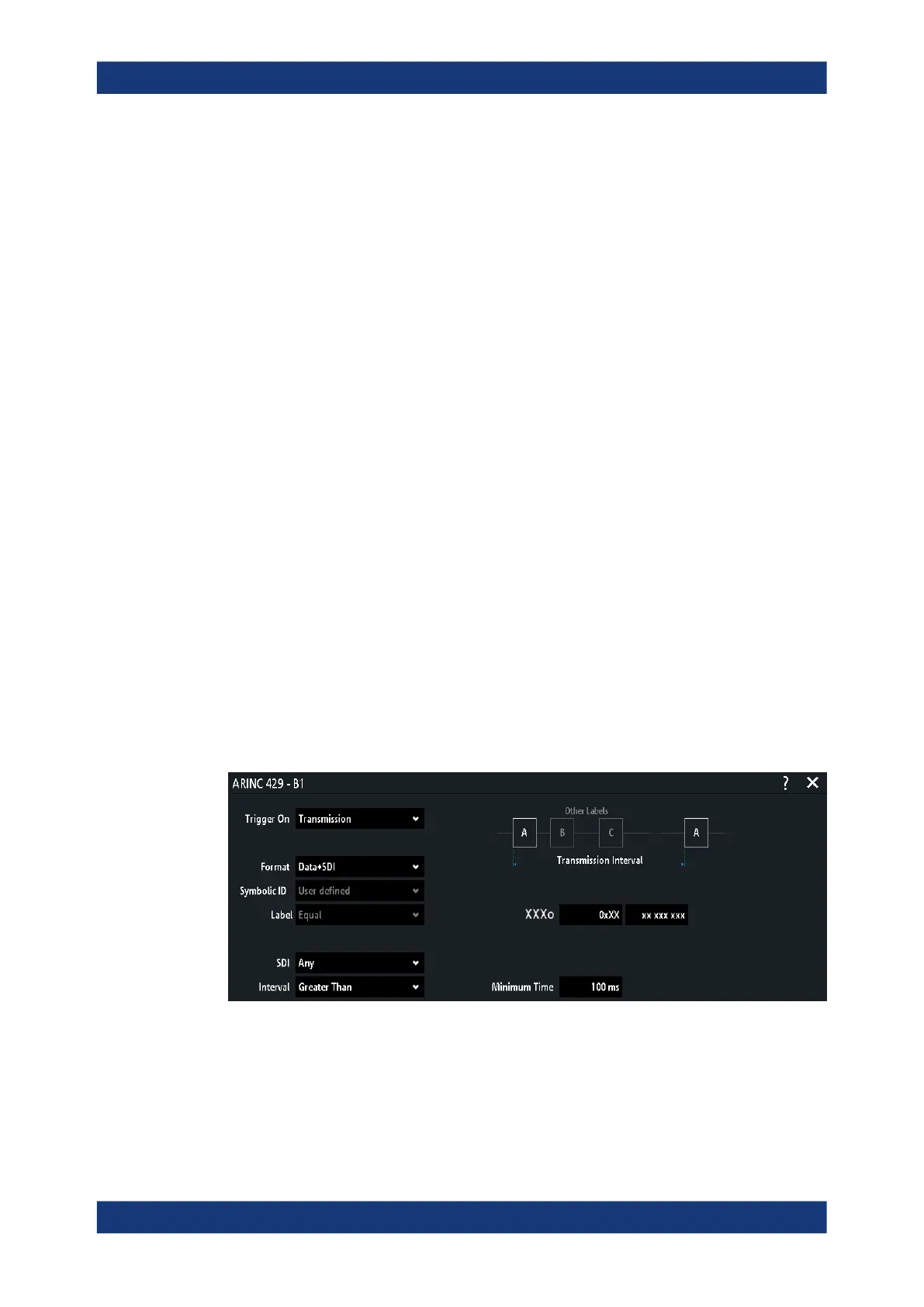

Transmission
Set a transmission conditions to be triggered on.
See also:
●
"Symbolic ID" on page 336
●
"Label" on page 335
●
"Data" on page 336
Interval ← Transmission
Sets the condition how the decoded value is compared with the defined range.
Remote command:
TRIGger:A:ARINc:TTIMe:CONDition on page 706
ARINC 429 (option R&S
RTM-K7)
