Signal generation (option R&S RTM-B6)
R&S
®
RTM3000
421User Manual 1335.9090.02 ─ 09
Remote command:
PGENerator:PATTern:PWM:DCYCle on page 794
Direction
Changes the direction of motor rotation.
Remote command:
PGENerator:PATTern:PWM:DIRection on page 794
Enable
Switches the motor on or off if the motor driver uses a dedicated enable signal.
Remote command:
PGENerator:PATTern:PWM:ENABle on page 794

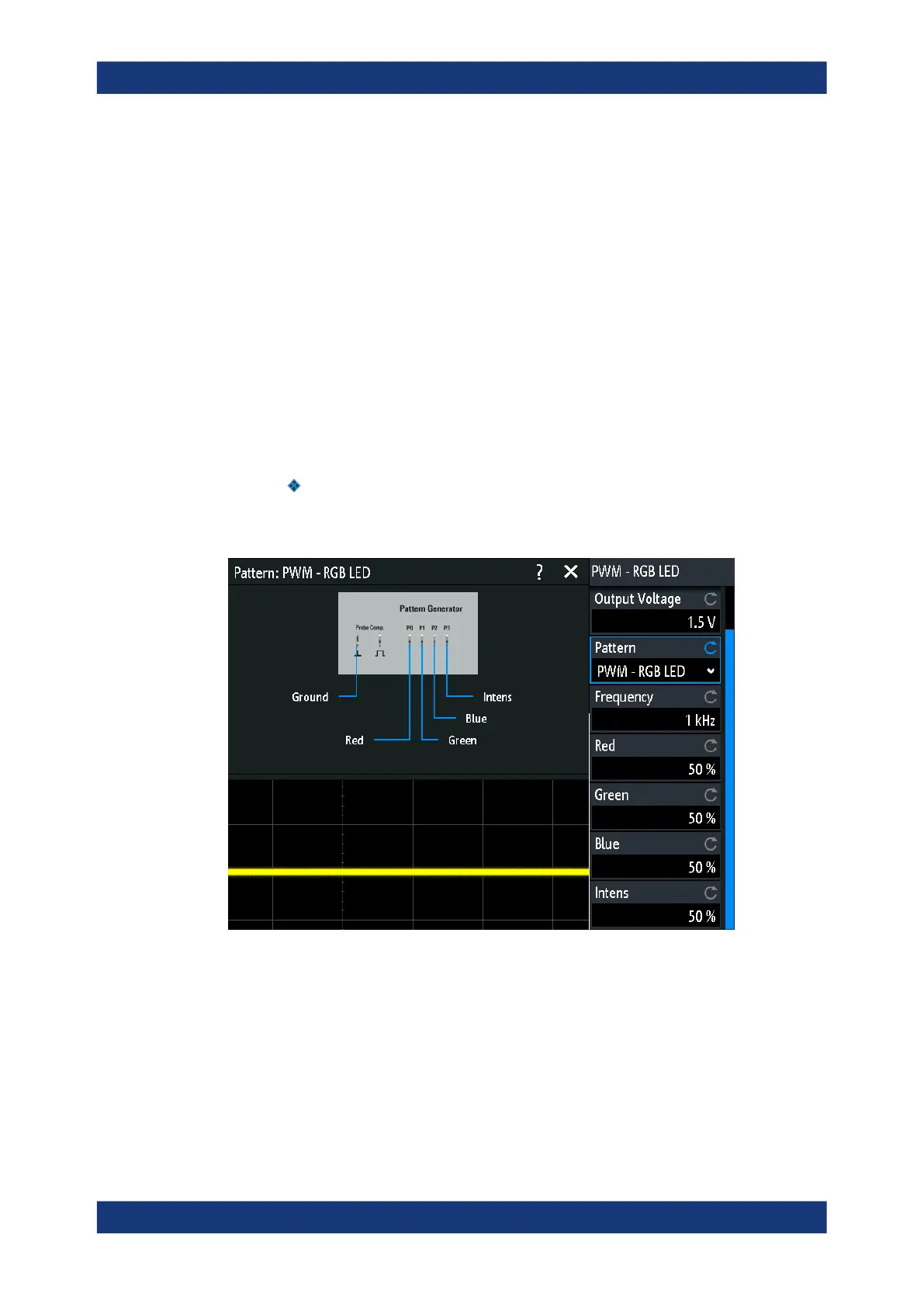

16.2.7.2 PWM - RGB LED signals
Access:
"Menu" > "Pattern Gen." > "Pattern" = "PWM - RGB-LED"
Using the pattern "PWM - RGB LED Signals", you can generate signals to control, for
example, the colors of LED strip lights.
Red, Green, Blue
Set the duty cycle of the red, green, and blue colors, which corresponds to the color
intensity.
Remote command:
PGENerator:PATTern:LED:RED on page 794
PGENerator:PATTern:LED:GREen on page 794
PGENerator:PATTern:LED:BLUE on page 794
