18.2.7 Saving the results
Once the advanced jitter analysis is enabled, you can save the results as a report or
export the waveforms for future references.
Report

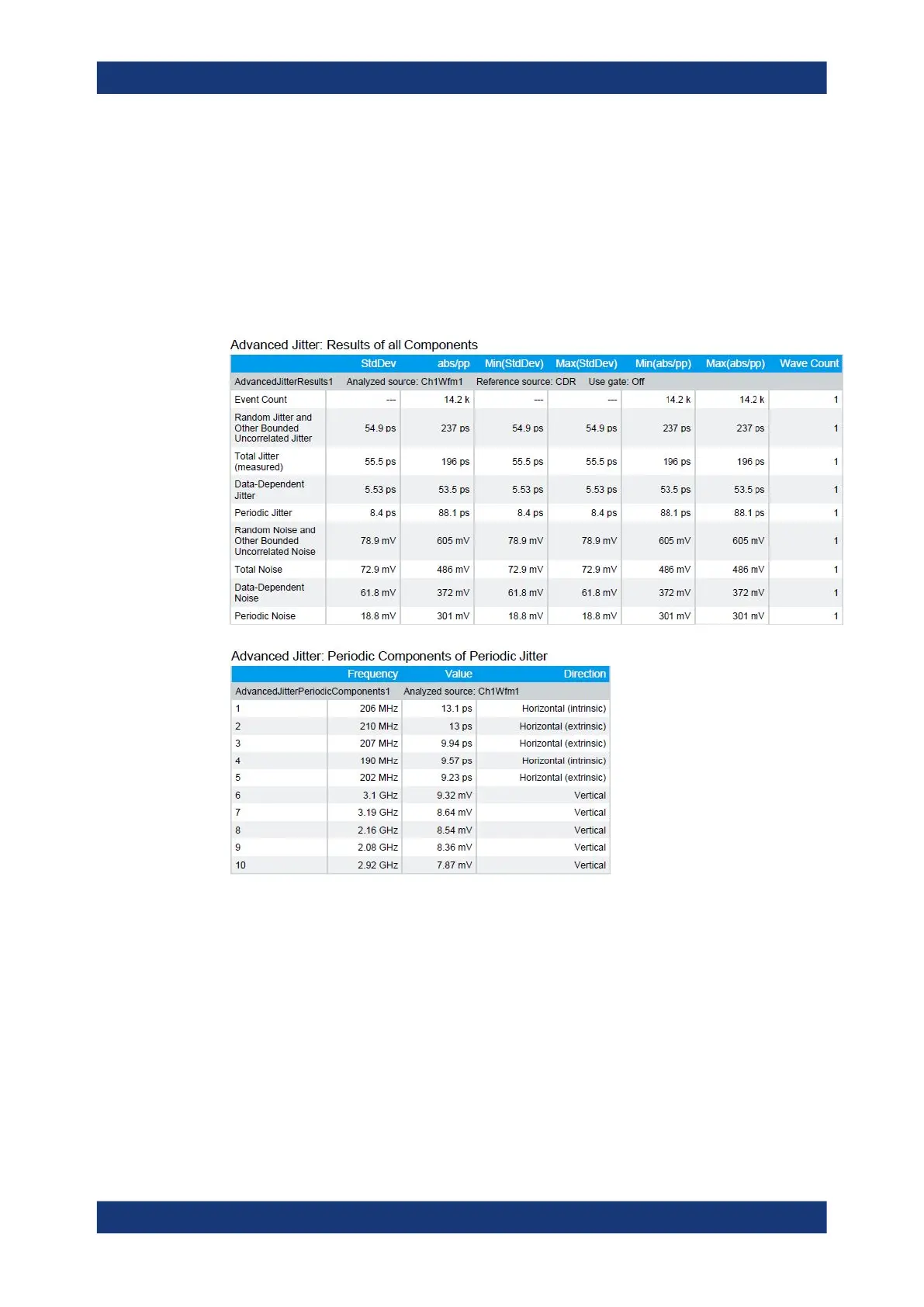

You can save a report of the advanced jitter analysis, that displays the "Adv. Jitter
Results" table and the "Periodic components" table.
See also Chapter 12.4, "Reports", on page 507.
Exporting the output signal
The following output signals from the advanced jitter analysis can be exported in the
file formats *.csv, *.bin and *.xml:
●
Step response
●
Bathtub
●
Histograms
●
Tracks
●
Spectrum
Advanced jitter and noise (option R&S
RTP- K133/K134)
