Protocol analysis
R&S
®
RTP
704User Manual 1337.9952.02 ─ 12
13.13.3 D-PHY trigger
13.13.3.1 D-PHY trigger settings
Access: [Protocol] > "Shortcuts" tab > "Setup trigger"
In this section, all trigger settings are described. Their availability on the instrument
depends on the selected USB protocol type and trigger type. The user interface of the
instrument displays only appropriate settings and guides you through the trigger setup.
For a list of supported trigger conditions, refer to data sheet.
Make sure that:
●
In the [Protocol] > "Setup" tab:
– The correct "Protocol" is selected.
– The data sources of the serial bus are channel signals.
●

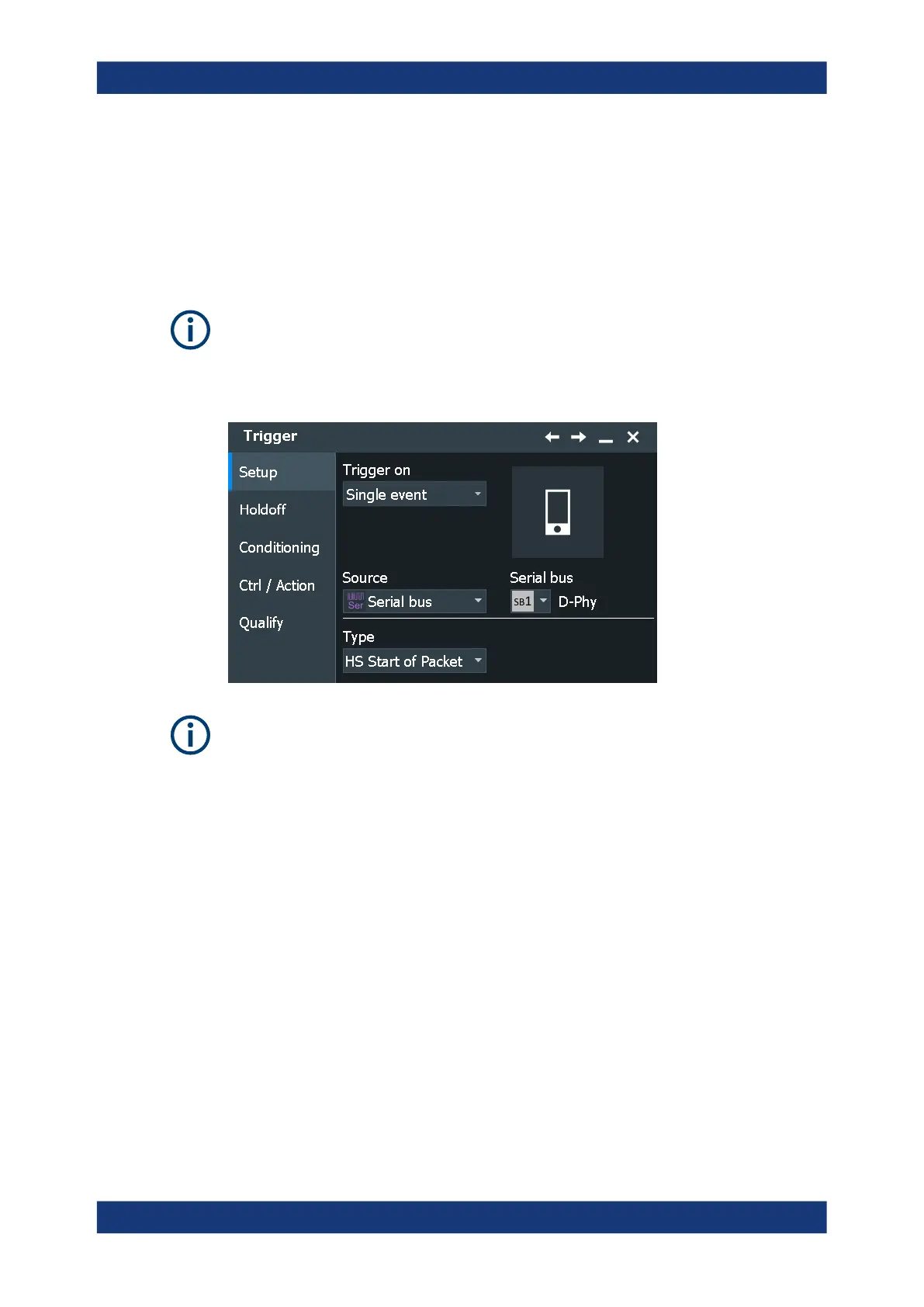

In the "Trigger" > "Setup" tab:
– The "Trigger on" = "Single event"
– The trigger "Source" = "Serial bus".
– The correct "Serial bus" is selected.
Serial bus
Selects the serial bus to be triggered on. Make sure to select the correct bus before
you enter the settings.
To trigger on a serial bus, the signals sources must be channel signals. If the data or
clock source is a math or reference waveform, you cannot trigger on that bus.
Remote command:
TRIGger<m>:SOURce:SBSelect on page 1553
Protocol
Defines the protocol type of the selected serial bus.
D-PHY (ption R&S
RTP-K42)
