Acquisition and waveform setup
R&S
®
RTP
188User Manual 1337.9952.02 ─ 12

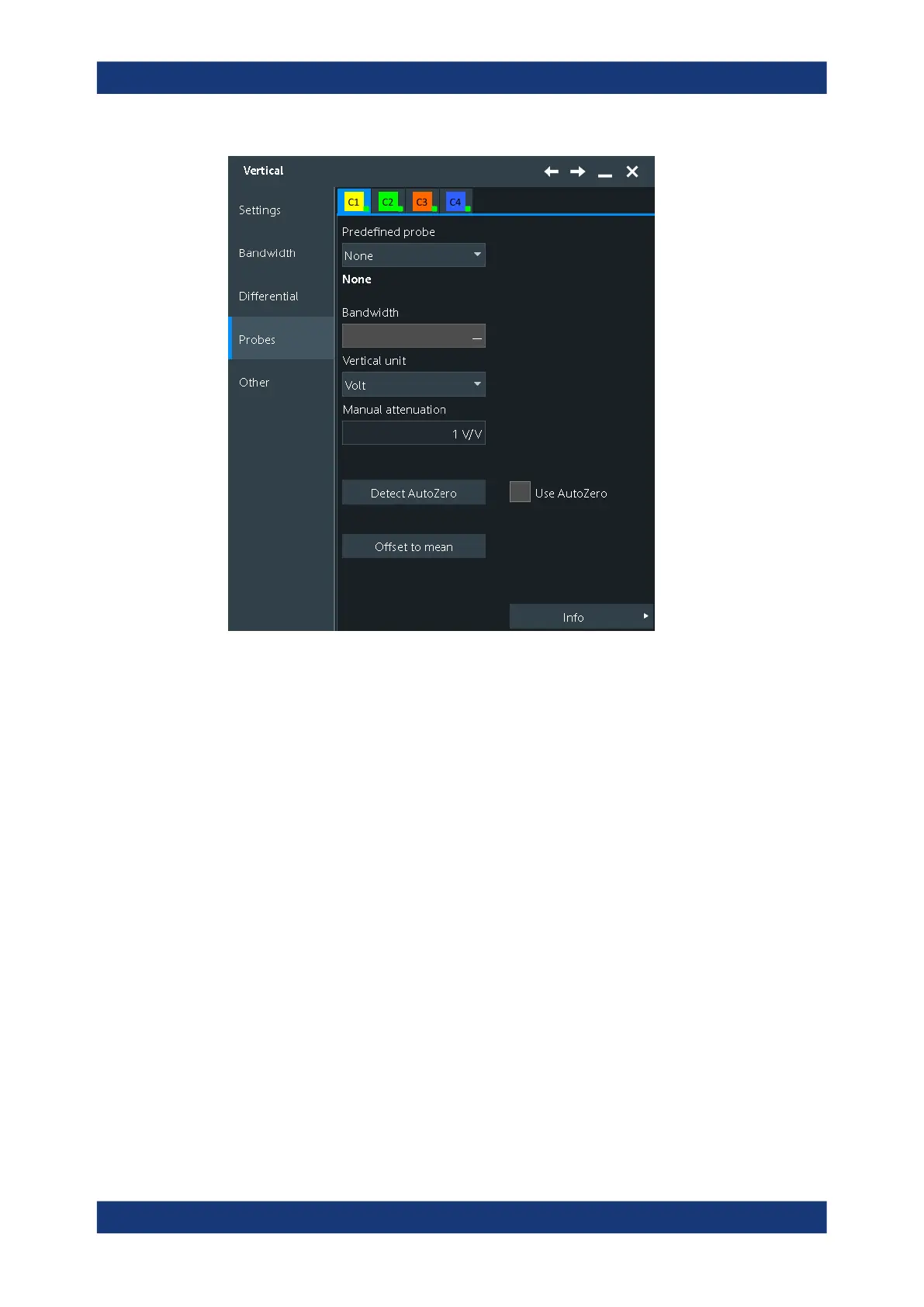

Figure 5-16: Probe setup for an unknown probe
Set the unit and the attenuation or gain of the probe: "Vertical unit, Attenuation, Gain"
on page 172.
5.6.9 Probe attributes
To check the attributes of the connected probes, select "Info" in the "Vertical" >
"Probes" tab.
For a specification of the probe parameters, refer to the data sheet.
Probes
