Duty cycle
Sets the duty cycle for a square waveform. The duty cycle expresses the percentage of
the period during which the waveform is active, i.e. the signal state is high.
Remote command:
WGENerator<m>:MODulation:FM:DCYCle on page 2225
15.1.3.5 FSK modulation

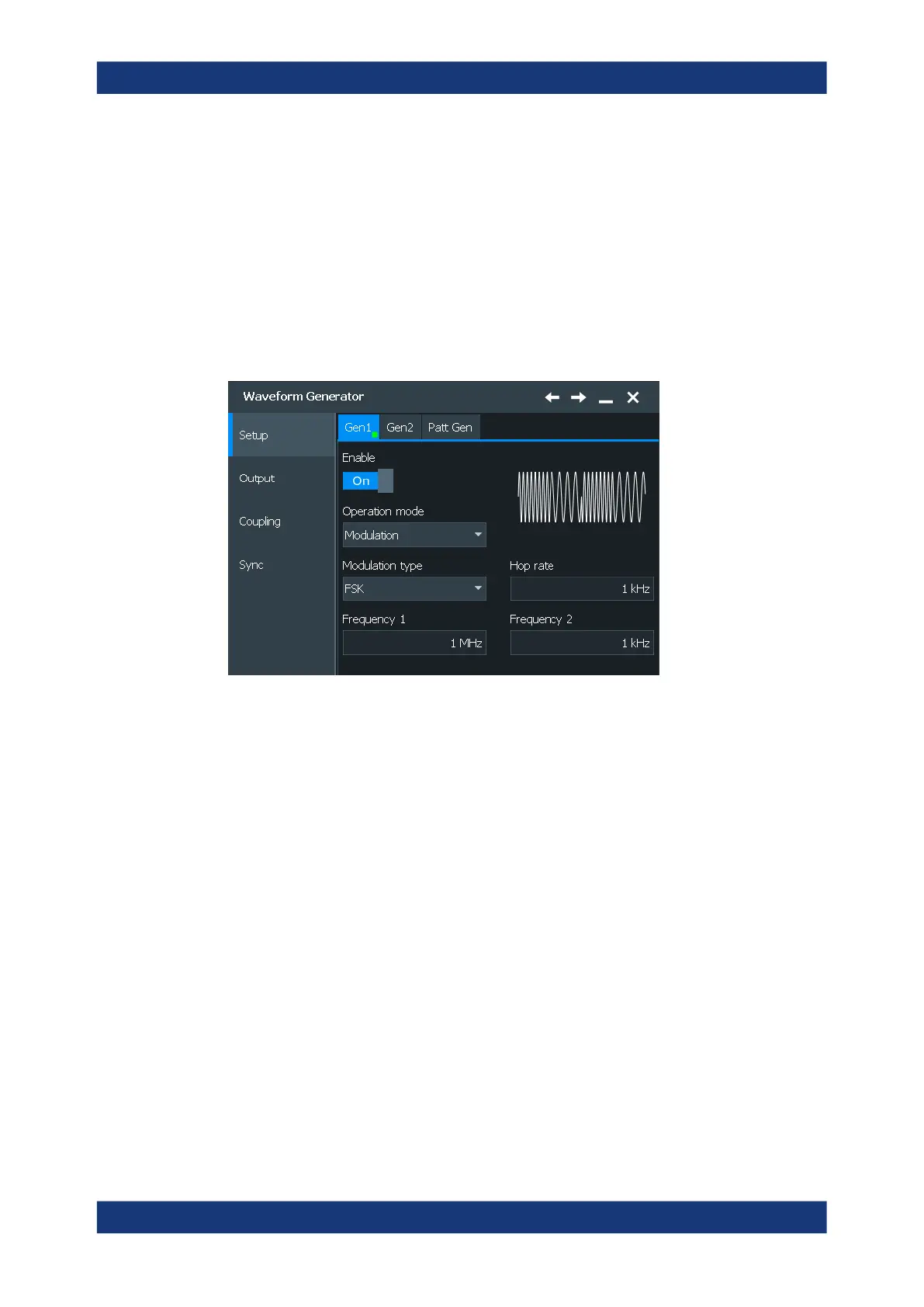

For frequency shift keying (FSK) modulation, the signal switches between Frequency 1
and Frequency 2 at a Hop rate.
Frequency 1
Sets the frequency of the first signal in FSK modulated signal.
Remote command:
WGENerator<m>:MODulation:FSK:FONE on page 2226
Frequency 2
Sets the frequency of the second signal in FSK modulated signal.
Remote command:
WGENerator<m>:MODulation:FSK:FTWO on page 2227
Hop rate
Sets the hop rate, the frequency at which signal switches between Frequency 1 and
Frequency 2.
Remote command:
WGENerator<m>:MODulation:FSK[:RATE] on page 2227
15.1.4 Sweep
In the sweep mode, the R&S RTP generates a signal whose frequency gradually
changes from the Start frequency to the Stop freuqency for a certain Sweep time.
Setup of the waveform generator
