Protocol analysis
R&S
®
RTP
700User Manual 1337.9952.02 ─ 12
13.13.2 D-PHY configuration

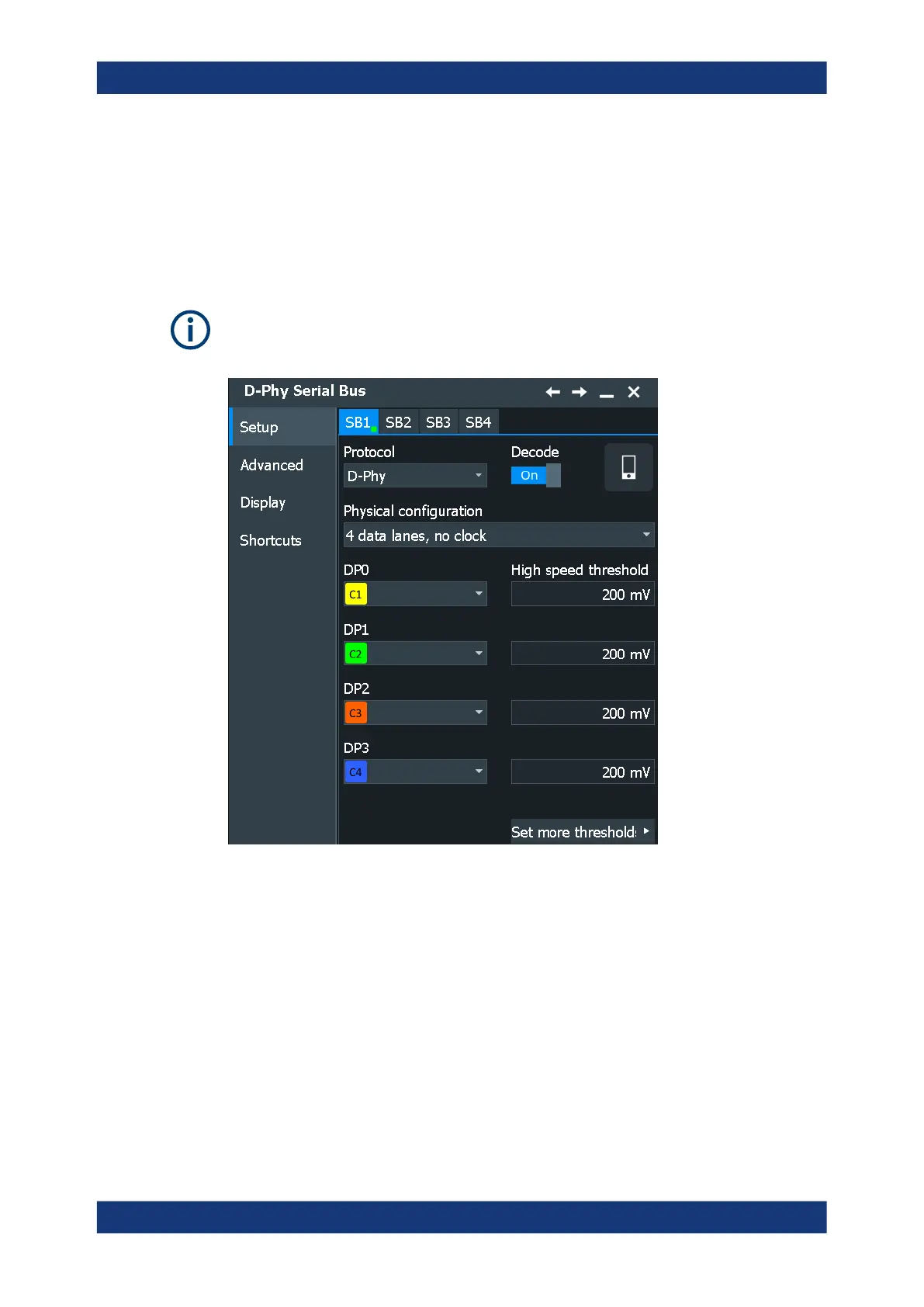

13.13.2.1 D-PHY configuration settings
Access: [Protocol] key > "Setup" tab > "Protocol = D-PHY"
Make sure that the tab of the correct serial bus is selected.
See also: Chapter 13.1.1, "Setup - general settings", on page 512
Variant
Selects the protocol running on the interface. You can select between the Display
Serial Interface (DSI) and Camera Serial Interface (CSI-2).
Remote command:
BUS<m>:DPHY:VARiant on page 1845
Physical configuration
Selects the number of data lanes and if the clock lane and low power are available.
Remote command:
BUS<m>:DPHY:CONFig on page 1843
D-PHY (ption R&S
RTP-K42)
