Remote commands
Remote commands to retrieve decode results are described in Chapter 22.17.18.3,
"Decode results", on page 1994.
13.17.5 Search on decoded MDIO data
Using the search functionality, you can find various events in the decoded data. You
can find the same events that you can trigger on, and even many more, since several
event types can also be combined.
Before you can start the search, you have to configure the bus correctly and acquire
decoded data.
To search on decoded data, set the search source to "SerBus" for the configured proto-
col.
For general information on how to handle the search functionality, see Chapter 11,
"Search functions", on page 448.
If you need information on how to get started with searching MDIO data, see Chap-
ter 13.17.5.3, "Searching MDIO data", on page 800. Otherwise proceed with the
MDIO search setup.
13.17.5.1 MDIO search setup

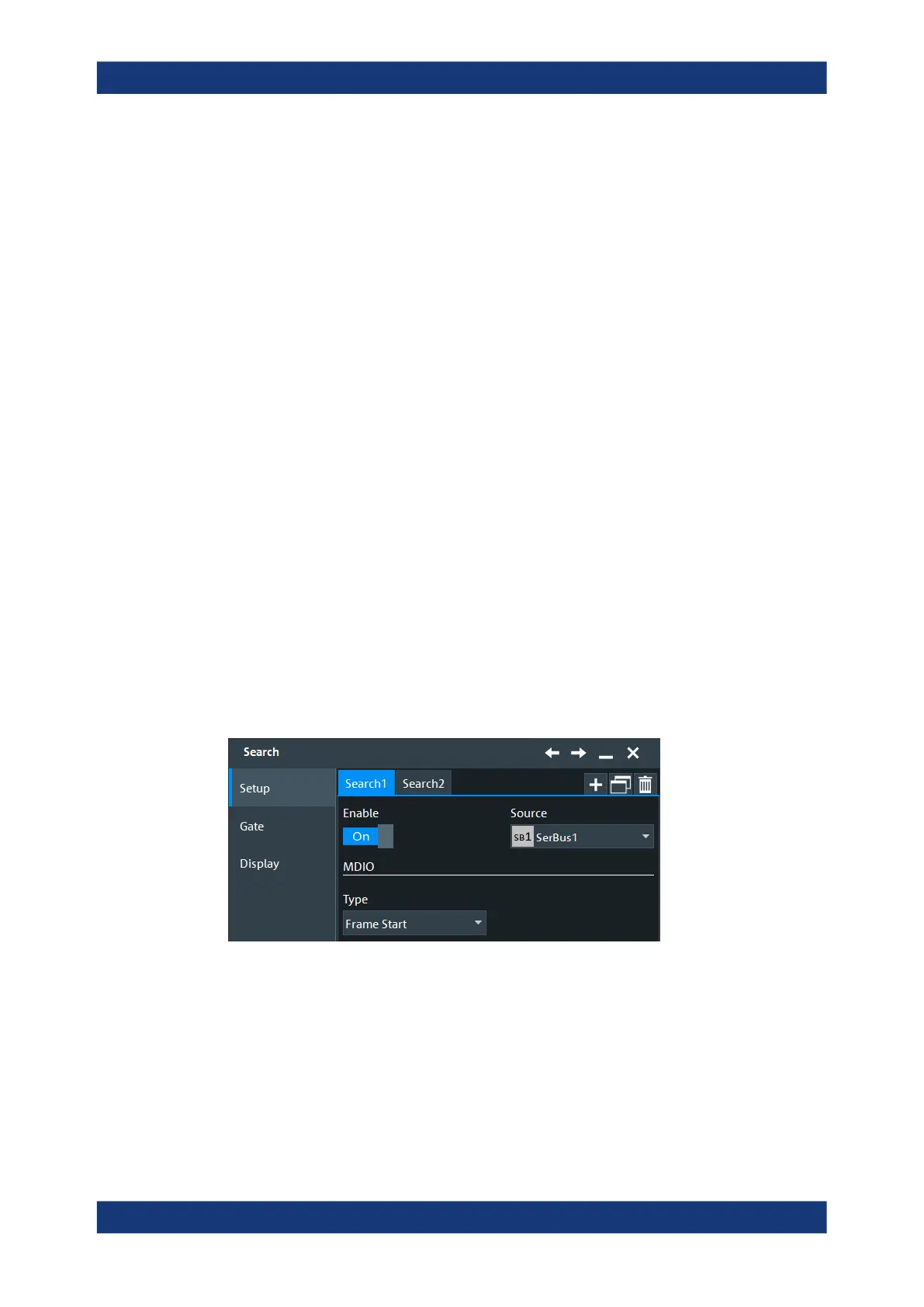

Access: [Protocol] > "Shortcuts" tab > "Setup search"
Search types
Selects the event types to be searched.
Available event types are "Frame Start", "Frame Stop", and "Data".
Only if search criteria type "Data" is selected, individual search parameters can be
specified in the tabs below the "Search criteria" dialog. For these parameters, see "ST"
on page 799, "OP" on page 799, "PHYAD/PRTAD" on page 799, "REGAD/DEVAD"
on page 799, and "DATA/ADDRESS" on page 799.
Remote command:
SEARch:TRIGger:MDIO:TYPE on page 2000
