Instrument setup
R&S
®
RTP
116User Manual 1337.9952.02 ─ 12
●
"Projector only": the instrument's user interface is only shown on the external dis-
play, the instrument display is off.
●
"Additional settings": opens the Windows configuration for display settings.

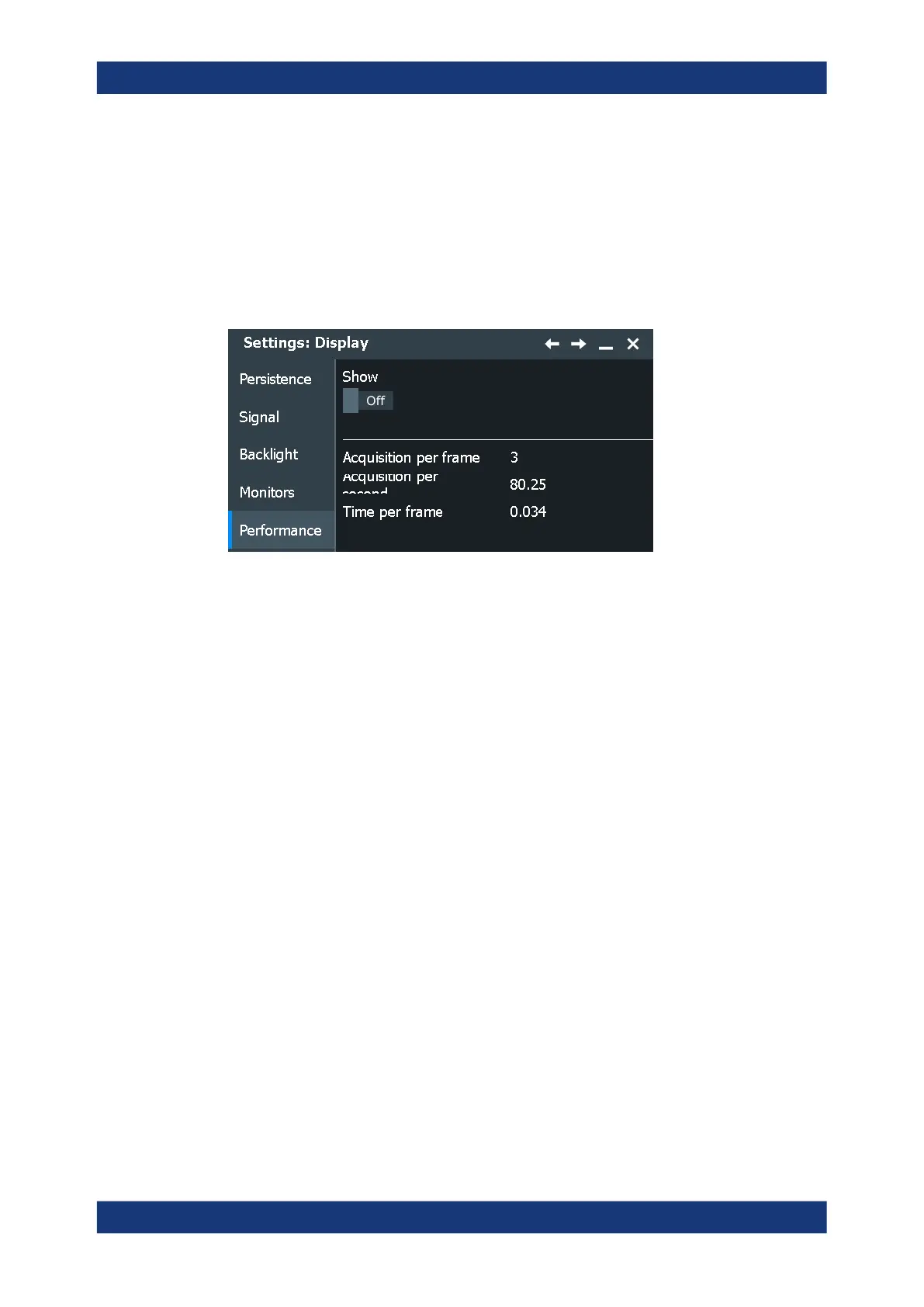

4.4.5 Performance settings
Access: "Menu" > "Settings" > "Display" > "Performance"
Show
Displays the "Performance" reults box.
The "Performance" result box shows information on the current acquisition perfor-
mance values of the R&S RTP.
The instrument groups acquired waveforms together in a frame, and displays the frame
content. The maximum number of frames displayed per second is about 30. The cur-
rent number of frames per second is indicated as reciprocal "Time per frame". If the
time scale decreases, and thus the number of acquisitions per second also decreases,
the number of acquisitions per frame can drop to 1.
4.5 Frontpanel settings
In the "Frontpanel" dialog box, you can assign functions to keys and knobs, adjust the
Navigation knob and adjust the brightness of the keys.
4.5.1 Hardkeys: function assignment
Access: "Settings" > "Frontpanel" > "Hardkeys"
Frontpanel settings
