5.4.5 History settings
The history settings are described in Chapter 7.4.2, "History setup", on page 310.
5.5 Vertical setup

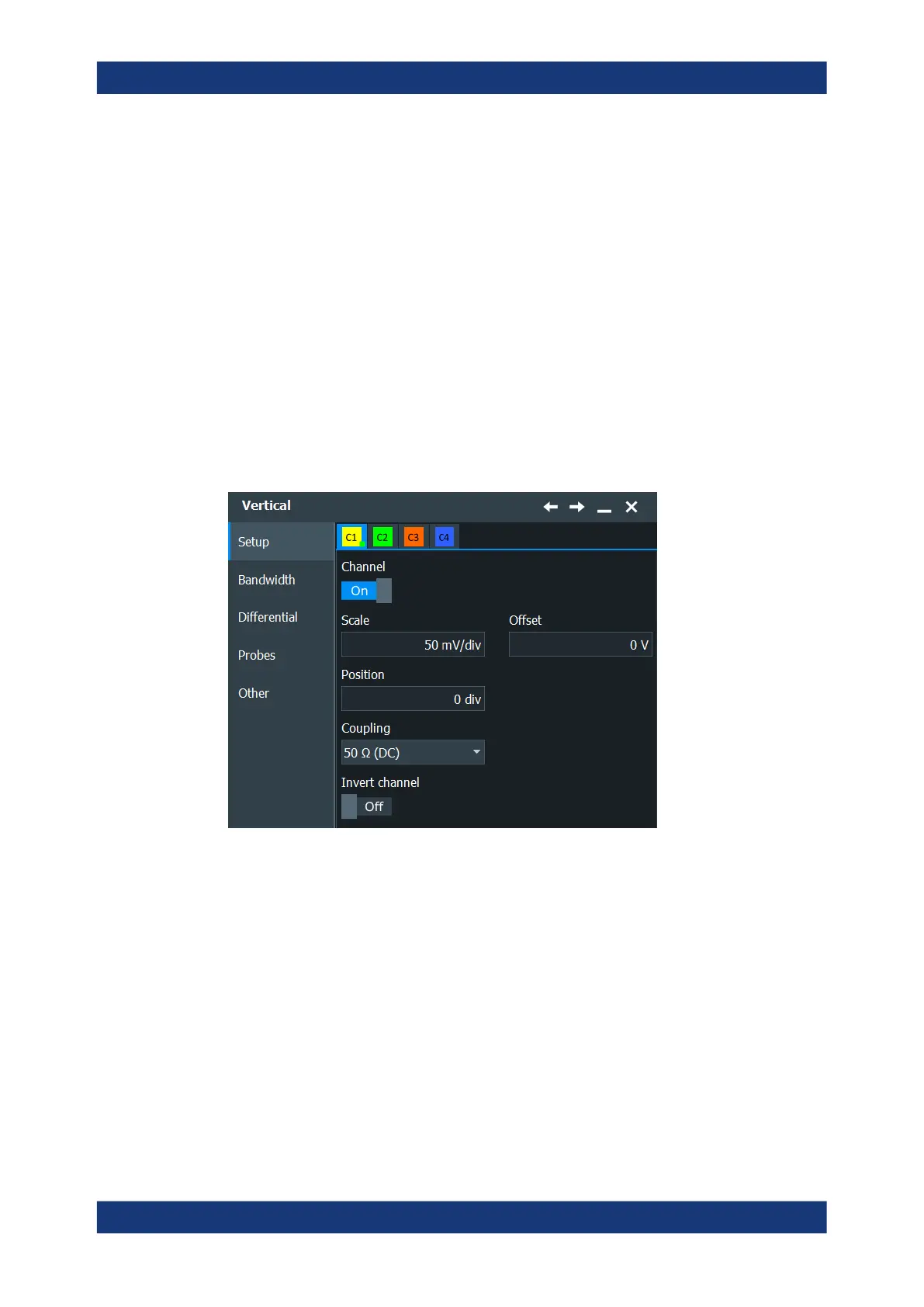

The "Vertical" dialog box contains all channel-dependent settings and information.
5.5.1 Setup settings
Access: "Menu" > "Vertical" > "Setup"
The "Setup" tab provides all basic vertical settings. The channels are listed in horizon-
tal subtabs. Make sure to select the correct channel tab before you enter the settings.
Channel On/Off........................................................................................................... 159
Scale........................................................................................................................... 160
Offset...........................................................................................................................160
Position....................................................................................................................... 160
Coupling......................................................................................................................160
Invert channel..............................................................................................................161
Channel On/Off
Switches the channel signal on or off. The signal icon appears on the signal bar. The
waveform of the last acquisition is displayed in the diagram.
Remote command:
CHANnel<m>:STATe on page 1199
