4.3.9 Peak list appearance settings

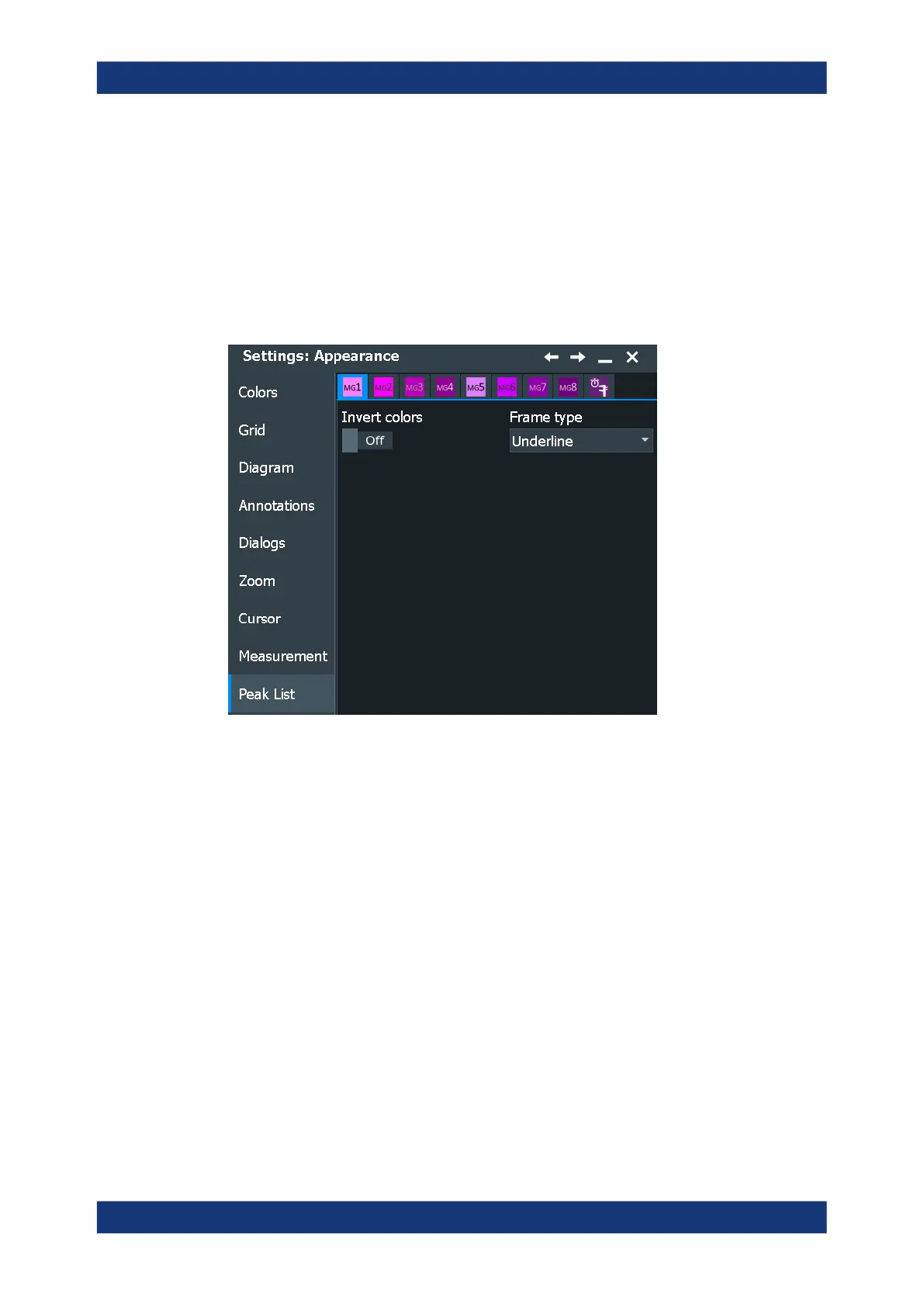

Access: "Settings" > "Appearance" > "Peak List" tab
For peak lists measurements only, requires option R&S RTP-K37. You can enable the
"Peak list" for "Spectrum" measurements, see Chapter 8.2.7, "Spectrum measure-
ments", on page 369.
In this dialog, you can configure the look of the labels for peaks in the spectrum dia-
gram.
Frame type
Defines the layout of the labels (full border, underline, or none).
Remote command:
MEASurement<m>:RESult:LABorder on page 1176
Invert
Displays black font on white background using the "Full border" frame type.
Remote command:
MEASurement<m>:RESult:INVerse on page 1176
4.3.10 Mask appearance settings
Access: "Settings" > "Appearance" > "Mask"
In this dialog, you can define the settings for mask and hit display. See also Chap-
ter 10, "Mask testing", on page 424 .
Appearance settings
