13.7.3 MIL-STD-1553 trigger

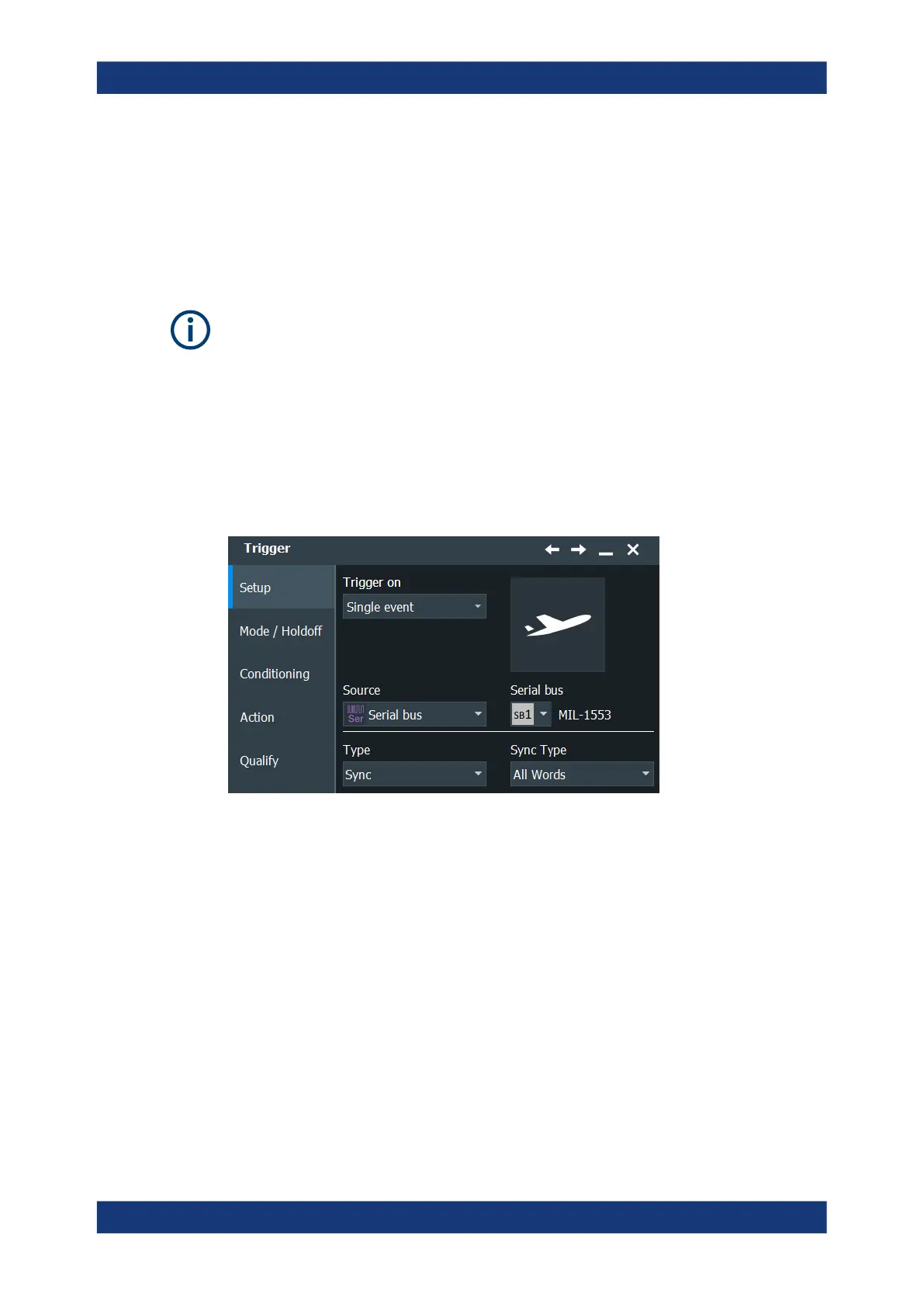

13.7.3.1 Trigger settings MIL-STD-1553
Access: [Protocol] > "Shortcuts" tab > "Setup trigger"
Make sure that:
●
In the [Protocol] > "Setup" tab:
– The correct "Protocol" is selected.
– The data sources of the serial bus are channel signals.
●
In the "Trigger" > "Setup" tab:
– The "Trigger on" = "Single event"
– The trigger "Source" = "Serial bus".
– The correct "Serial bus" is selected.
Trigger Type
Selects the trigger type for MIL-STD-1553 analysis.
"Sync"
Triggers on a sync impulse.
"Word"
Triggers on the selected word type.
MIL-1553 (option R&S RTP-K6)
