5.8.2 Vertical setup of differential signals

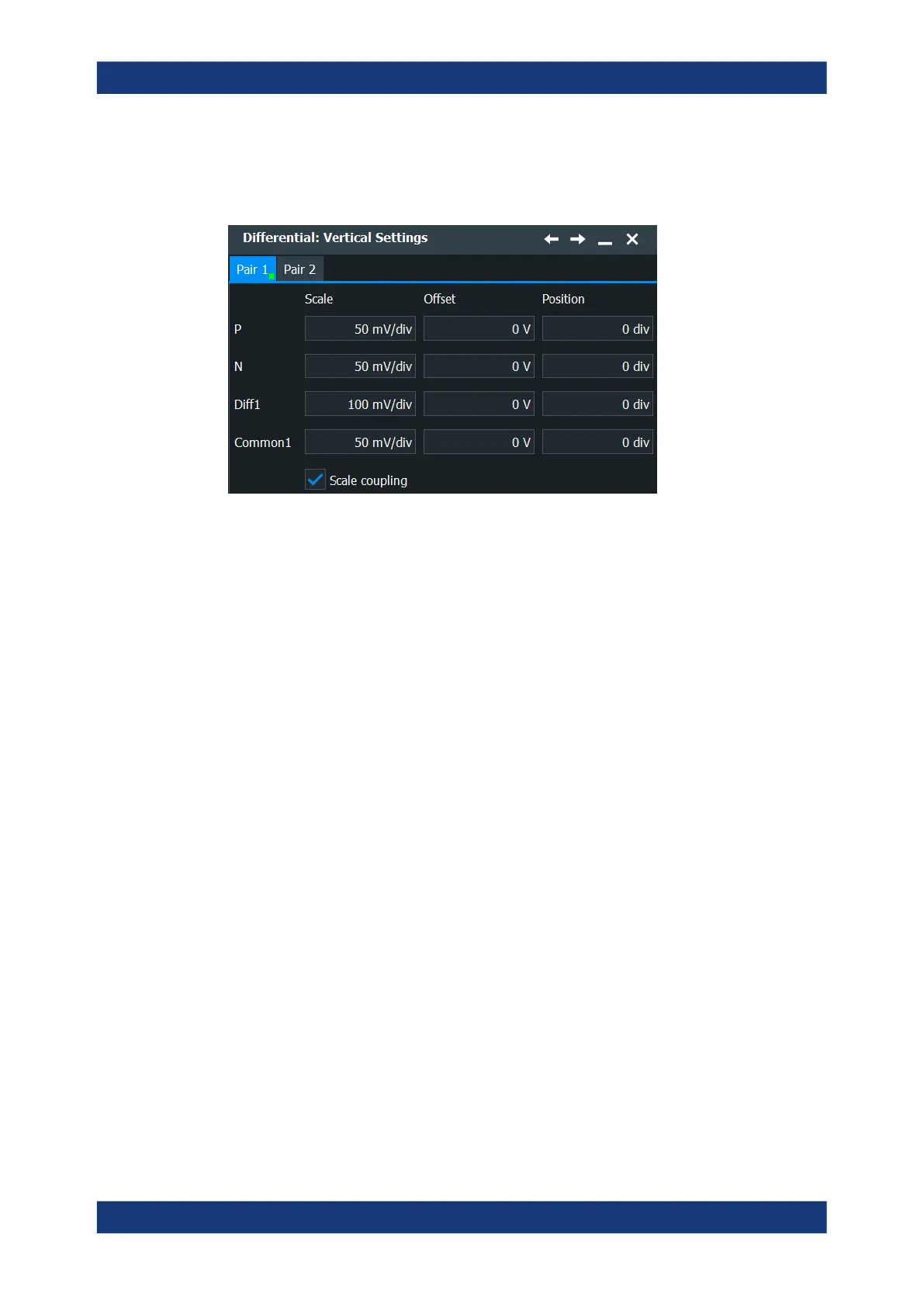

Access: "Menu" > "Vertical" > "Differential" > "Vertical Setup"
Scale
Sets the vertical scale of differential and common mode waveforms.
Vertical settings of P and N output are the vertical settings of the input channels.
Remote command:
DIFFerential<m>:COMMon:SCALe on page 1245
DIFFerential<m>:DIFFerential:SCALe on page 1245
Scale coupling
If enabled, the vertical scales of P, N, differential and common mode waveforms are
coupled. The scales are related as follows:
VertScale
P
= VertScale
N
= VertScale
CM
= VertScale
Diff
/2
You can disable the scale coupling and set an individual scale for each waveform.
Remote command:
DIFFerential<m>:COUPling on page 1245
Offset
Sets the offset of differential and common mode waveforms.
Vertical settings of P and N output are the vertical settings of the input channels.
Remote command:
DIFFerential<m>:COMMon:OFFSet on page 1246
DIFFerential<m>:DIFFerential:OFFSet on page 1246
Position
Sets the vertical position of differential and common mode waveforms.
Vertical settings of P and N output are the vertical settings of the input channels.
Remote command:
DIFFerential<m>:COMMon:POSition on page 1246
DIFFerential<m>:DIFFerential:POSition on page 1246
