Protocol analysis
R&S
®
RTP
806User Manual 1337.9952.02 ─ 12
●
Data Selection: DATA0, DATA1, DATA2, MDATA, (for USB 1.x only: AND-ing with
user defined PID check, payload and CRC values)
●
Handshake Packet Setup: Triggering on handshake packet, trigger with specific
settings: ACK, NAK, NYET, STALL or ERR handshake packet
●
Protocol Error: Triggering on PID/check error, CRC5 error, CRC16 (for USB 1.x
only), frame length error (for USB 1.x only)
●
Bus Event: Triggering on reset, resume, or suspend
13.18.2 USB 2.0 configuration
If you need information on how to get started with configuring the USB 2.0 setup, see
Chapter 13.18.2.2, "Configuring USB signals", on page 810. Otherwise proceed with
the configuration settings.
13.18.2.1 USB 2.0 configuration settings
Access: [Protocol] > "Setup" tab > "Protocol" = USB 2.0
Make sure that the tab of the correct serial bus is selected.

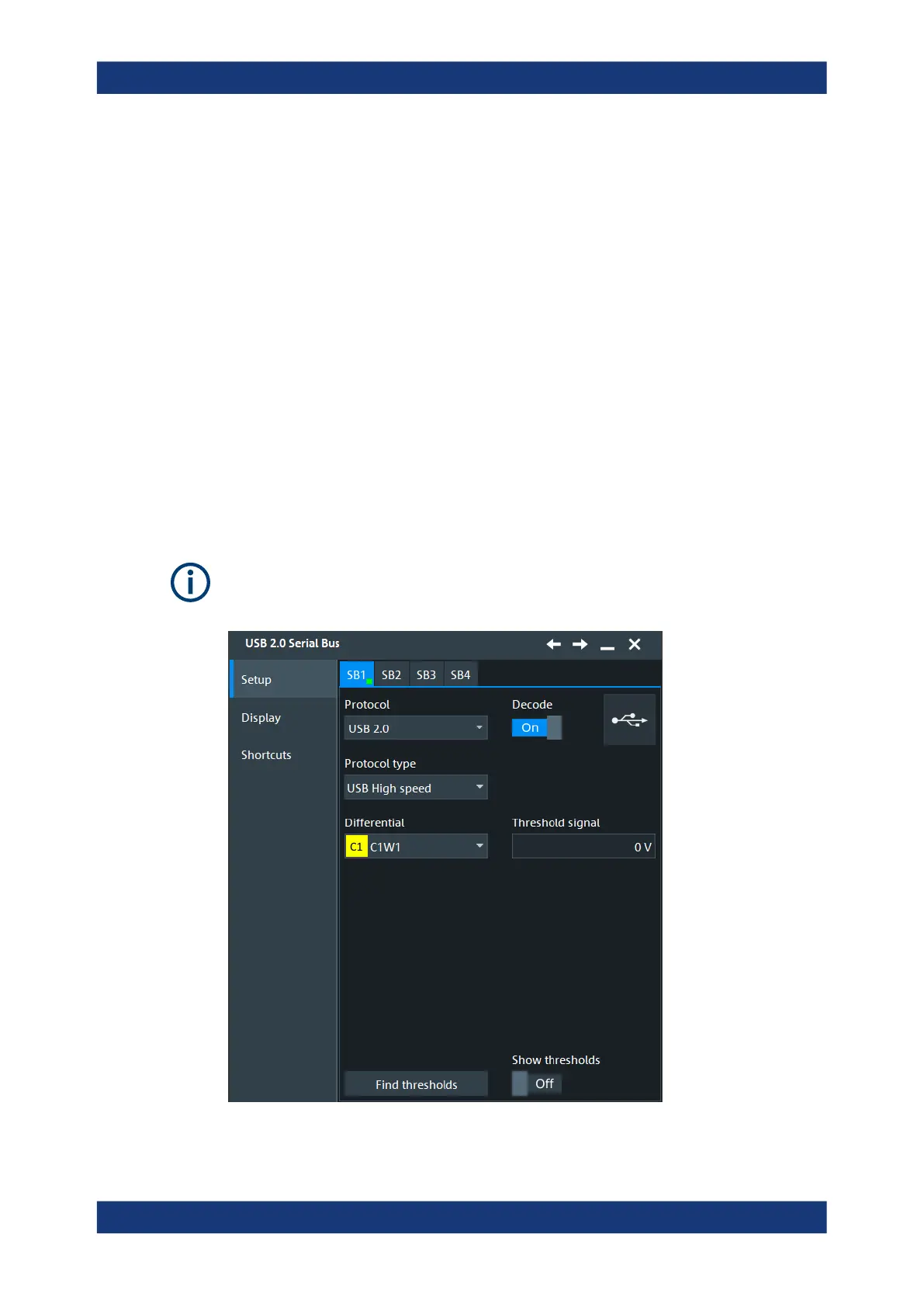

Figure 13-25: Serial bus protocol configuration dialog
USB (option R&S RTP-K60)
