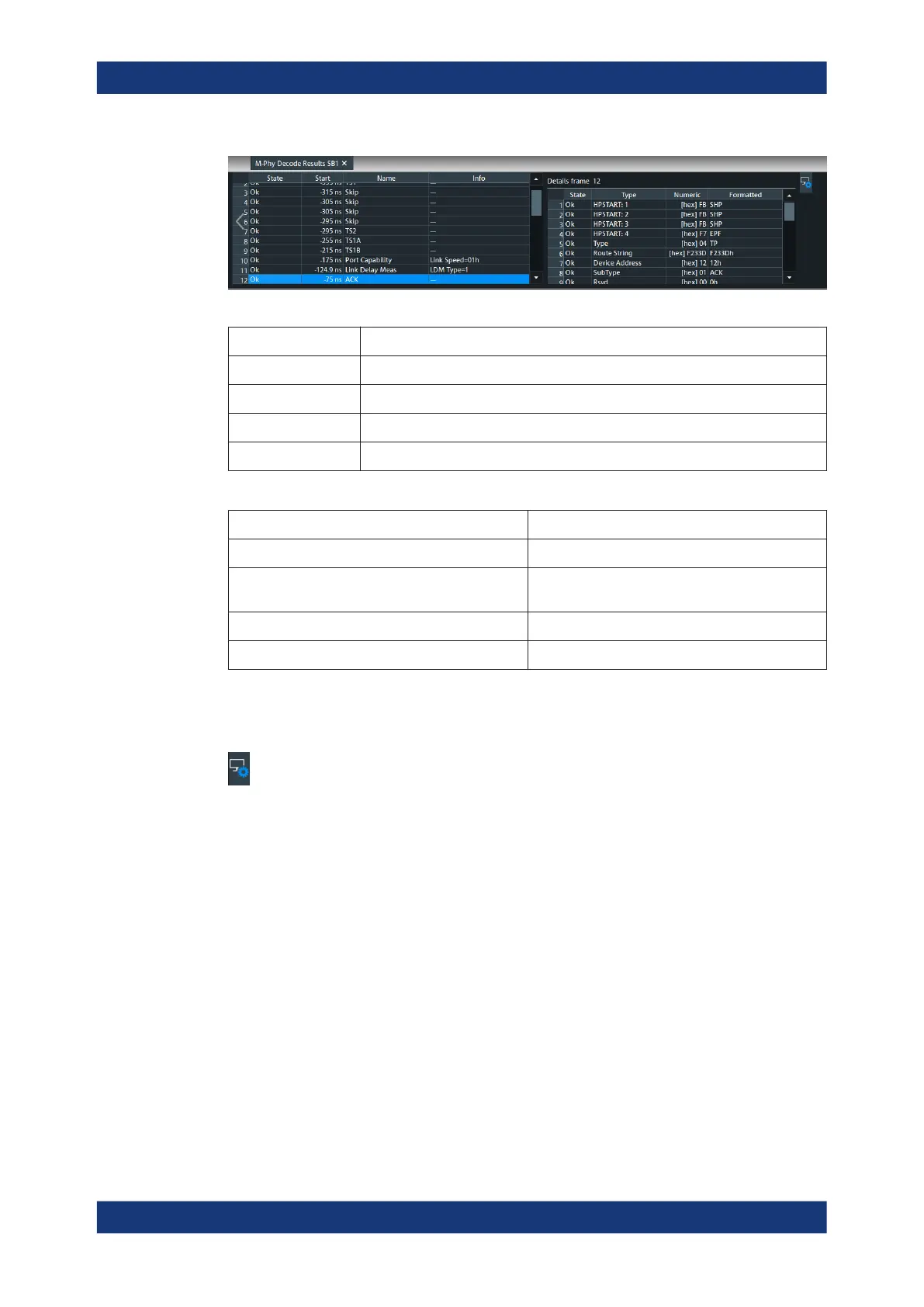

Table 13-20: Content of the Decode results table
Column Description
Frame Frame count
State Overall state of the frame indicating, for example, if the frame is valid or invalid
Start Time of frame start in relation to the trigger point
Info Label on top of the frame
Table 13-21: Content of the Details frame table
Column Description
State State of the field
Type Frame identifier specifying the data or control frame
name
Numeric Hexadecimal value of the field
Formatted Formatted content of the field
Tools
Press "Display settings" in the "Deode Reults" table, to access the "Display" tab.
Remote commands
Remote commands are described in Chapter 22.17.15.3, "Decode results M-PHY",
on page 1892.
13.14.5 Search on decoded M-PHY data
Using the search functionality, you can find various events in the decoded data. You
can find the same events that you can trigger on, and even many more, since several
event types can also be combined.
Before you can start the search, you have to configure the bus correctly and acquire
decoded data.
To search on decoded data, set the search source to "SerBus" for the configured proto-
col.
M-PHY and USB SSIC (option R&S
RTP-K44 and K64)
