For general information on how to handle the search functionality, see Chapter 11,
"Search functions", on page 448.

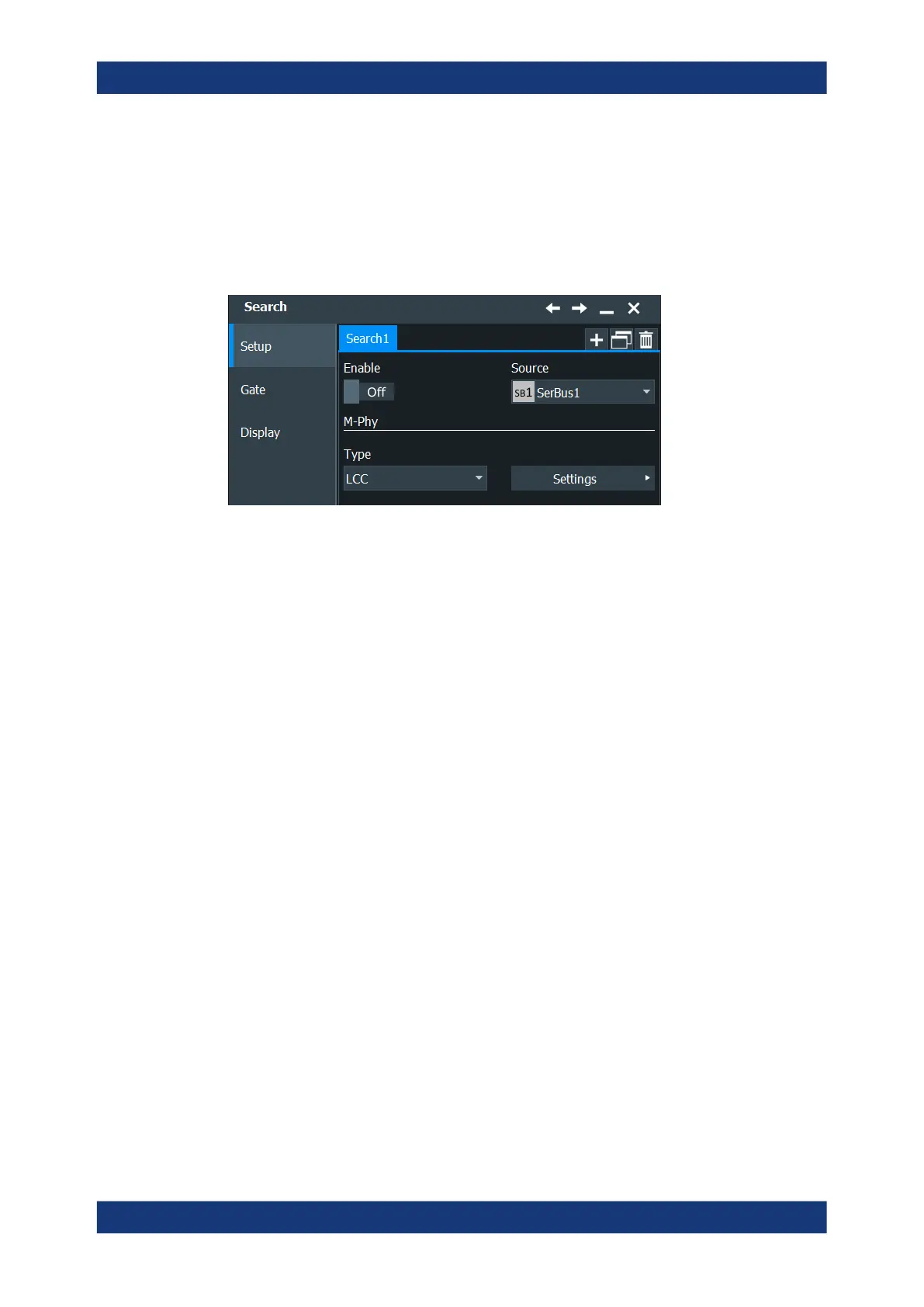

13.14.5.1 M-PHY search setup
Access: [Protocol] > "Shortcuts" tab > "Setup search"
Type
Selects the search type for the selected protocol.
Remote command:
SEARch:TRIGger:MPHY:TYPE on page 1900
Start of frame ← Type
Searches for the start of an M-PHY or a UniPro frame.
Burst ← Type
Searches for an M-PHY burst.
Adapt ← Type
Searches for an M-PHY Adapt frame. This control frame is used for clock/bit synchroni-
zation.
LCC ← Type
Searches for an M-PHY Line Control Command (LCC) frame that matches the speci-
fied LCC Type or any WORD condition.
This control frame is used for configuring the line to a different state or mode depend-
ing on the LCC type.
DL PDU SOF ← Type
Searches for a UniPro Downlink Protocol Data Unit (DL PDU) Start Of Frame (SOF)
that matches the specified TC, Data or Index condition.
DL PDU COF ← Type
Searches for a UniPro DL PDU Continuation Of Pre-empted Frame (COF) that
matches the specified TC, Data or Index condition.
