Waveform generator (Option R&S RTP-B6)
R&S
®
RTP
976User Manual 1337.9952.02 ─ 12
Preset Gen1/Gen2/Patt Gen
Sets the parameters of the generator to their default values. The settings of the gener-
ators are not affected by an instrument preset.They are also not stored in the user-
defined preset.
Remote command:
WGENerator<m>:PRESet on page 2220
PGENerator:PRESet on page 2234
15.3 Output

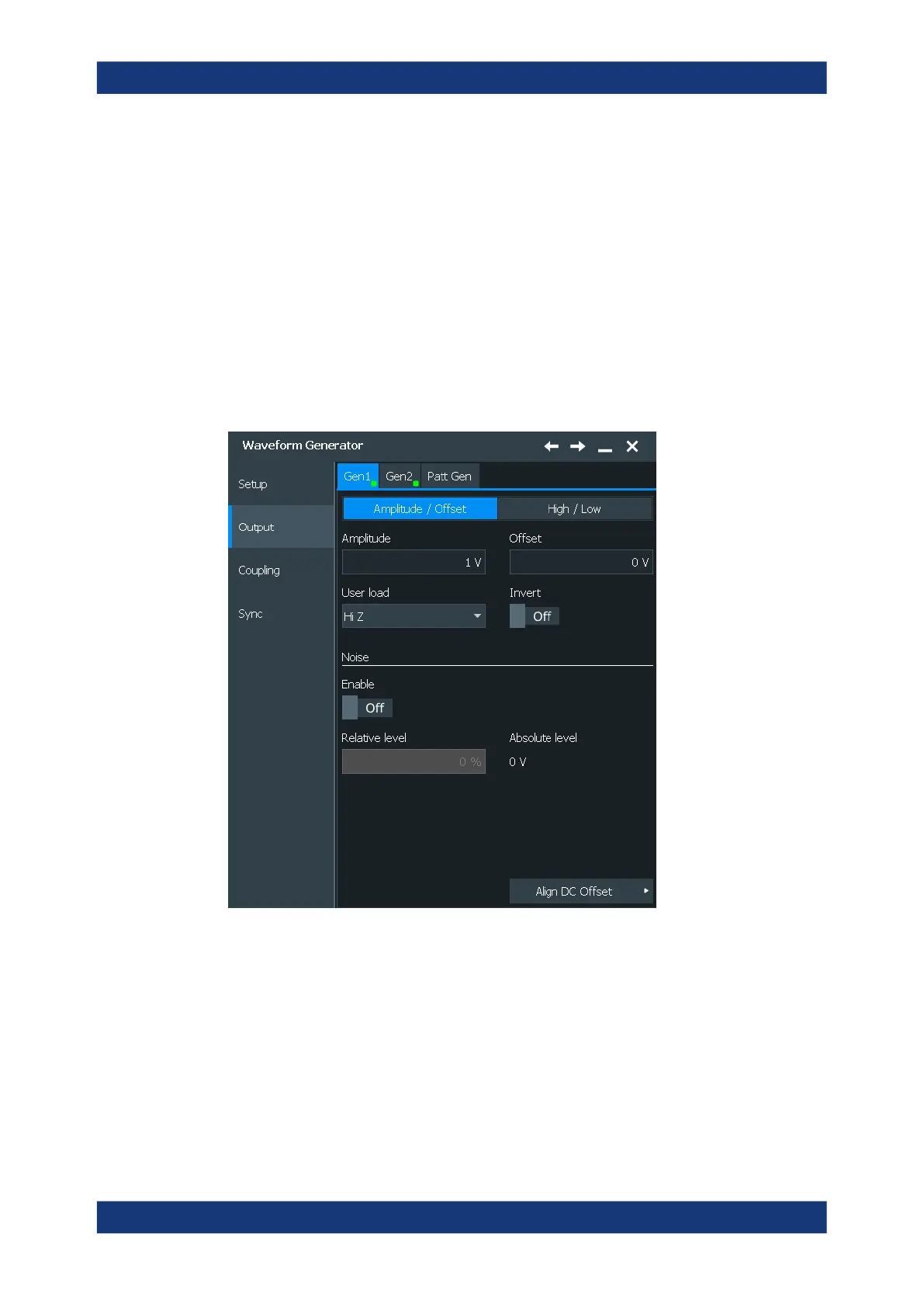

Access: "Menu" > "Apps" > "Generators" > "Gen1" > "Setup" tab.
In this tab you can define the generator output and add noise to the waveform.
15.3.1 Output
Amplitude/Offset - High/Low
Selects how the output is defined: with a defined "Amplitude"/ "Offset" or with
"High"/"Low" values.
Output
