Protocol analysis
R&S
®
RTP
705User Manual 1337.9952.02 ─ 12
Remote command:
BUS<m>:TYPE on page 1548
Type
Selects the trigger type for the D-PHY analysis.
Remote command:
TRIGger<m>:DPHY:TYPE on page 1849

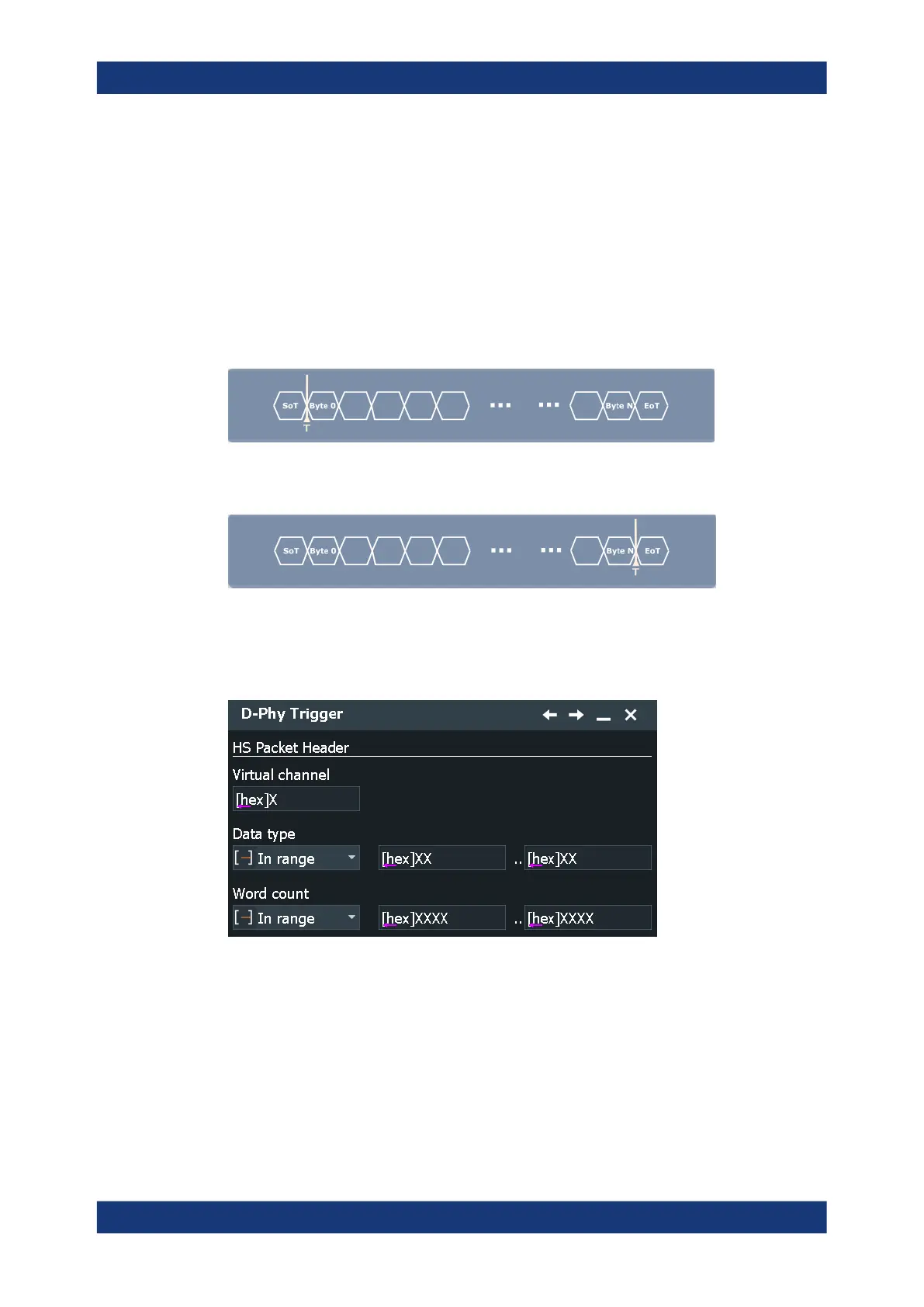

HS Start of Packet ← Type
Sets the trigger to the transmission start of a high-speed packet.
HS End of Packet ← Type
Sets the trigger to the transmission end of a high-speed packet.
HS Packet Header ← Type
Sets the trigger to a packet header of a high-speed package. The header consists of a
data identifier (containing the Virtual Channel and the Data Type) and a Word Count.
You can specify the values each part of the packet header.
HS Data ← Type
Sets the trigger to a specified high-speed data.
D-PHY (ption R&S
RTP-K42)
