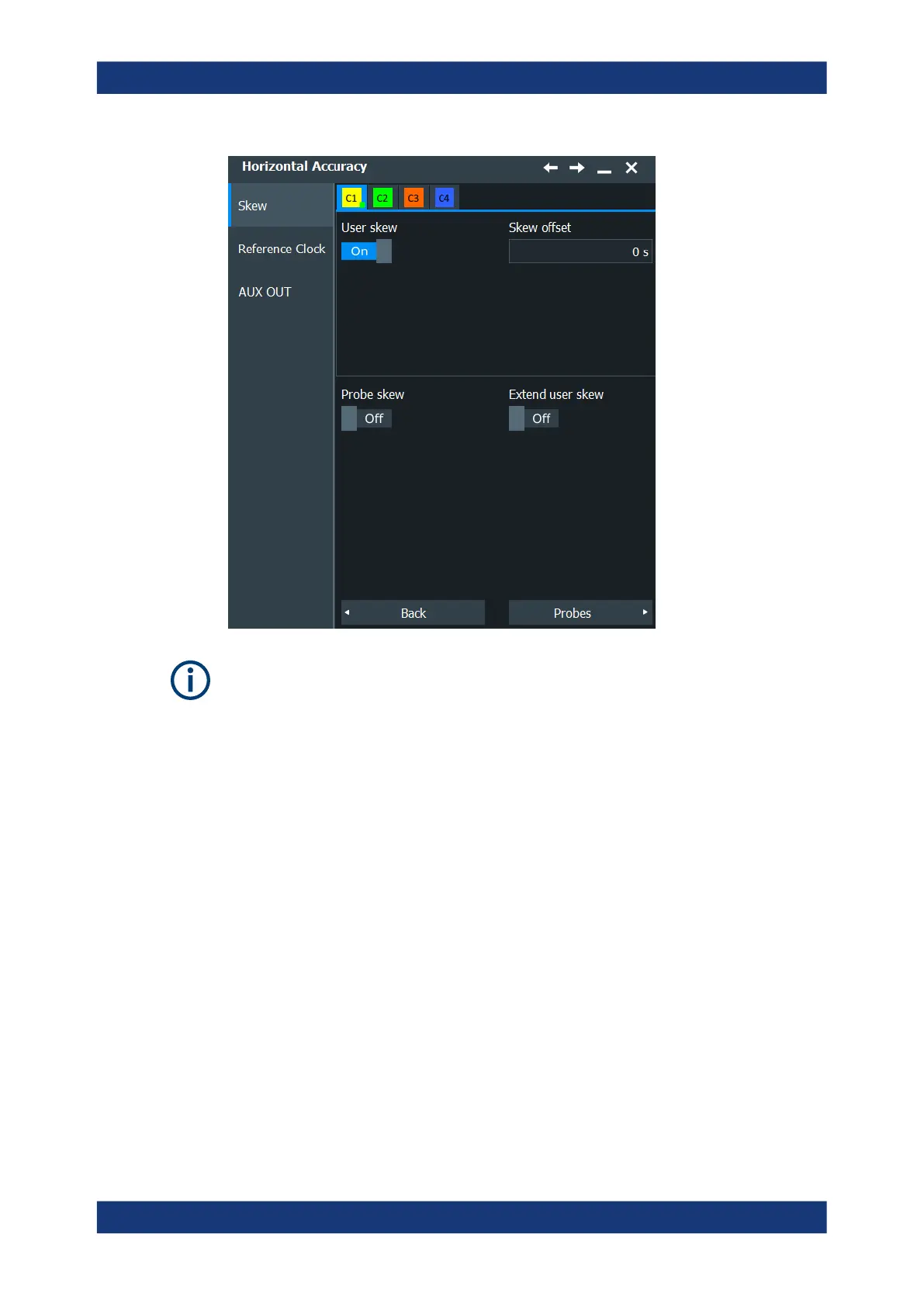

Make sure that the correct channel tab is selected.
User skew
If enabled, the "Skew offset" value is used for compensation.
Remote command:
CHANnel<m>:SKEW:MANual on page 1248
Skew offset
Sets a delay value, that is known from the circuit specifics but cannot be compensated
by the instrument automatically. It affects only the selected input channel.
The offset range and possible values depend on Extend user skew.
Remote command:
CHANnel<m>:SKEW:TIME on page 1248
Probe skew
Measures the skew of all connected active probes and includes it in the total skew off-
set.
"Use probe group delay ..."
If enabled, the skew of all connected active probes is measured, dis-
played, and used for deskewing. The setting affects all active chan-
nels.
