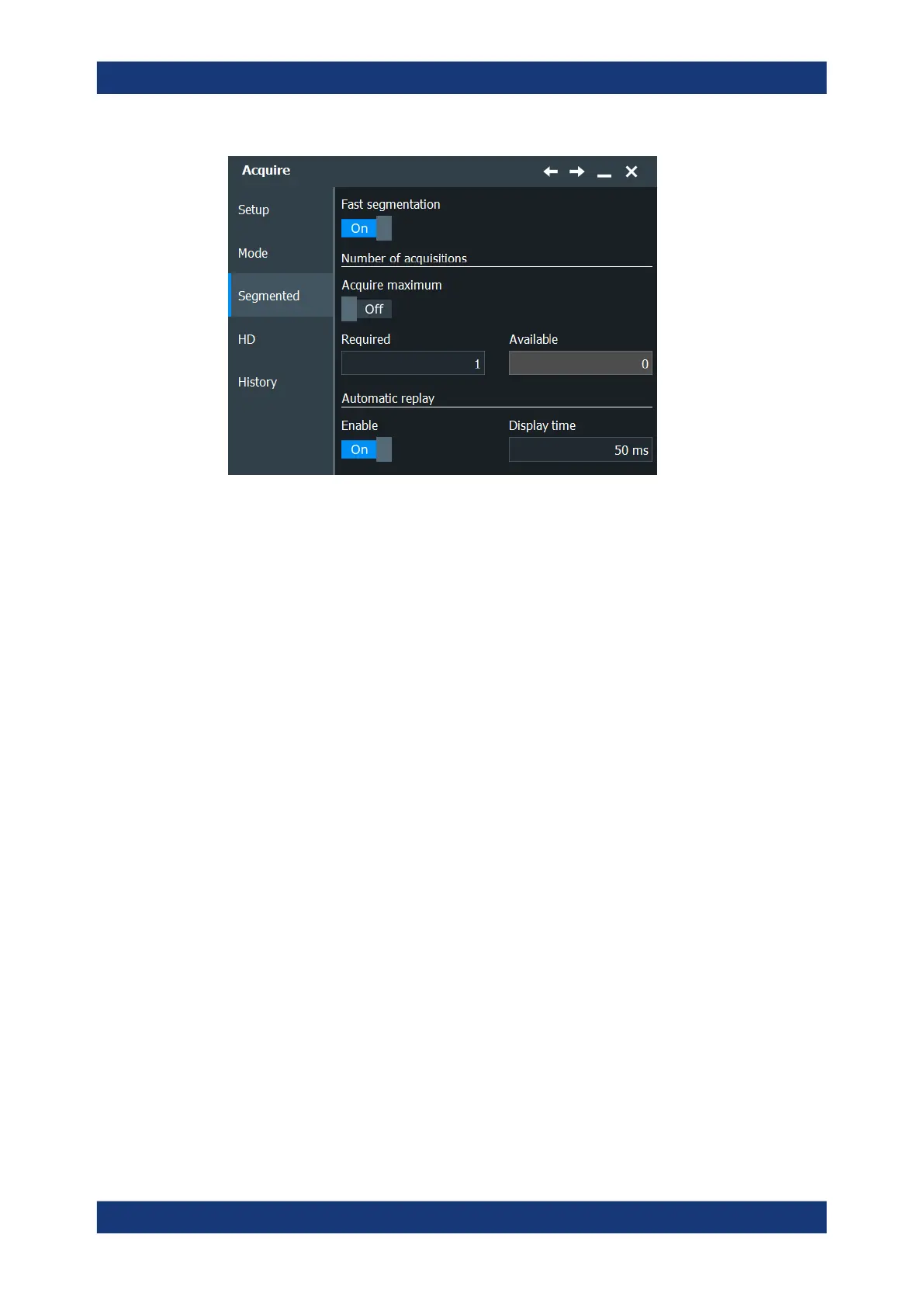

Fast segmentation
Switches the fast segmentation mode on and off.
Remote command:
ACQuire:SEGMented:STATe on page 1198
Number of acquisitions
You can define the number of acquisitions to be stored in a fast segmentation acquisi-
tion series:
●
Acquire the maximum number of acquisitions that can be stored in the sample
memory.
To acquire the maximum number, enable "Acquire maximum". The maximum num-
ber of acquisitions is shown in the "Required" field.
●
Acquire a given number of acquisitions.
Enter the number in the "Required" field.
The acquisition count (Average count (N-single count)) is always set to the required
number of acquisitions. Thus you can acquire exactly one fast segmentation acquisi-
tion series with [Single]. The [Run Stop] key works in the same way as [Single], it stops
acquisition when the series is completed.
You can stop the running acquisition before the series is completed.
The number of acquired waveforms is shown in "Available" and can be displayed with
"Show history".
Remote command:
ACQuire:SEGMented:MAX on page 1198
Enable automatic replay
If enabled, the instrument starts processing and displaying the data when the acquisi-
tion series is captured completely. Depending on the number of acquisitions, it can
take some time until the acquisition series is displayed. If the setting is disabled, the
instrument only captures the data and stores it in the sample memory.
