Triggers
R&S
®
RTP
236User Manual 1337.9952.02 ─ 12
Remote command:
TRIGger<m>:TV:POLarity on page 1297
Pulse type
Sets the type of the sync pulse, either bi-level sync pulse (used in SDTV signals), or tri-
level sync pulse (used in HDTV signals).

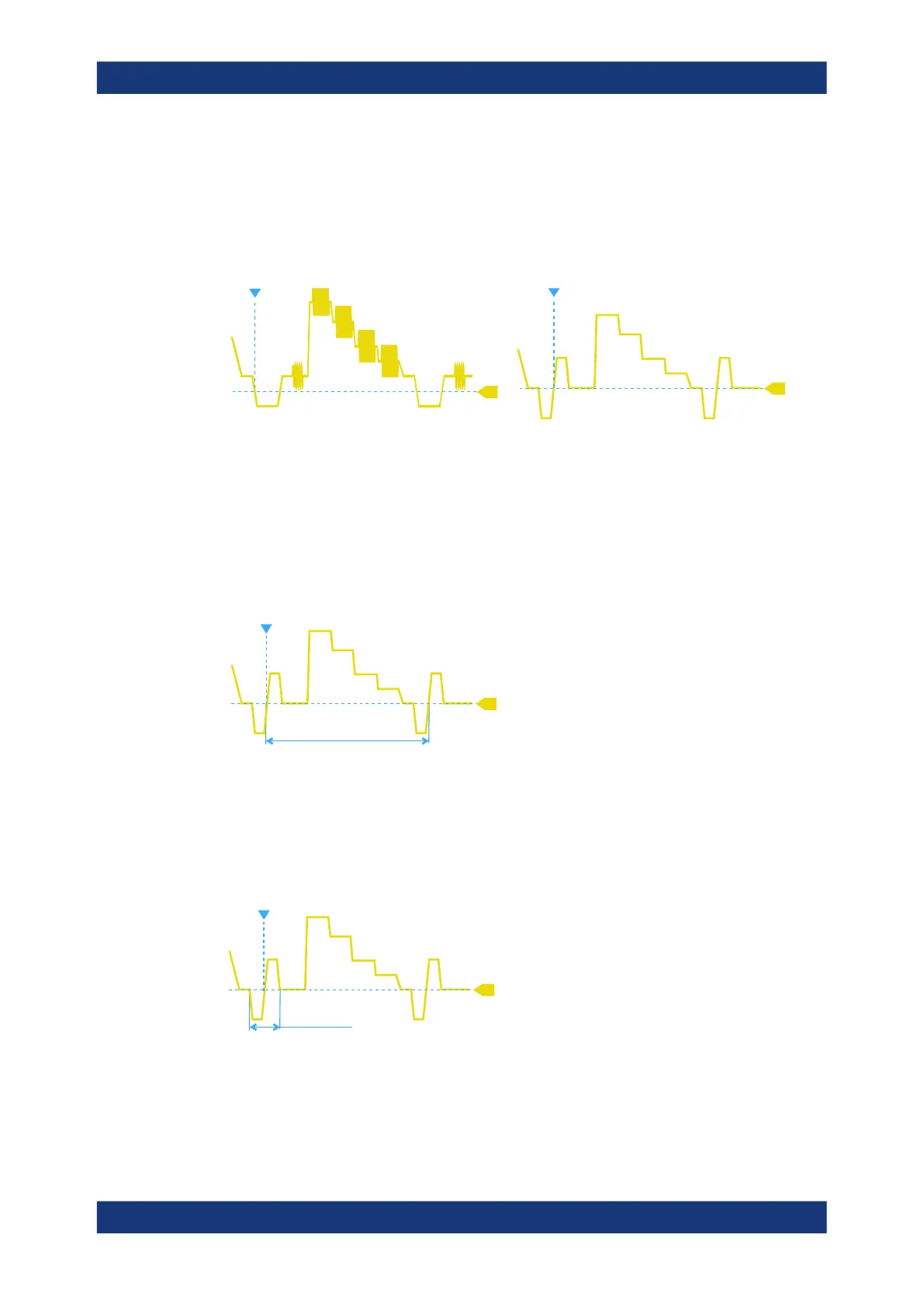

Figure 6-3: Bi-level (left) and tri-level (right) sync pulses
This setting is available for user-defined video signals if "Standard" is set to "Custom".
Remote command:
TRIGger<m>:TV:CUSTom:STYPe on page 1299
Line period
Sets the duration of a single video line, the time between two successive sync pulses.
Line period
This setting is available for user-defined video signals if "Standard" is set to "Custom".
Remote command:
TRIGger<m>:TV:CUSTom:LDURation on page 1299
Pulse width
Sets the width of the sync pulse.
Pulse width
This setting is available for user-defined video signals if "Standard" is set to "Custom".
Remote command:
TRIGger<m>:TV:CUSTom:SDURation on page 1299
